Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
9
SINAMICS S120 automation components
2
2.1 System overview
Because SINAMICS S120 can be used to solve sophisticated drive tasks for a very wide
spectrum of industrial applications, it is constructed as a modular system. From the large
number of matched components and functions, users combine just those units that best
match their requirements.

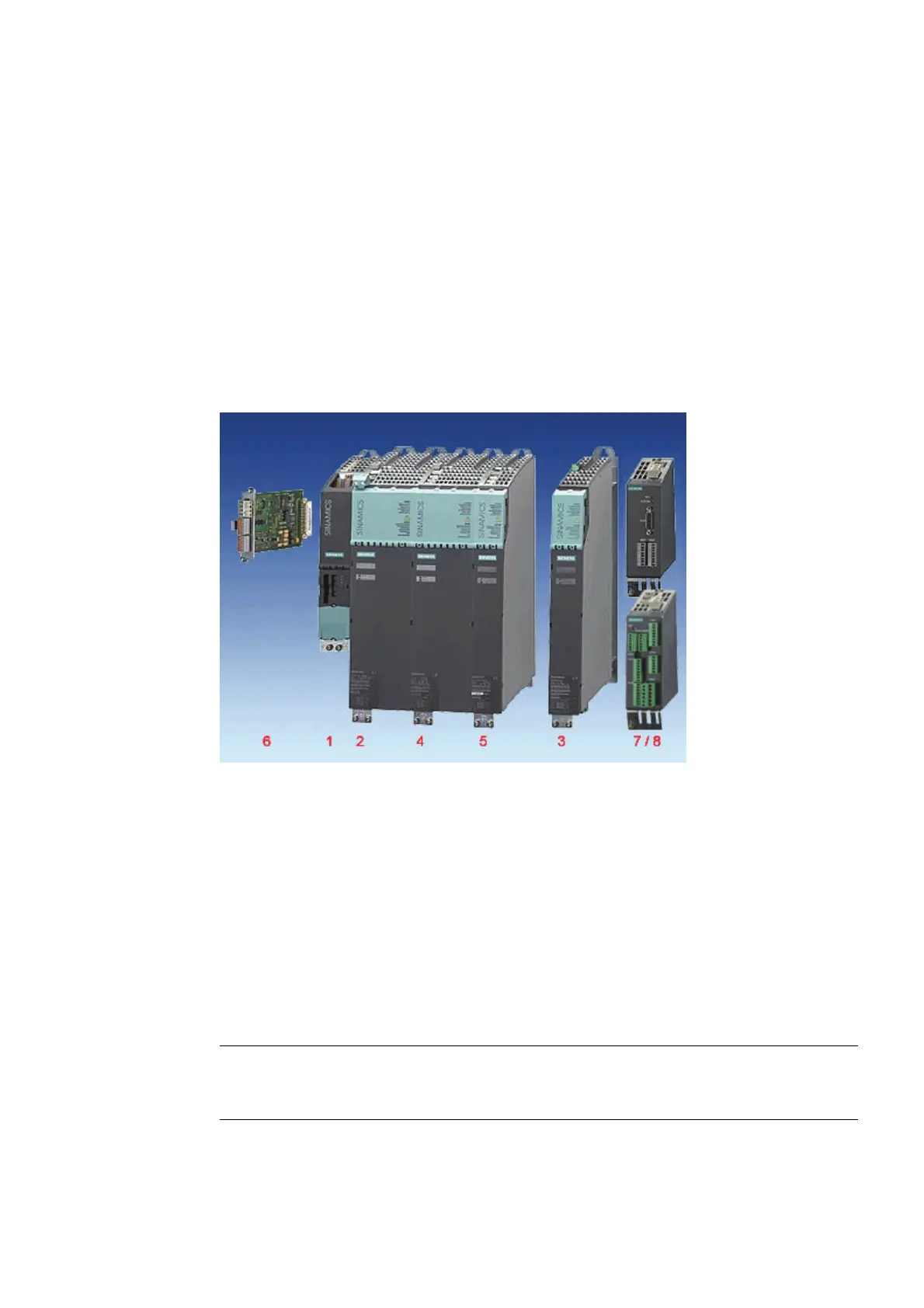

Legend:
1 Control unit 5 Double Motor Module
2 Active Line Module 6 Terminal Board
3 Smart Line Module 7 Sensor Module Cabinet
4 Single Motor Module 8 Terminal Module
2.2 Control unit
In a CU320 Control Unit, the communications, open- and closed-loop functions execute for
one or more Motor Modules and Active Line Modules. The Control Unit is designed for
multi-axis operation.
Note
Only the CU 320(-2 DP) and CU 310 Control Units are supported when using the
SINAMICS S120 drive system in connection with the technology CPU.
