Safety Integrated Functions in
SINAMICS Drive Systems
6.3 Support of SINAMICS Safety Integrated functions by the T(F)-CPU
Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
193

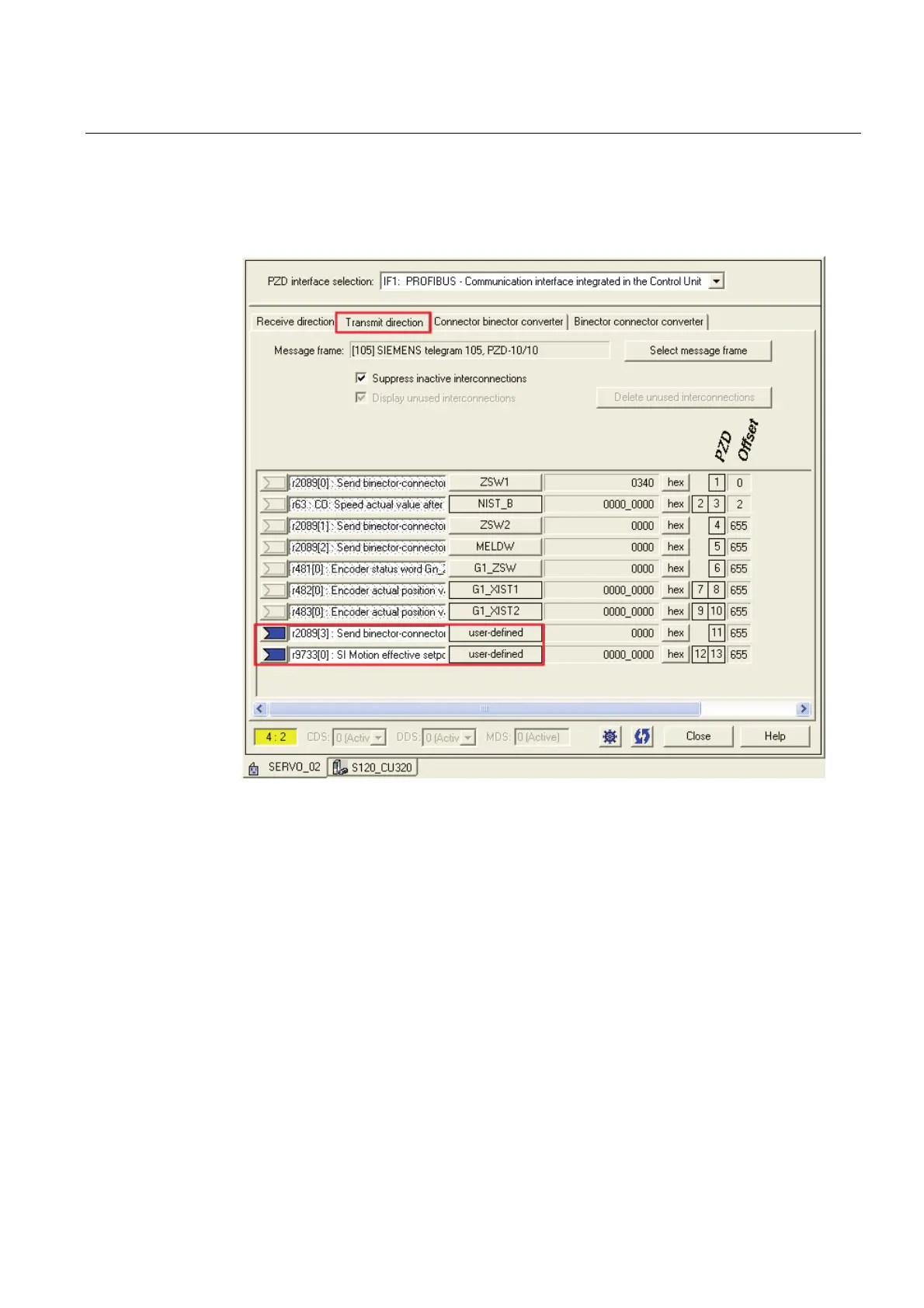

7. In the "Transmit direction" tab, assign the interconnected binector connector converter
and the r9733 of the message frame extension to one another. Free interconnections are
only shown when the "Suppress inactive interconnections" check mark is cleared.
See also
Extending the PROFIdrive message frame in S7T Config (Page 138)
