Wiring Diagram for Use Case 2.3 – Connecting One Nonequivalent Sensor Via Two Channels
Nonequivalently
One nonequivalent sensor is connected nonequivalently via two channels to two inputs of
the F-I/O module for each process signal (1oo2 evaluation).
The left channels on the F-module (DI0 through DI1) supply the wanted signals. If no faults
are detected, these signals will be available in the I/O area for inputs on the F-CPU.
Note
If the voltage is supplied to the sensor from the F-Switch PROFIsafe module, you must use
the internal sensor supply Vs1. Connection to Vs2 is not possible.
The wiring is carried out at the appropriate connection module.
/
/ 0
6
6
/ 0
9V 9V', ', ', ',
)6ZLWFK
7KHOHIWFKDQQHOVRQWKH)PRGXOHVXSSO\WKHZDQWHGVLJQDOV

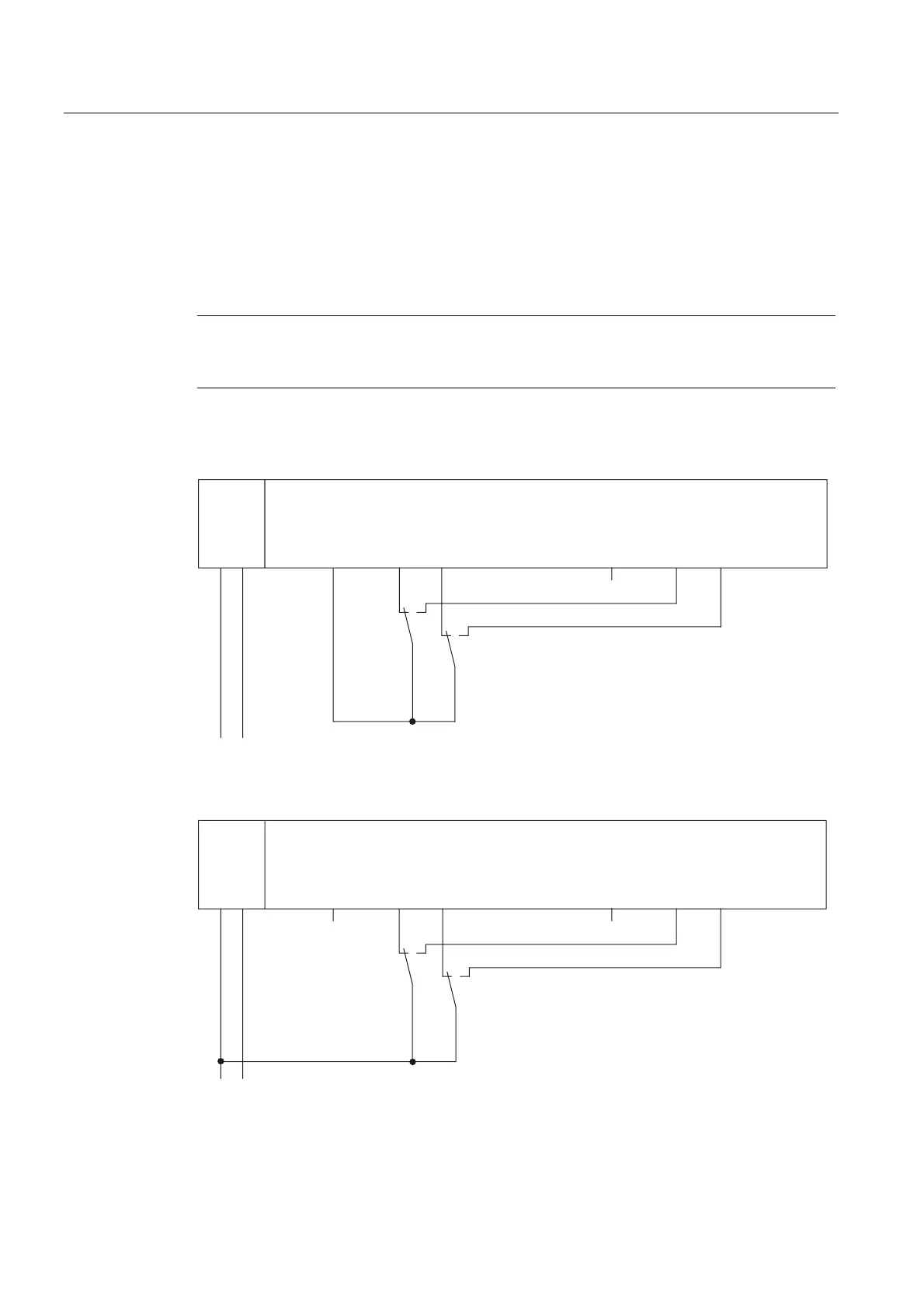

Figure 8-28 Wiring Diagram for F-Switch - One Nonequivalent Sensor Connected Via Two Channels
Nonequivalently, Internal Sensor Supply
/
/ 0
6
6
/ 0
9V 9V', ', ', ',
)6ZLWFK
7KHOHIWFKDQQHOVRQWKH)PRGXOHVXSSO\WKHZDQWHGVLJQDOV
Figure 8-29 Wiring Diagram for F-Switch - One Nonequivalent Sensor Connected Via Two Channels
Nonequivalently, External Sensor Supply
