Siemens SIMEAS R-PMU Maintenance Manual

Battery and Battery Pack
1.1 Battery on the CPU Module
64 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Remove the board by loosening these four screws (see Figure 1-8).

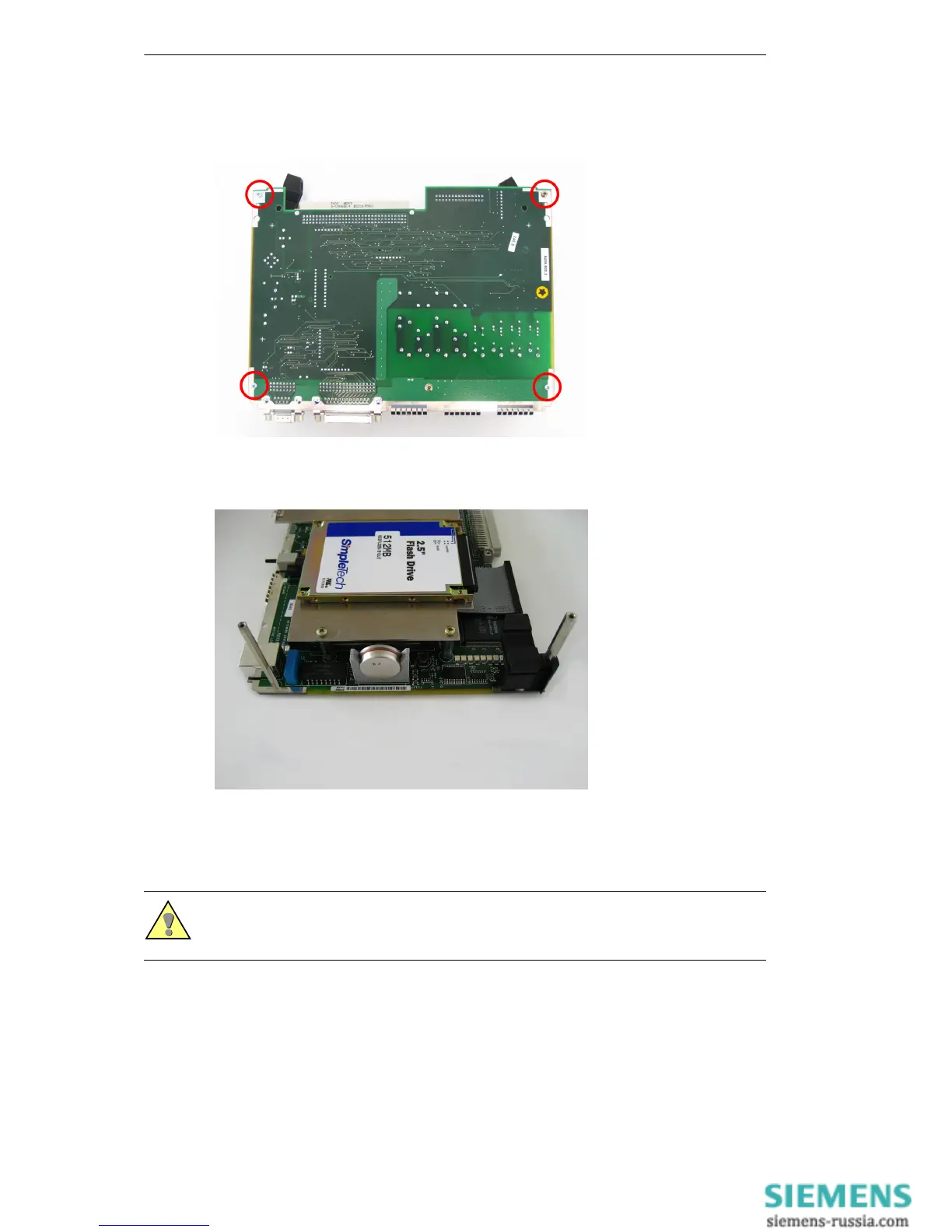

Figure 1-8 Fastening screws of the CPU module
The battery is now accessible (see Figure 1-9).
Figure 1-9 Battery on the CPU module

Replace the battery using a pair of plastic tweezers.
 Reassemble the device in reverse order.
Caution
Make sure that all components are correctly and fully inserted and that the locking levers are
safely engaged.
