Siemens SIMEAS R-PMU Maintenance Manual

Battery and Battery Pack
1.1 Battery on the CPU Module
63Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Detach the CPU board by pushing the black locking levers right until the levers unlatch from
the PCB. Flip both locking levers forward simultaneously (approx. 45°) until the levers snap
into the second position on the PCB (see Figure 1-6).

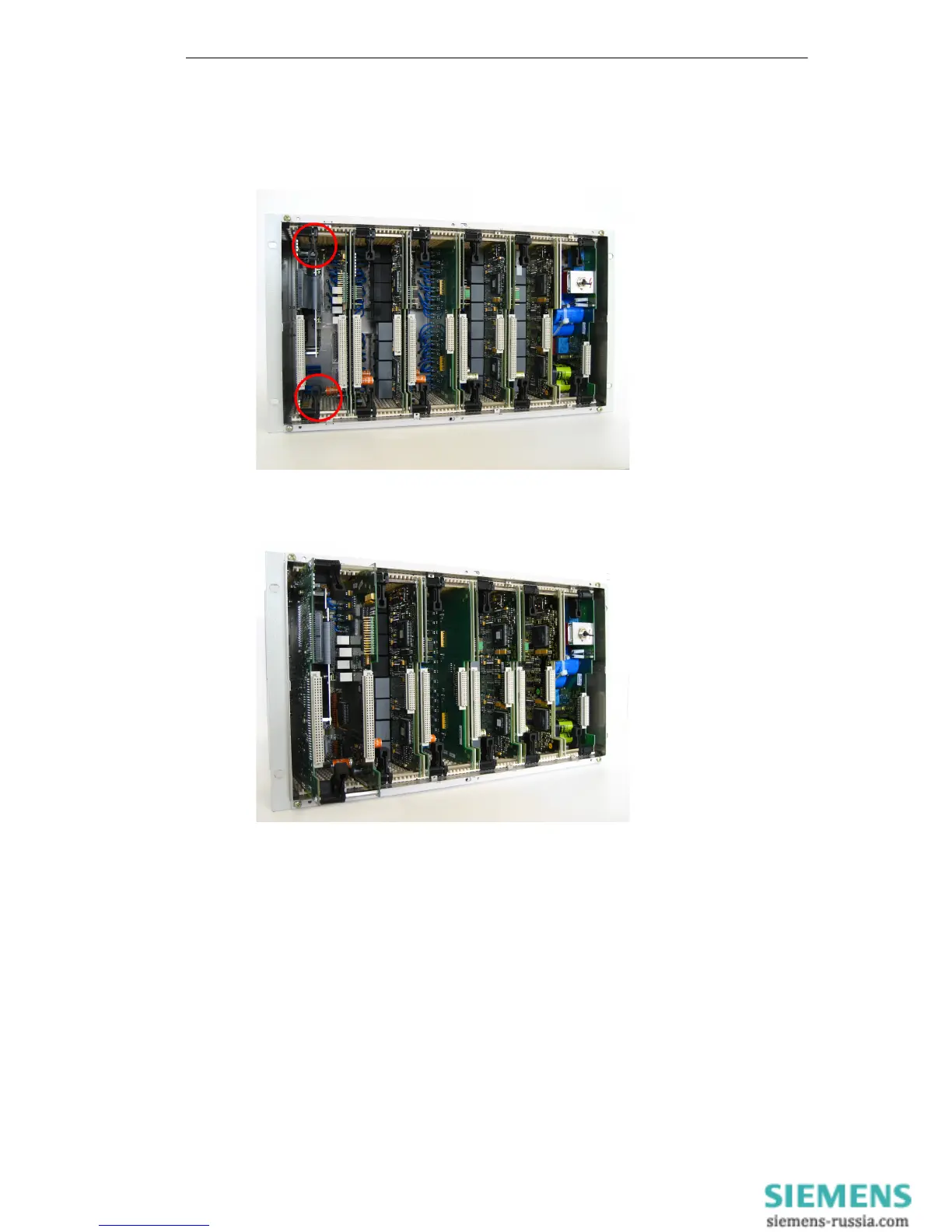

Figure 1-6 Deblocking the CPU module

Pull the CPU module forward (see Figure 1-7).
Figure 1-7 Pulling the CPU module out

Place the CPU module on a non-conducting mat.
