Fuse
2.2 Replacing the Miniature Fuse F1
78 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Pull the power supply module forward (see Figure 2-7).

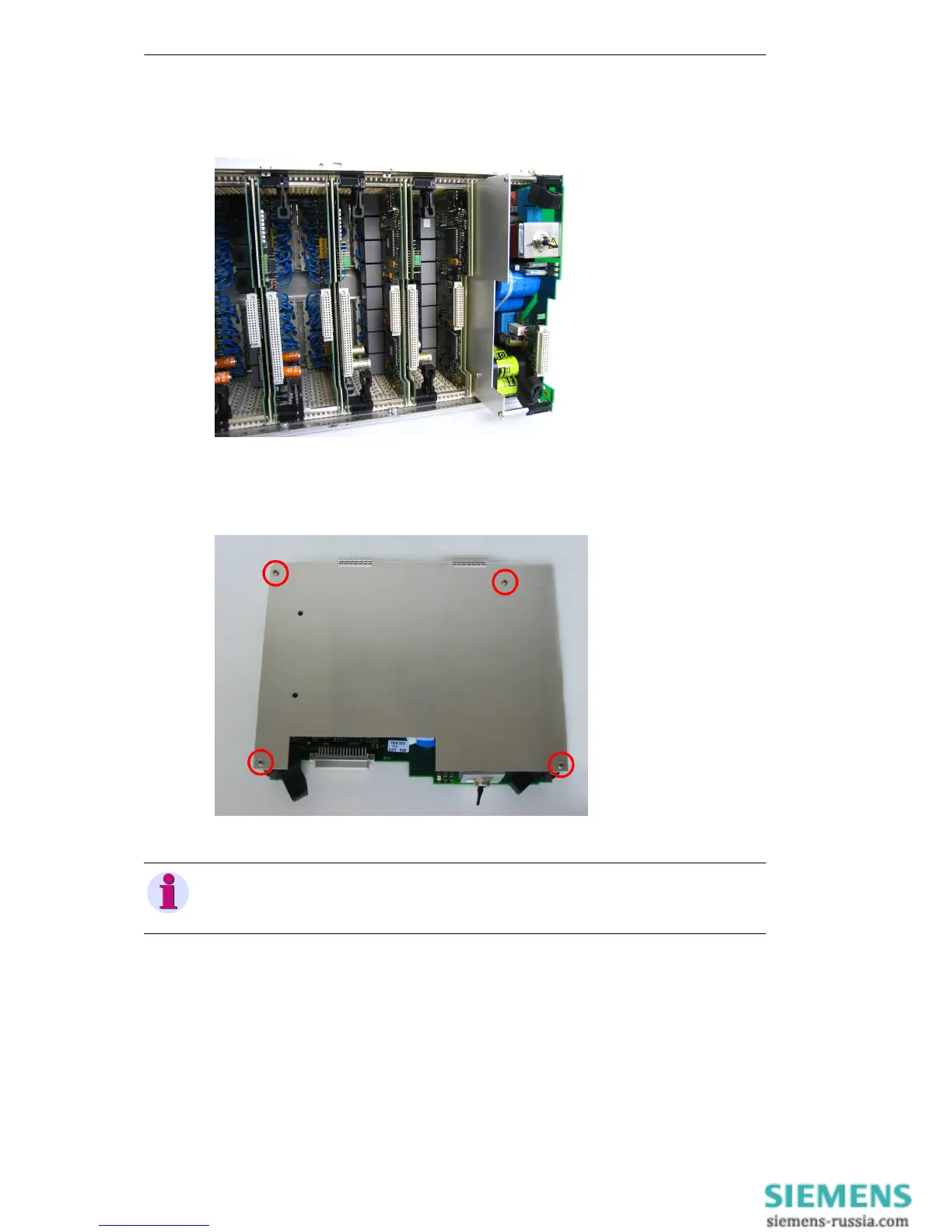

Figure 2-7 Pulling the power supply module out

Place the power supply with the plate facing up on a non-conducting mat.
 Remove the shielding cover by loosening these four screws (see Figure 2-8).
Figure 2-8 Fastening screws of the shielding cover
Note
Carefully swing the shielding cover towards the connection cables of the battery pack and put it
down.
