Fuse
2.2 Replacing the Miniature Fuse F1
77Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Remove the bus board from the modules and set it aside (see Figure 2-5).

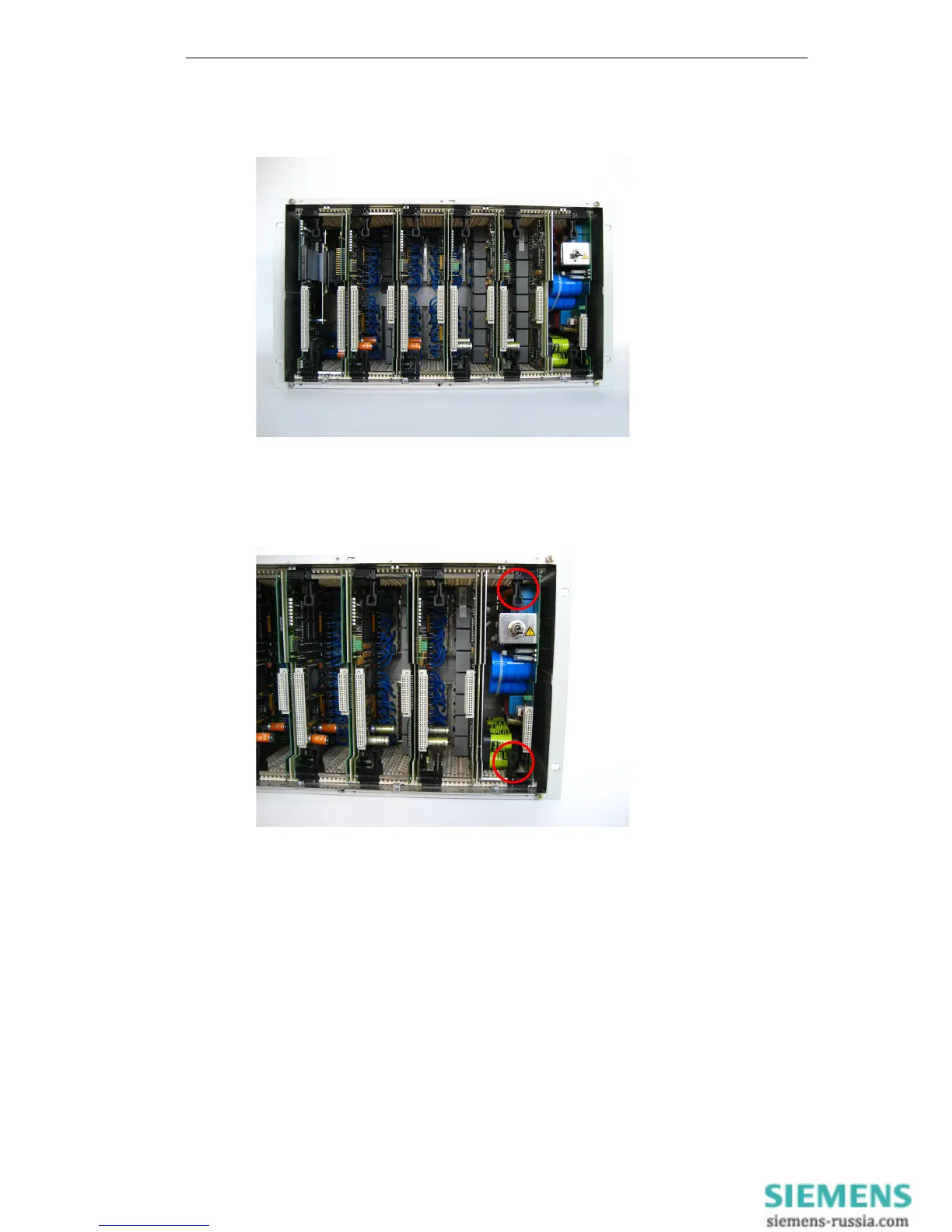

Figure 2-5 Internal view of device without bus board

Detach the power supply module by pushing the black locking levers left until the levers
unlatch from the PCB. Flip both locking levers forward simultaneously (approx. 45°) until the
levers snap into the second position on the PCB (see Figure 2-6).
Figure 2-6 Deblocking the power supply module
