Fuse
2.2 Replacing the Miniature Fuse F1
76 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009

Flip the front plate forward (see Figure 2-3).

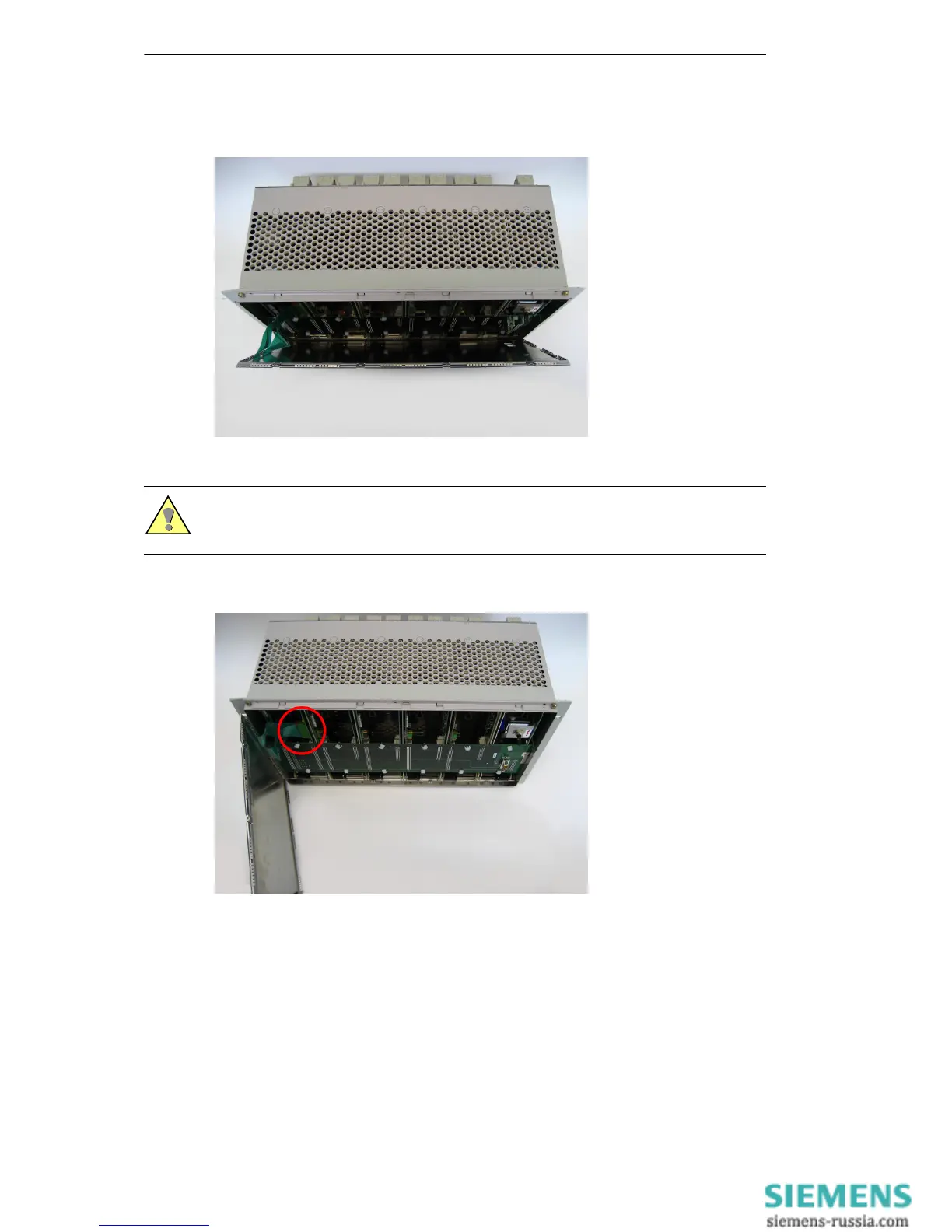

Figure 2-3 Open device

Carefully pull the plug connectors of the two ribbon cables out of the CPU board and set the
front plate aside (see Figure 2-4).
Figure 2-4 Connecting the ribbon cable
Caution
Do not strain the two ribbon cables that connect the front cover to the CPU board!
