Siemens Simodrive 1PH7 User Manual

Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-57
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-22 Induction motor 1PH7133-ND
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
12 1000 115 30 8000 30 0.076 90
0
2
4
6
8
10
12
14
16
18
20
22
24
26
0 1000 2000 3000 4000 5000 6000 7000 8000
S6–25% (50.0 A)
S6–40% (43.0 A)
S6–60% (36.0 A)
S1 (30.0 A)
continuous
briefly
0
20
40
60
80
100
120
140
160
180
200
220
240
0 1000 2000 3000 4000 5000 6000 7000 8000
M [Nm] P [kW]
n [RPM]
n [RPM]
S1 (115 Nm, 30.0 A)
S6–60% (143 Nm, 36.0 A)
S6–40% (177 Nm, 43.0 A)
S6–25% (210 Nm, 50.0 A)
continuous
briefly

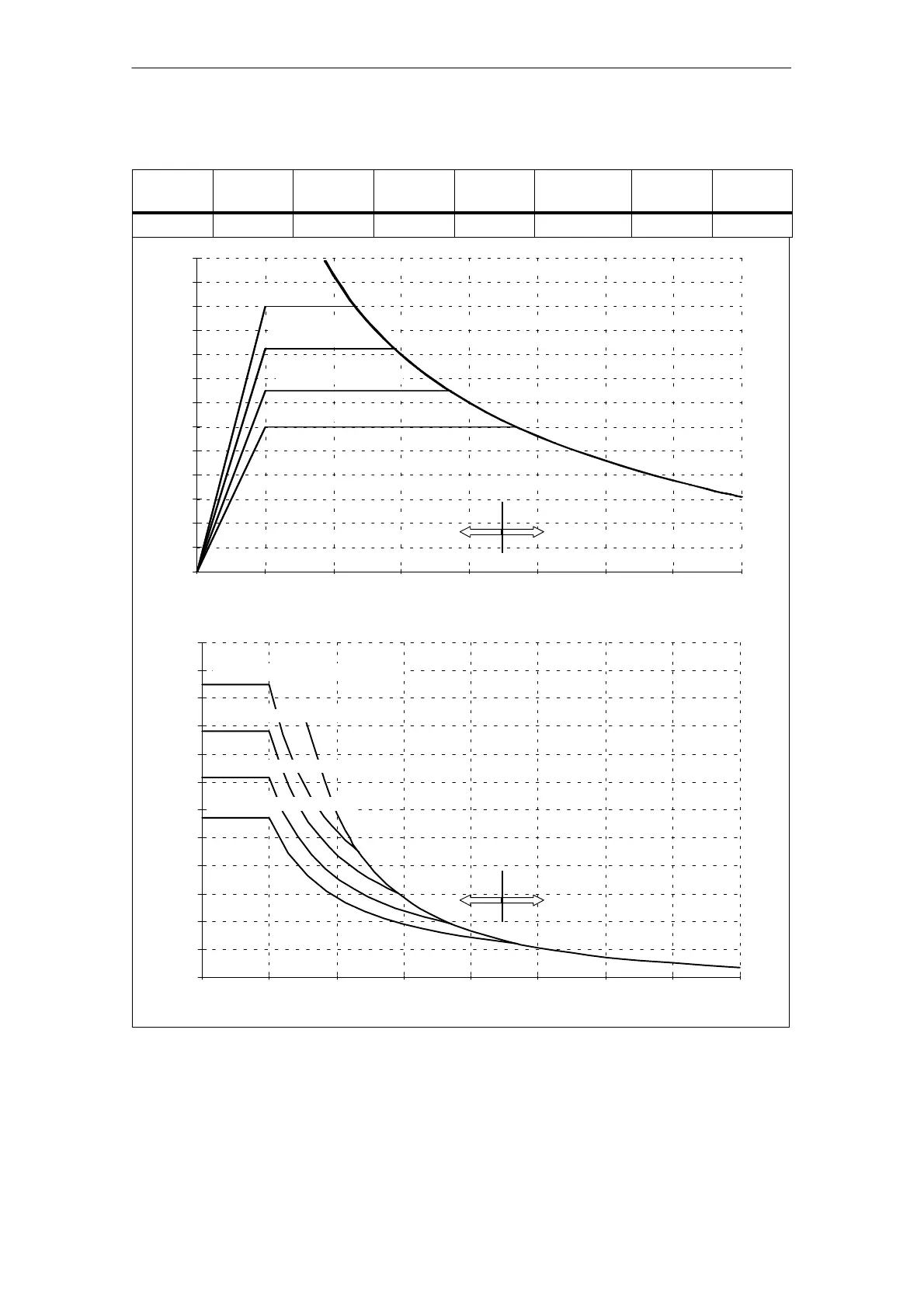

Fig. 2-19 1PH7133-ND
