Technical Data and Characteristics
2.2 Power-speed and torque-speed diagrams
1PH7/2-93
 Siemens AG, 2004. All rights reserved
Induction Motors, 1PH7 (APH7S) – 05.04 Edition
Table 2-58 Induction motor 1PH7186-ND
P
N
[kW]
n
N
[RPM]
M
N
[Nm]
I
N
[A]
n
max
[RPM]
T
th
[min]
J
[kgm
2
]
m
[kg]
51 1000 487 118 5000
7000
1)
40 0.67 460
0
10
20
30
40
50
60
70
80
0 1000 2000 3000 4000 5000 6000 7000
S6–40% (164.0 A)
S6–60% (141.0 A)
S1 (118.0 A)
P [kW]
n [RPM]
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
750
0 1000 2000 3000 4000 5000 6000 7000
n [RPM]
M [Nm]
continuous
briefly
2)
S1 (487 Nm, 118.0 A)
S6–60% (621 Nm, 141.0 A)
S6–40% (735 Nm, 164.0 A)
continuous
briefly
2)

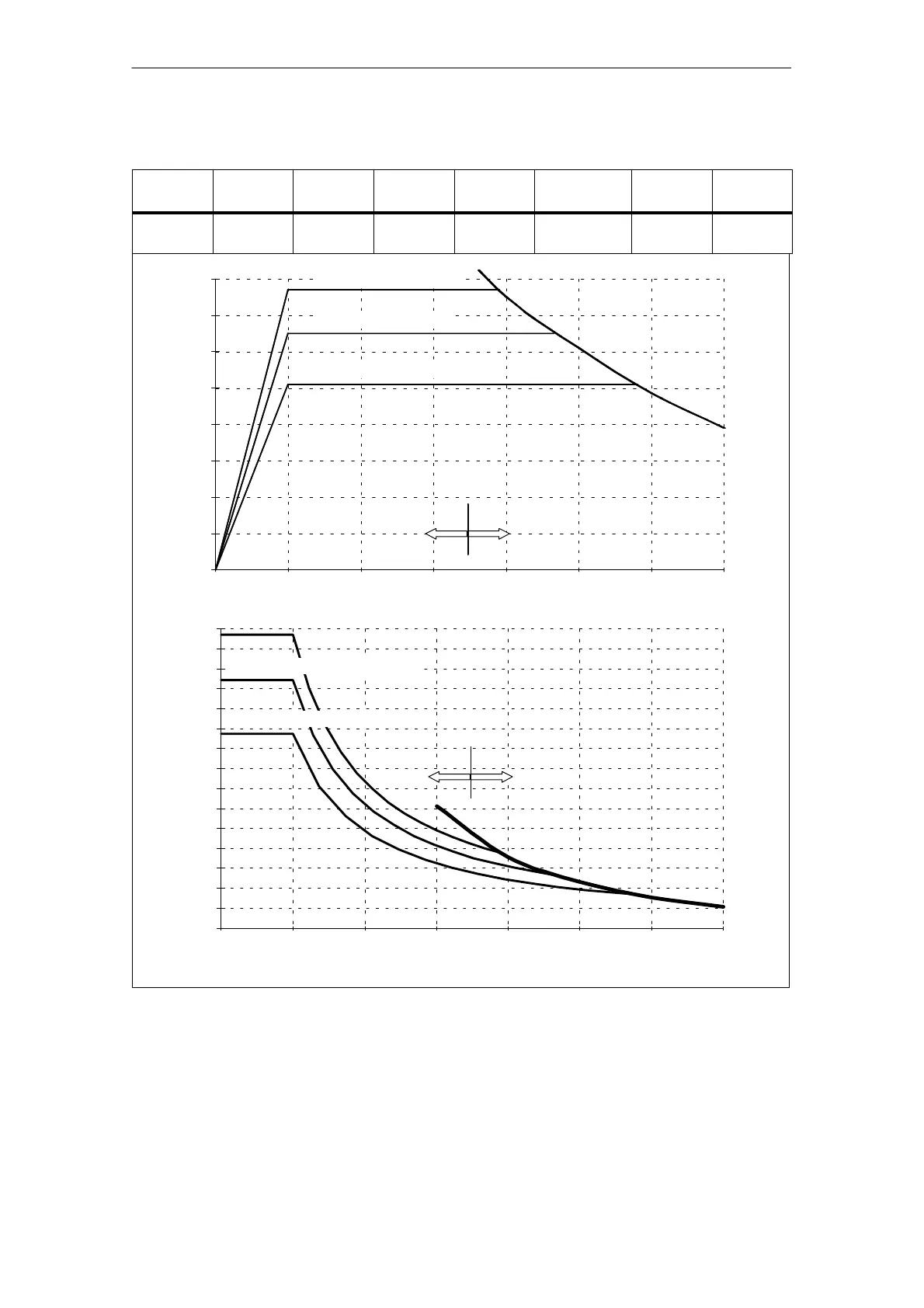

Fig. 2-55 1PH7186-ND
____________
1) Optional
2) This only applies for bearing versions for coupling/belt out-drive.
For bearing versions designed for increased cantilever forces, this limit is at n=3000 RPM
For bearing versions designed for increased maximum speeds, this limit is at n=4500 RPM
