Siemens Simodrive 611 - Page 133

1FT6 Synchronous Motors
Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1
3-91
Technical Data and Characteristics
Speed-torque diagrams

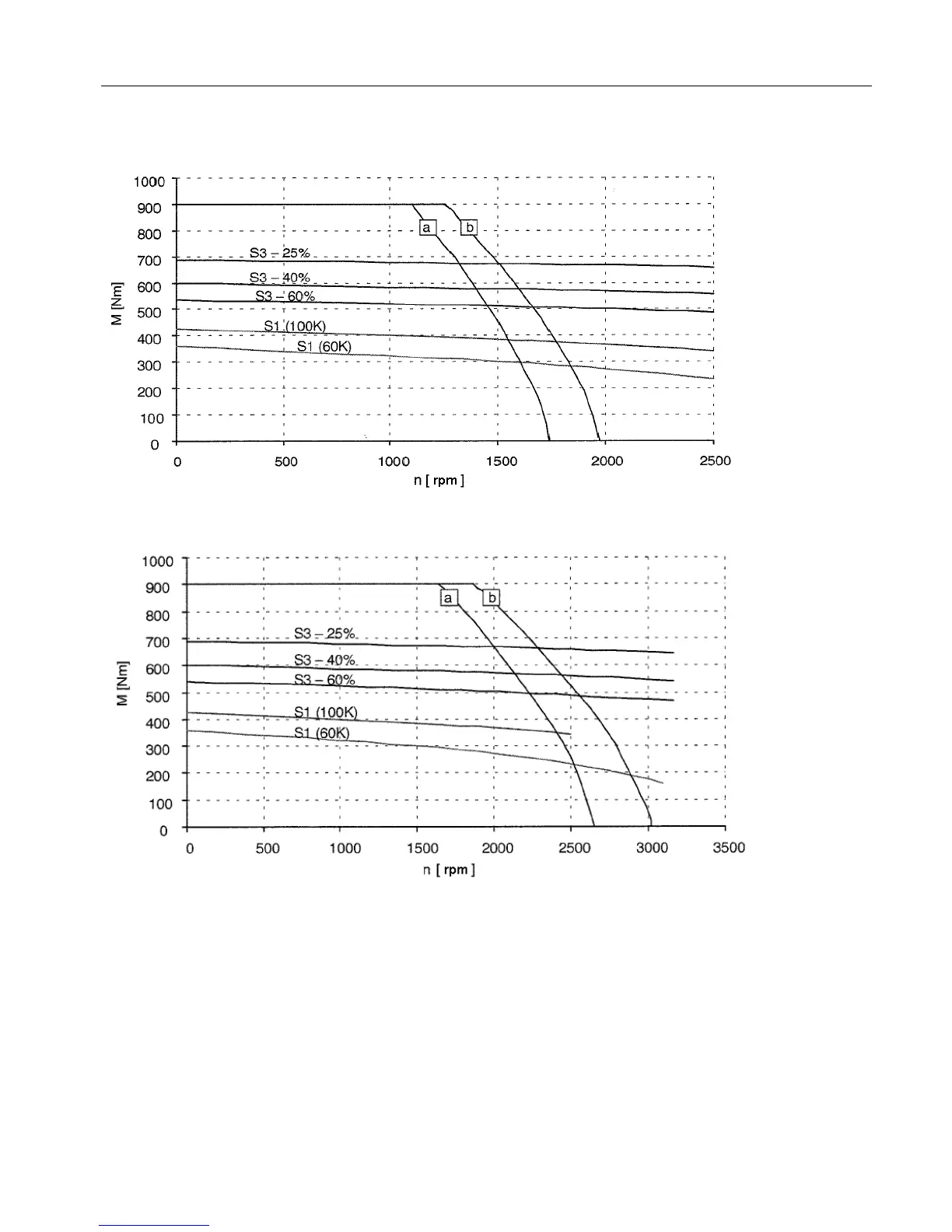

Fig. 3-75 Speed-torque diagram 1FT6163-8SB7
Fig. 3-76 Speed-torque diagram 1FT6163-8SD7
[a] MASTERDRIVES MC, V
DC link
= 540 V (DC), V
Mot
= 340 V
rms
[b] MASTERDRIVES MC (AFE), V
DC link
= 600 V (DC), V
mot
= 380 V
rms
