Motor Description
Cooling
1FT6 Synchronous Motors
1-22 Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1
1.6 Cooling
1.6.1 Cooling methods
The different cooling methods are defined in the Configuration Manual "General Section for
Synchronous Motors".
1.6.2 Forced ventilation
Degree of protection IP54 (acc. to EN 60529).
Degrees of protection IP67 and IP68 are not possible.
The hot discharged air may not be drawn in again.
Forced ventilation, SH 80 and SH 100
Air flow direction from NDE to DE.
If the air flow direction is reversed, this reduces the torque yield by approx. 20 %.
Mechanical changes to the motor with respect to naturally cooled versions:
• The power connector is about 12 mm higher.
• A sheet metal envelope is located over the motor frame from the non-drive end side. The
axial fan is mounted in this sheet metal envelope. There is a cut-out in the sheet metal
envelope at the connector positions. This means that the motor is only partially cooled by
the air flow (three-sided ventilation).
• The motor dimensions can be taken from the dimension drawings.
Caution
Forced ventilation cannot be used in the presence of flammable, corrosive, electrically con-
ductive or explosive dust.
Connection: Connector, Size 1, Order No.: 6FX2003–0CA10
Pre-fabricated connect-
ing cable:
Order No.: 6FX5002-5CA01-0
Supply voltage: 1-ph. 230/260 V AC, 50/60 Hz
Maximum current: 0.3 A

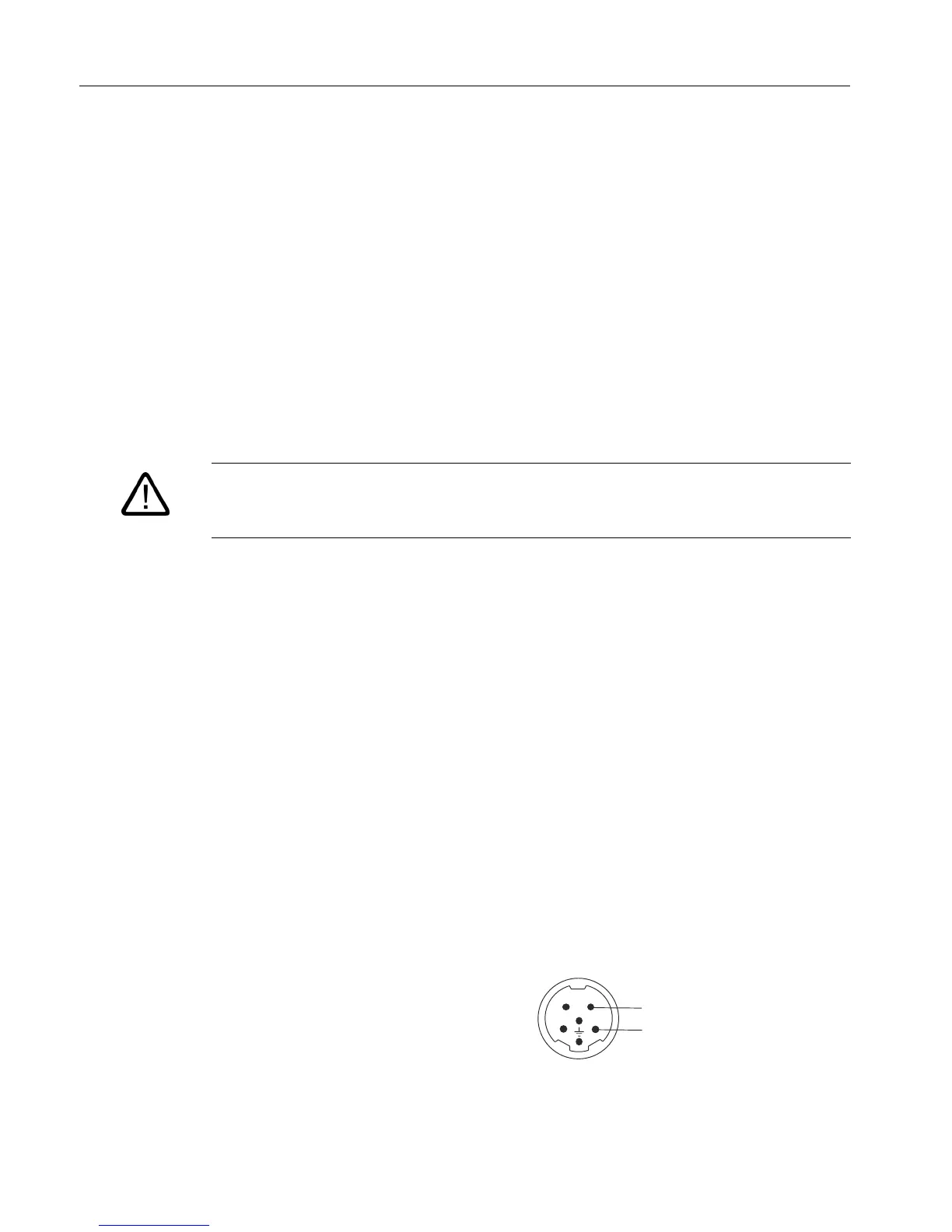

Connector assignment for fan connections
SH 80 and SH 100:
L1
N
1
2
4
5
6
