Siemens Simodrive 611 Configuration Manual

1FT6 Synchronous Motors
Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1
6-25
Dimension Drawings
1FT6 motors with planetary gearbox series SP+
6.5 1FT6 motors with planetary gearbox series SP+

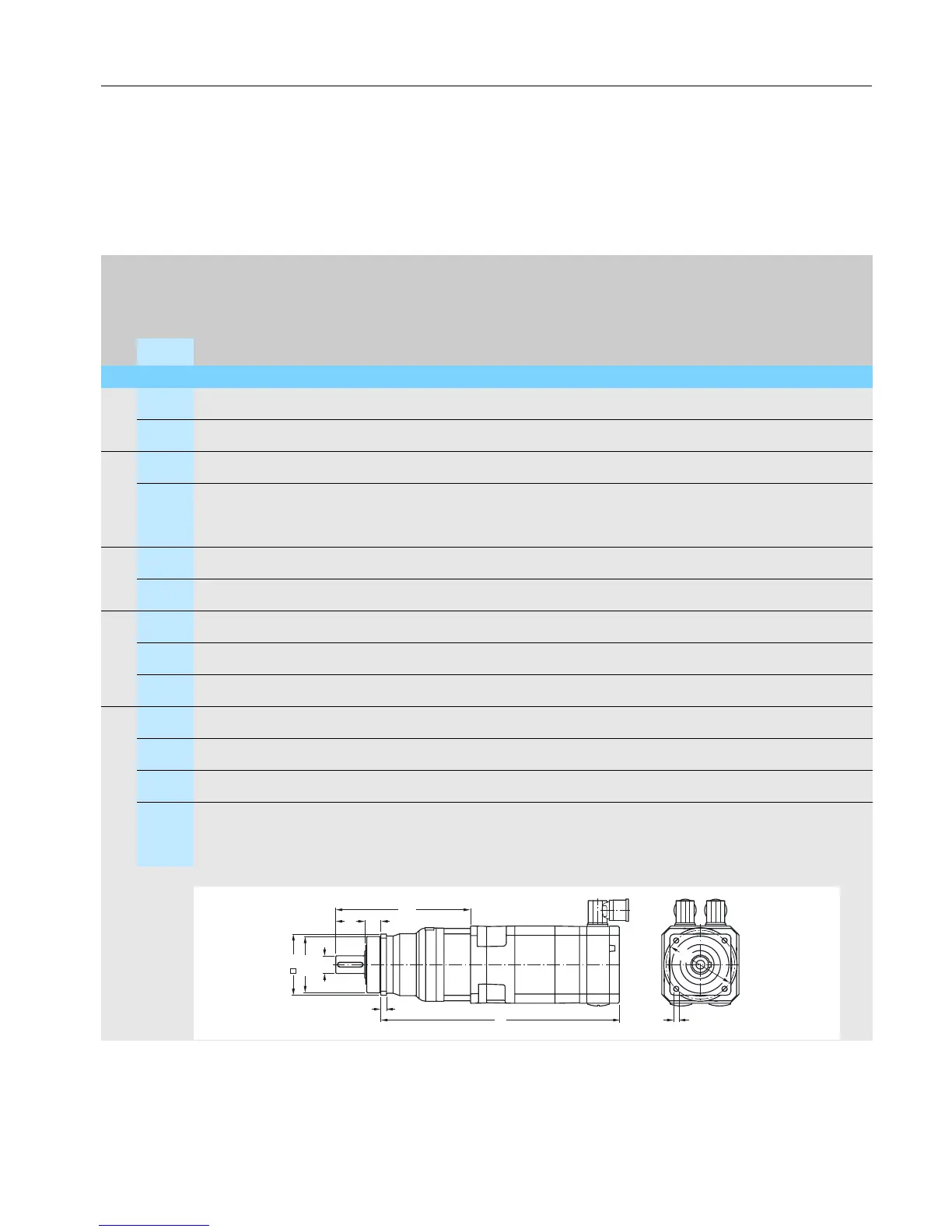

6.5.1 Dimension drawings 1FT6 with planetary gearbox SP+, single-stage
For motors Dimensions in mm (inches)
Resolver Incremental encoders sin/
cos
1 V
pp
/absolute encoders
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 C C C C
1FT6 with SP+ planetary gearbox, single-stage, IM B5 type, natural cooling, with connector, without/with brake
28 1FT6021 62 SP060S-MF1 60 16 5.5 68 138 28 20 6 283 308 283 308
(2.44) (2.36) (0.63) (0.22) (2.68) (5.44) (1.10) (0.79) (0.24) (11.15) (12.14) (11.15) (12.14)
1FT6024 62 SP060S-MF1 60 16 5.5 68 138 28 20 6 323 348 323 348
(2.44) (2.36) (0.63) (0.22) (2.68) (5.44) (1.10) (0.79) 0.24) (12.73) (13.71) (12.73) (13.71)
36 1FT6031 62 SP060S-MF1 60 16 5.5 68 142 28 20 6 274 294 314 334
(2.44) (2.36) (0.63) (0.22) (2.68) (5.59) (1.10) (0.79) (0.24) (10.80) (11.58) (12.37) (13.16)
1FT6034 62 SP060S-MF1 60 16 5.5 68 142 28 20 6 314 334 354 374
(2.44) (2.36) (0.63) (0.22) (2.68) (5.59) (1.10) (0.79) (0.24) (12.37) (13.16) (13.95) (14.74)
1FT6034 76 SP075S-MF1 70 22 6.6 85 164 36 20 7 328 348 368 388
(2.99) (2.76) (0.87) (0.26) (3.35) (6.46) (1.42) (0.79) (0.28) (12.92) (13.71) (14.50) (15.29)
48 1FT6041 76 SP075S-MF1 70 22 6.6 85 168 36 20 7 297 332 340 375
(2.99) (2.76) (0.87) (0.26) (3.35) (6.62) (1.42) (0.79) (0.28) (11.70) (13.08) (13.40) (14.78)
1FT6044 76 SP075S-MF1 70 22 6.6 85 168 36 20 7 347 382 390 425
(2.99) (2.76) (0.87) (0.26) (3.35) (6.62) (1.42) (0.79) (0.28) (13.67) (15.05) (15.37) (16.75)
63 1FT6061 101 SP100S-MF1 90 32 9 120 217 58 30 10 327 357 357 387
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (12.88) (14.07) (14.07) (15.25)
1FT6062 101 SP100S-MF1 90 32 9 120 217 58 30 10 352 382 382 412
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (13.87) (15.05) (15.05) (16.23)
1FT6064 101 SP100S-MF1 90 32 9 120 217 58 30 10 402 432 432 462
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (15.84) (17.02) (17.02) (18.20)
80 1FT6081 141 SP140S-MF1 130 40 11 165 283 82 30 12 392 419 392 419
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (15.44) (16.51) (15.44) (16.51)
1FT6082 141 SP140S-MF1 130 40 11 165 283 82 30 12 417 444 417 444
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (16.43) (17.49) (16.43) (17.49)
1FT6084 141 SP140S-MF1 130 40 11 165 283 82 30 12 467 513 467 513
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (18.40) (20.21) (18.40) (20.21)
1FT6086 141 SP140S-MF1 130 40 11 165 283 82 30 12 517 563 517 563
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (20.37) (22.18) (20.37) (22.18)
1FT6086 182 SP180S-MF1 160 55 13.5 215 310 82 30 15 544 590 544 590
(7.17) (6.30) (2.17) (0.53) (8.47) (12.21) (3.23) (1.18) (0.59) (21.43) (23.25) (21.43) (23.25)
1FT602.
1FT603.
1FT604.
1FT606.
1FT608.
L6
D2
D1
Ø
Ø
F4
L5
L7
K
G_DA65_XX_00242
D3
D4
L8
