Siemens Simodrive 611 Configuration Manual

Dimension Drawings
1FT6 motors with planetary gearbox series SP+
1FT6 Synchronous Motors
6-26 Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1
For motor Dimensions in mm (inches)
Resolver Incremental encoders sin/
cos
1 V
pp
/absolute encoders
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 C C C C

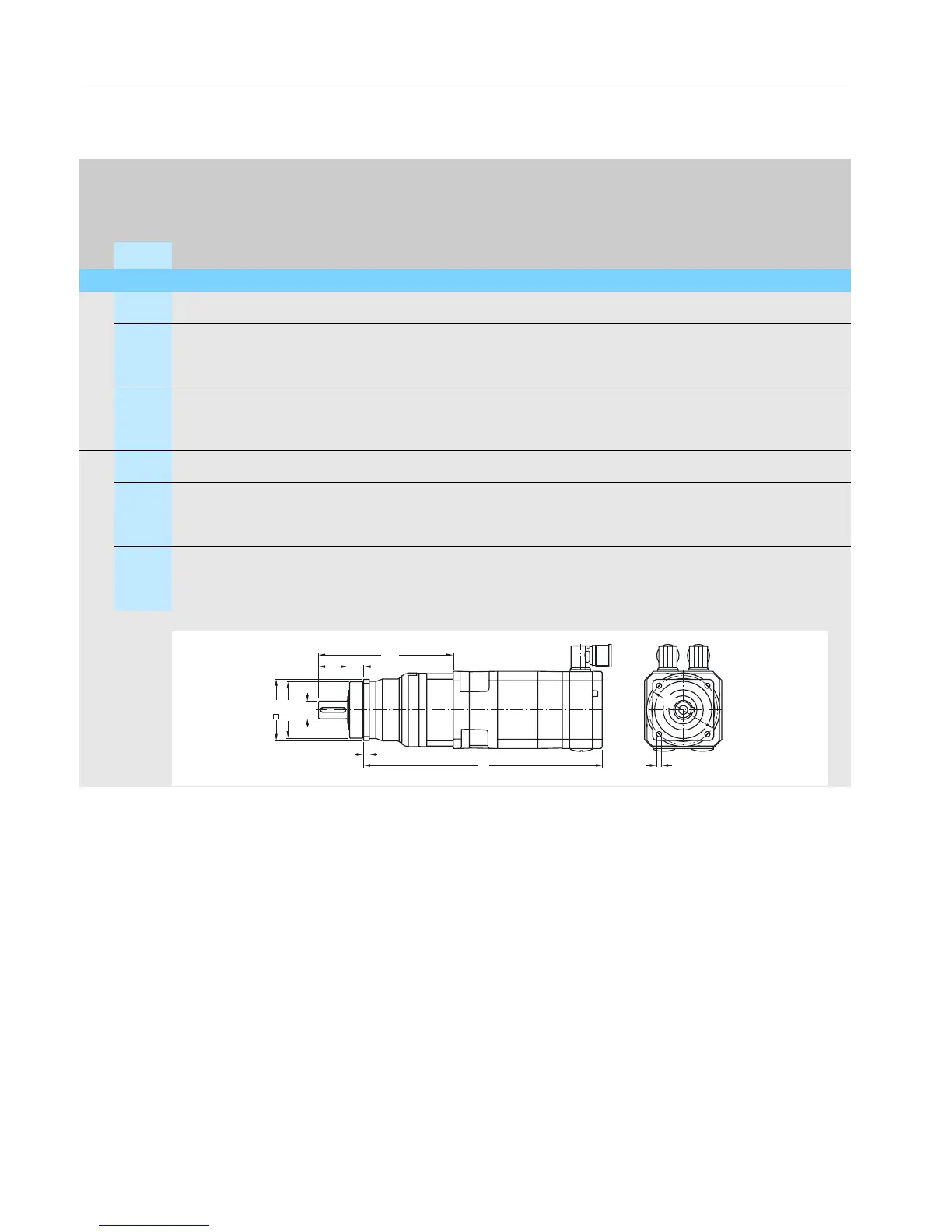

1FT6 with SP+ planetary gearbox, single-stage, IM B5 type, natural cooling, with connector, without/with brake
100 1FT6102 182 SP180S-MF1 160 55 13.5 215 310 82 30 15 493 539 493 539
(7.17) (6.30) (2.17) (0.53) (8.47) (12.21) (3.23) (1.18) (0.59) (19.42) (21.24) (19.42) (21.24)
1FT6105 182 SP180S-MF1 160 55 13.5 215 310 82 30 15 568 614 568 614
(7.17) (6.30) (2.17) (0.53) (8.47) (12.21) (3.23) (1.18) (0.59) (22.38) (24.19) (22.38) (24.19)
1FT6105 212 SP210-MF1 180 75 17 250 350 105 38 17 577 623 577 623
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (22.73) (24.55) (22.73) (24.55)
1FT6108 182 SP180S-MF1 160 55 13.5 215 310 82 30 15 668 714 668 714
(7.17) (6.30) (2.17) (0.53) (8.47) (12.21) (3.23) (1.18) (0.59) (26.32) (28.13) (26.32) (28.13)
1FT6108 212 SP210-MF1 180 75 17 250 350 105 38 17 677 723 677 723
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (26.67) (28.49) (26.67) (28.49)
132 1FT6132 212 SP210-MF1 180 75 17 250 350 105 38 17 630 680 630 680
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (24.82) (26.79) (24.82) (26.79)
1FT6134 212 SP210-MF1 180 75 17 250 350 105 38 17 680 730 680 730
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (26.79) (28.76) (26.79) (28.76)
1FT6134 242 SP240- MF1 200 85 17 290 436 130 40 20 739 789 739 789
(9.53) (7.88) (3.35) (0.67) (11.43) (17.18) (5.12) (1.58) (0.79) (29.12) (31.09) (29.12) (31.09)
1FT6136 212 SP210-MF1 180 75 17 250 350 105 38 17 730 780 730 780
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (28.76) (30.73) (28.76) (30.73)
1FT6136 242 SP240- MF1 200 85 17 290 436 130 40 20 789 839 789 839
(9.53) (7.88) (3.35) (0.67) (11.43) (17.18) (5.12) (1.58) (0.79) (31.09) (33.06) (31.09) (33.06)
1FT610.
1FT613.
L6
D2
D1
Ø
Ø
F4
L5
L7
K
G_DA65_XX_00242
D3
D4
L8
