Motor Components (Options)
Encoder
1FT6 Synchronous Motors
4-8 Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1

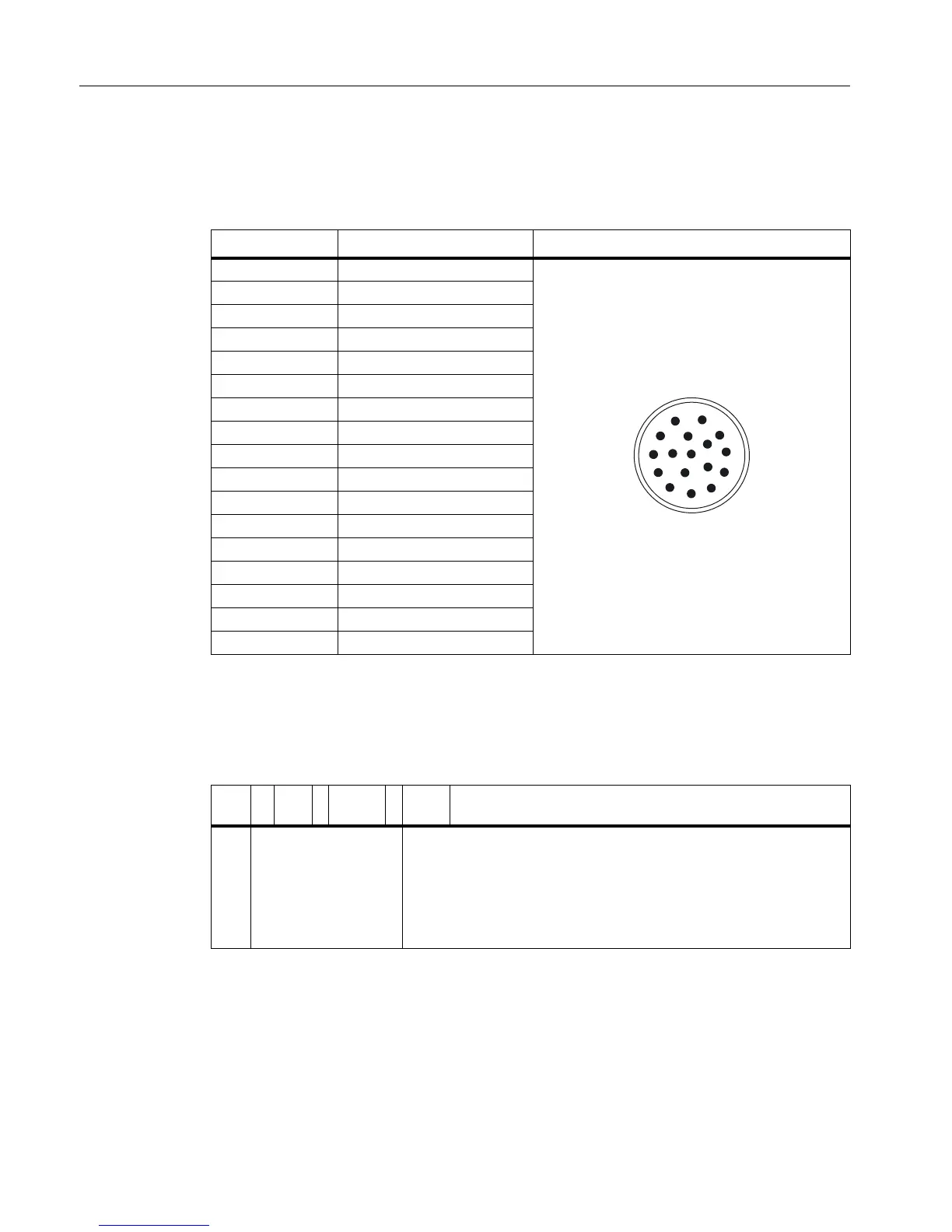

Connection assignment for 17-pin flange-mounted socket with pin contacts
Lines
For other technical data and length code, refer to Catalog, Chapter "MOTION-CONNECT
connection system"
Table 4-6 Connection assignment, 17-pin flange-mounted socket
PIN No. Signal
1A+
When viewing the plug-in side (pins)
2A–
3R+
4D–
5C+
6C–
7 M encoder
8+1R1
9–1R2
10 P encoder
11 B+
12 B–
13 R–
14 D+
15 0 V sense
16 5 V sense
17 not connected
4
5
6
7
8
9
10
11
1
2
3
14
17
15
16
12
13
Table 4-7 Prefabricated cable
6FX 002 - 2CA31 -
0
.
.
5 MOTION-
CONNECT®500
8 MOTION-
CONNECT®800
. . .
Length
Max. cable length for SIMODRIVE 611: 50 m
Max. cable length for MASTERDRIVES MC: 100 m
Max. cable length for SIMODRIVE 611: 50 m
Max. cable length for MASTERDRIVES MC: 100 m
