Siemens Simodrive 611 Configuration Manual

Motor Components (Options)
Encoder
1FT6 Synchronous Motors
4-12 Configuration Manual, (PFT6), 10.2005 Edition, 6SN1197-0AD02-0BP1

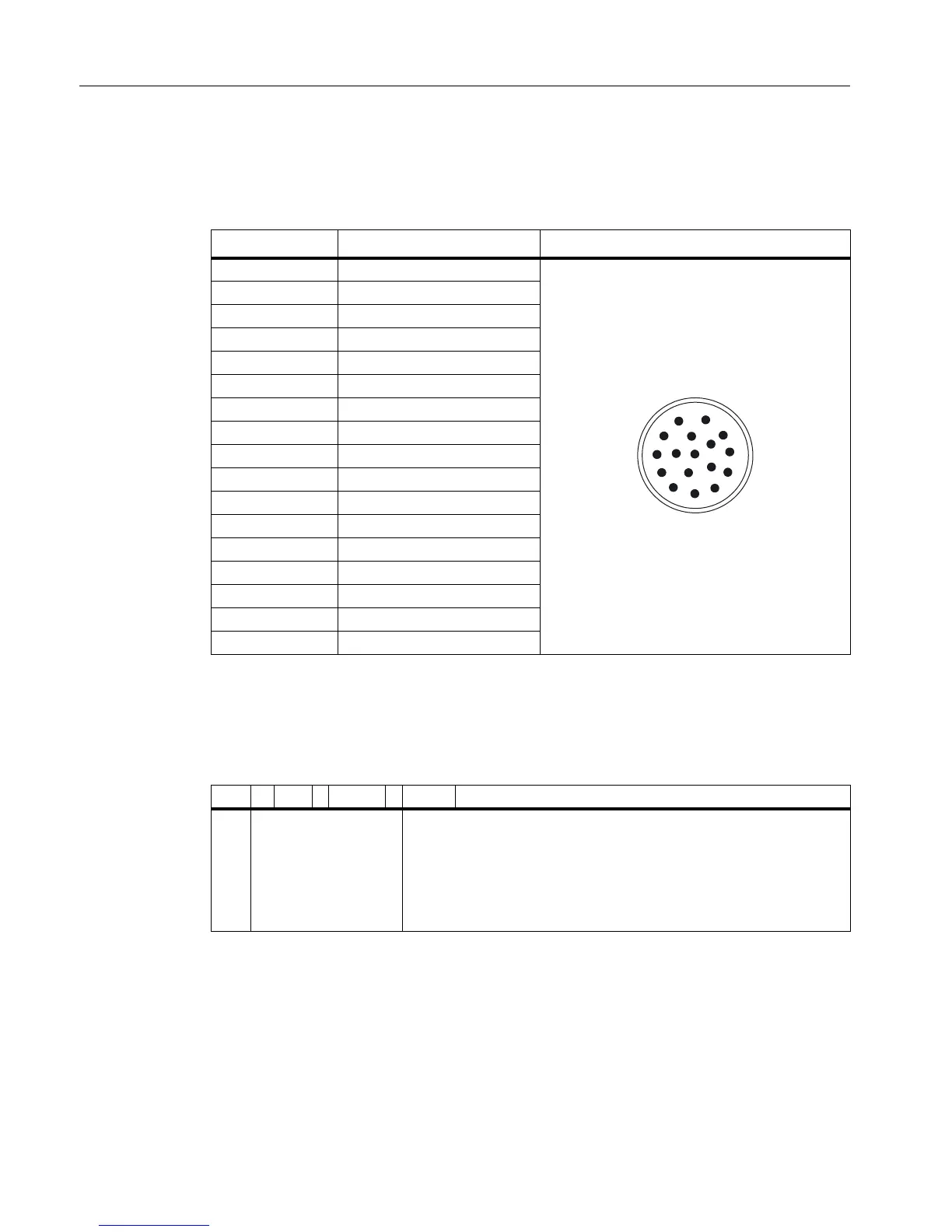

Connection assignment for 17-pin flange-mounted socket with pin contacts
Lines
For other technical data and length code, refer to Catalog, Chapter "MOTION-CONNECT
connection system"
Table 4-12 Connection assignment, 17-pin flange-mounted socket
PIN No. Signal
1A+
When viewing the plug-in side (pins)
2A–
3 +data
4 Not connected
5 +clock
6 Not connected
7 M encoder
8+1R1
9–1R2
10 P encoder
11 B+
12 B–
13 –data
14 –clock
15 0 V sense
16 5 V sense
17 Not connected
4
5
6
7
8
9
10
11
1
2
3
14
17
15
16
12
13
Table 4-13 Prefabricated cable
6FX  002 - 2EQ10 -  0
.
.
5 MOTION-CON-
NECT®500
8 MOTION-CON-
NECT®800
. . .
Length
Max. cable length for SIMODRIVE 611: 50 m
Max. cable length for MASTERDRIVES MC: 100 m
Max. cable length for SIMODRIVE 611: 50 m
Max. cable length for MASTERDRIVES MC: 100 m
