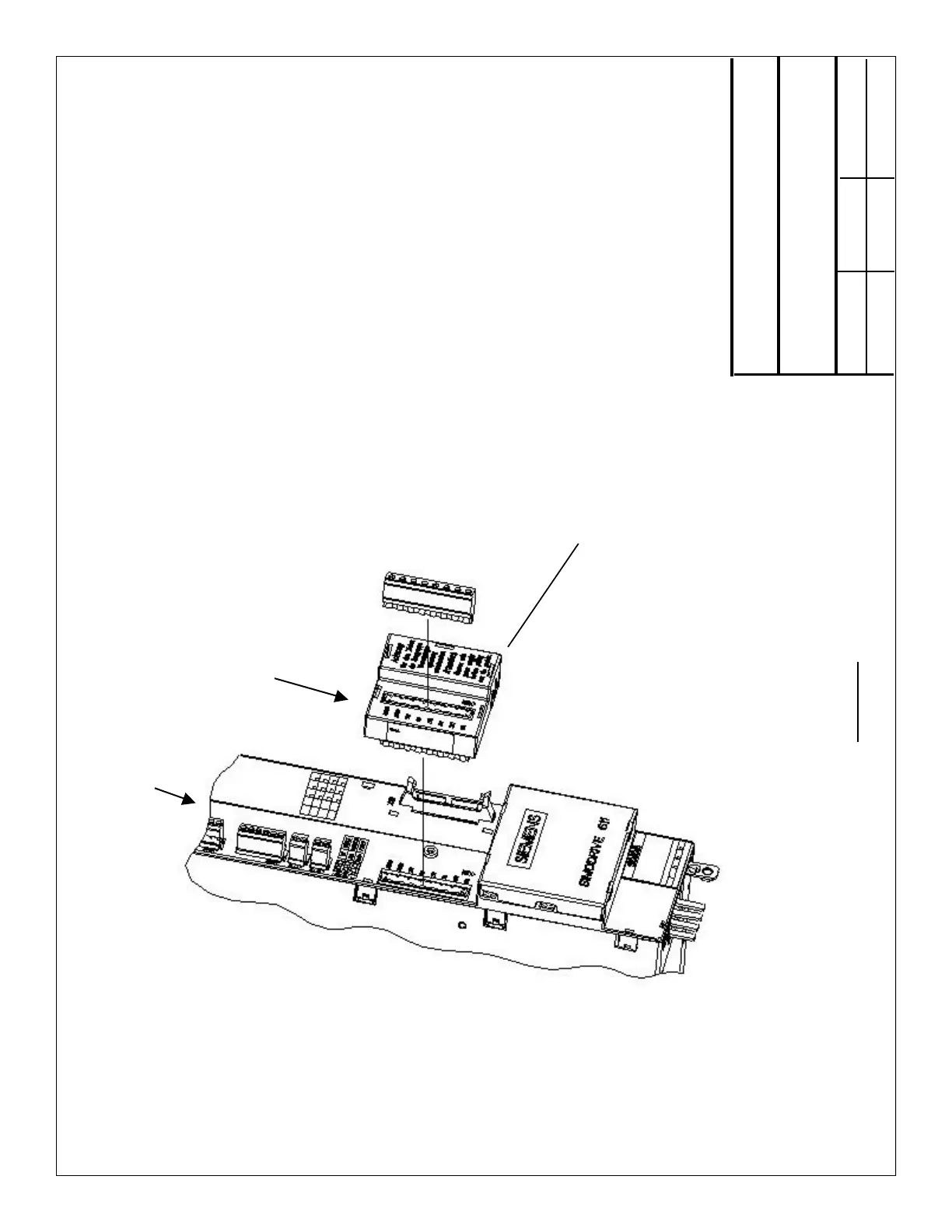

Drawing for ; 611-A , General Wiring for Power, Grounding and Module Interconnection
Date Revision Drawn by 8/13/98 Rev. A-5 de/sc/dk
Page 3 / 4
Overvoltage “Varistor” Module 6SN1111-0AB00-0AA0
Section C
The Overvoltage Module is plugged into X181 on the “NE” Module, excepr 5 kW. Interface connector X181 is fed through the Overvoltage Module pin for pin.
NE Module except 5 kW
