AL S
08.95
AL S/2-6
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)
Motor shaft
Dial gauge
Motor shaft
Dial gauge
Check: Concentricity
Check: Axial eccentricity
Motor
Motor

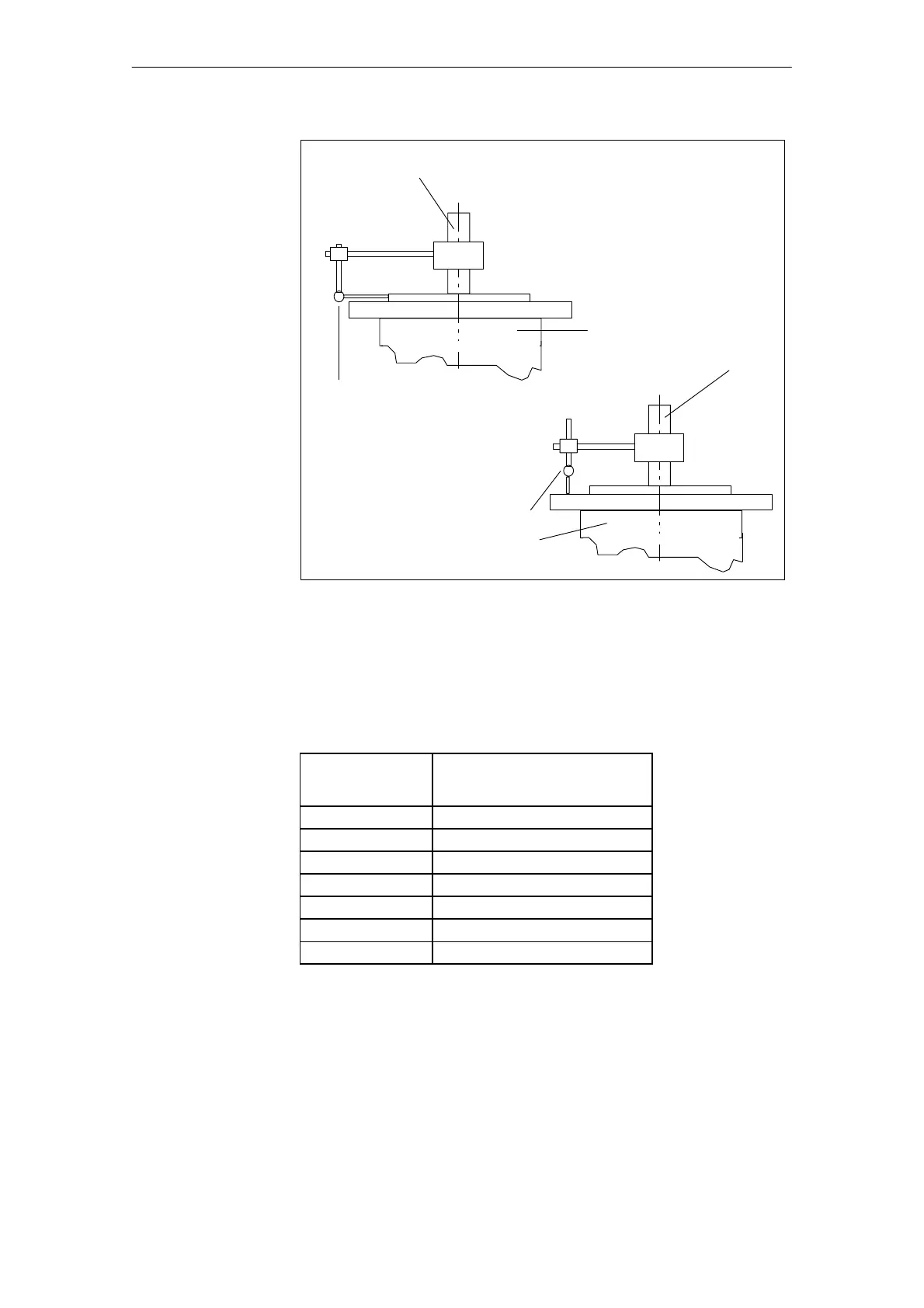

Fig. 2-4 Concentricity and axial eccentricity check
The noise values are valid when the motor is fed from the SIMODRIVE 611
PWM inverter for non–ventilated and separately–ventilated motors (with the
exception of shaft height 132), measured at 1 m.
Table 2-6 Noise
Shaft height
Sound pressure level under
no–load conditions dB (A) 0 to 6000
RPM
36 55
48 55
63 65
71 70
80 70
100 70
132 70
The specified values refer to the motor alone. The system vibration characteris-
tics, as a result of the mounting type, can increase these values at the motor.
The speeds of 1800 RPM and 3600 RPM and the associated limit values are
defined acc. to IEC 34–14. The speeds of 4500 RPM and 6000 RPM and the
specified values are defined by the motor manufacturer.
Noise
(acc. to DIN 45635)
Vibration severity
(acc. to IEC 34–14)
General information on AC servomotors
2.1 Definitions 01.98
