1FT5
08.95
1FT5/2-1
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)
Order designations

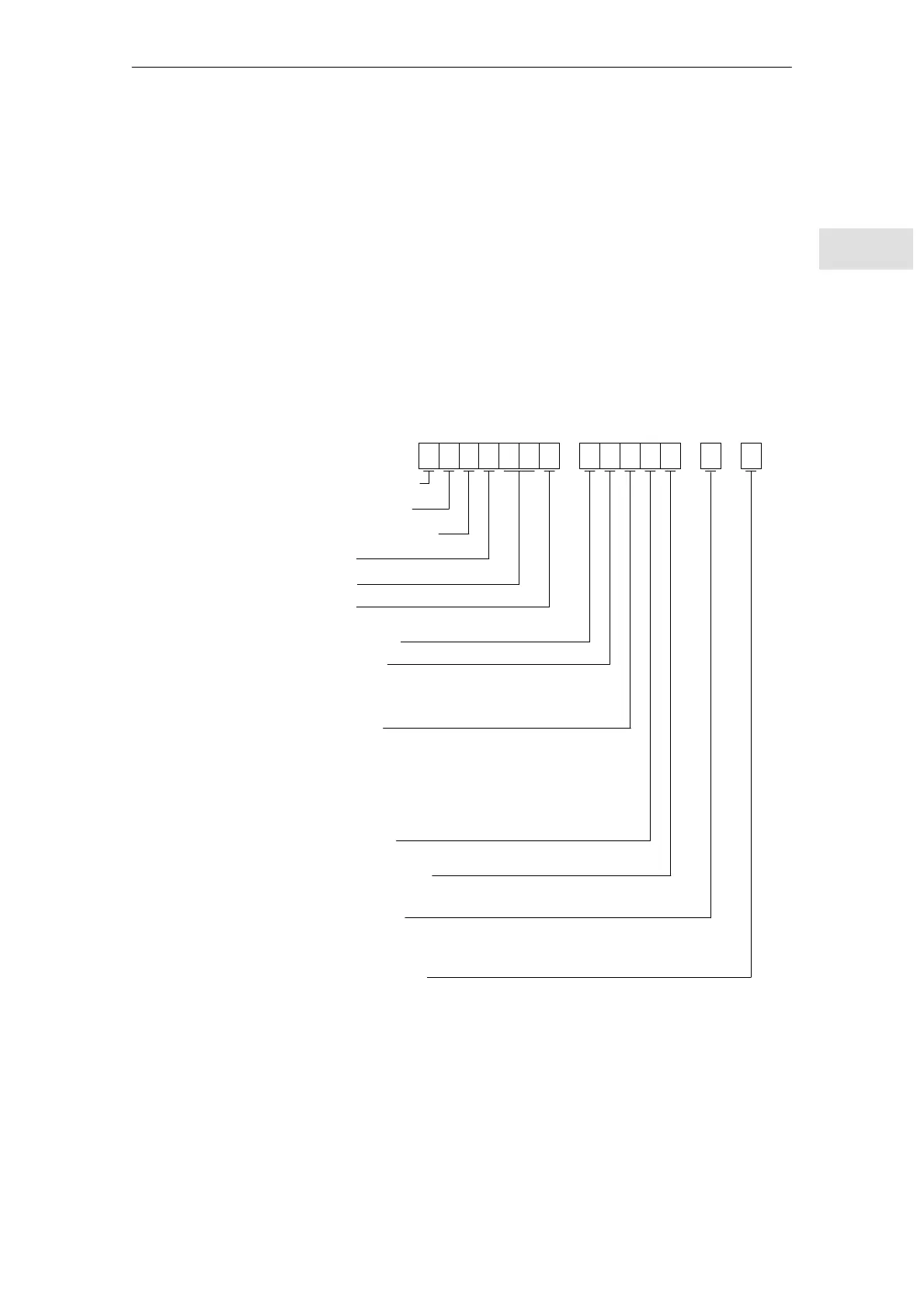

The order designation consists of a combination of numbers and letters. It is
subdivided into four hyphenated blocks.
The first block comprises seven positions and defines the motor type. Additional
design features are coded in the second block. The third and fourth blocks are
provided for additional data.
–
1
. 0
Electric motor
Synchronous motor
AC servomotor
Series
Frame size
Length
Principle
Cooling type
A = Non–ventilated
S = Force–ventilated
Rated speed
A = 1200 RPM
C = 2000 RPM
F = 3000 RPM
G = 4000 RPM
K = 6000 RPM
DC link voltage
7 = 600 V
Type of construction
1 = IM B5 (IM V1, IM V3)
Termination type
Power connector connection + bracket for
signal connection
Supplementary data
with codes
––
1 F T 5 . . . . 7 Z1
Order designation
(standard)
1FT5 AC servomotors
2 Order desi
nations
2
