Siemens SIMODRIVE 611A User Manual

1FT5
08.95
1FT5/3-39
 Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)
Cantilever force F
Q
at distance x from the shaft shoulder for a nominal bearing
lifetime of 20,000 hours.
400
800
1200
4020 x[mm]
F
Q
1600
030
N
n=1000 RPM
n=1500 RPM
n=2000 RPM
n=3000 RPM
n=6000 RPM
600
1000
1400
1800
2200
10
n=120 RPM
n=300 RPM
n=600 RPM
41Cr4V
Permissible axial force as a function of the cantilever force.
2500
F
Q AS
1000
2000
3000
0
0
1000 2000 N
F
A AS
3000
n=60 RPM
1000
2000
1500
500
1500
3500
N
600
300
120
6000
Cantilever force
1FT5062 to
1FT5066
Axial force
1FT5062 to
1FT5066
1FT5 AC servomotors

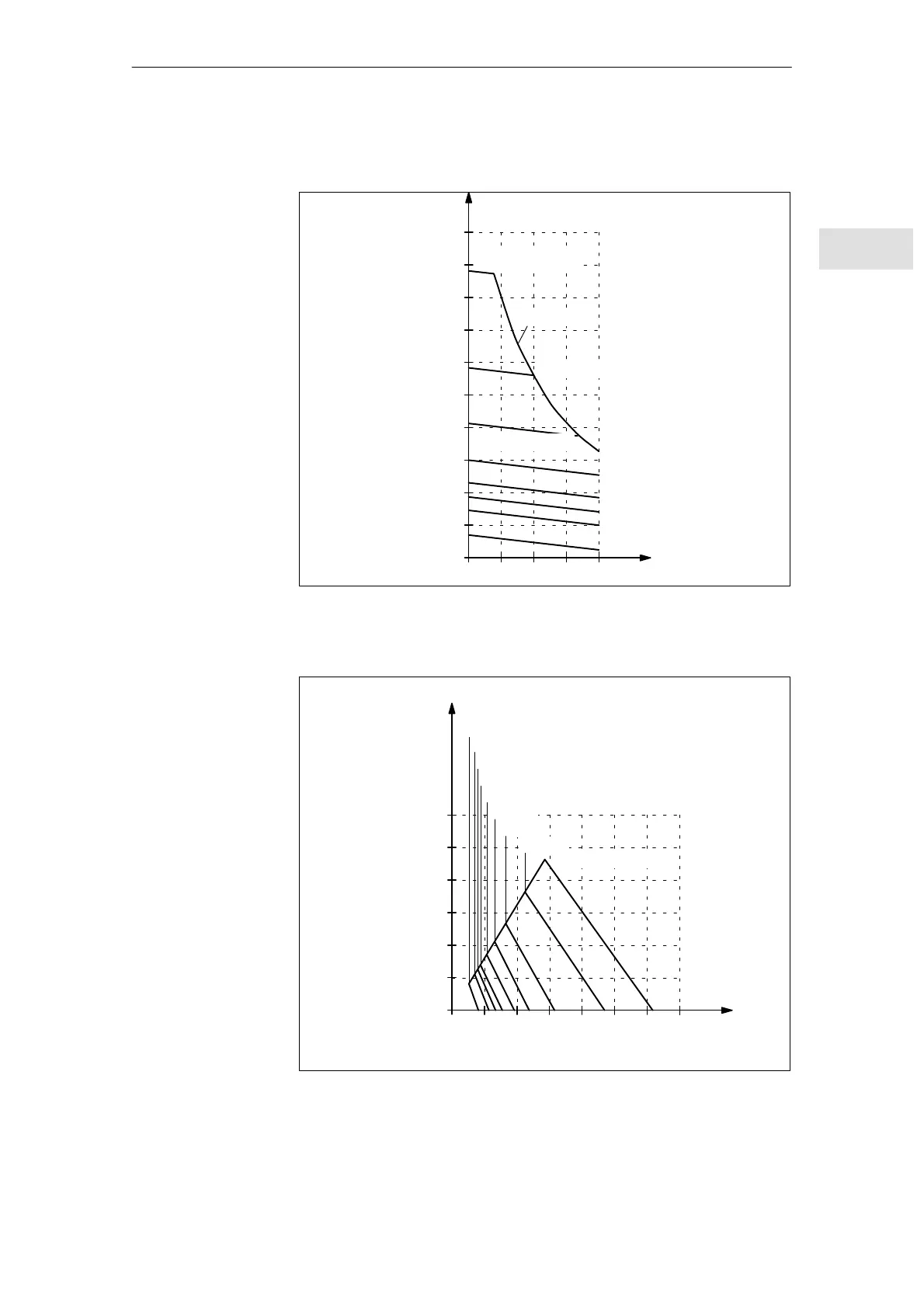

3.2 Cantilever/axial force dia
g
rams
