SIMODRIVE 611 (PJ)
Option board, main spindle functions 6SN1114–0AA02–0AA0
Main spindle functions can also be realized using an option board (main spindle
drive option). In this case, the option board should be mounted on the control
board (this is only possible in conjunction with the user–friendly interface).
X305
Mount on studs using M3x6 screws.
Tightening torque, 0.8 Nm.
Insert the front connector into the front panel, insert
the PC board in the locating lugs.
Establish the connection using X305.

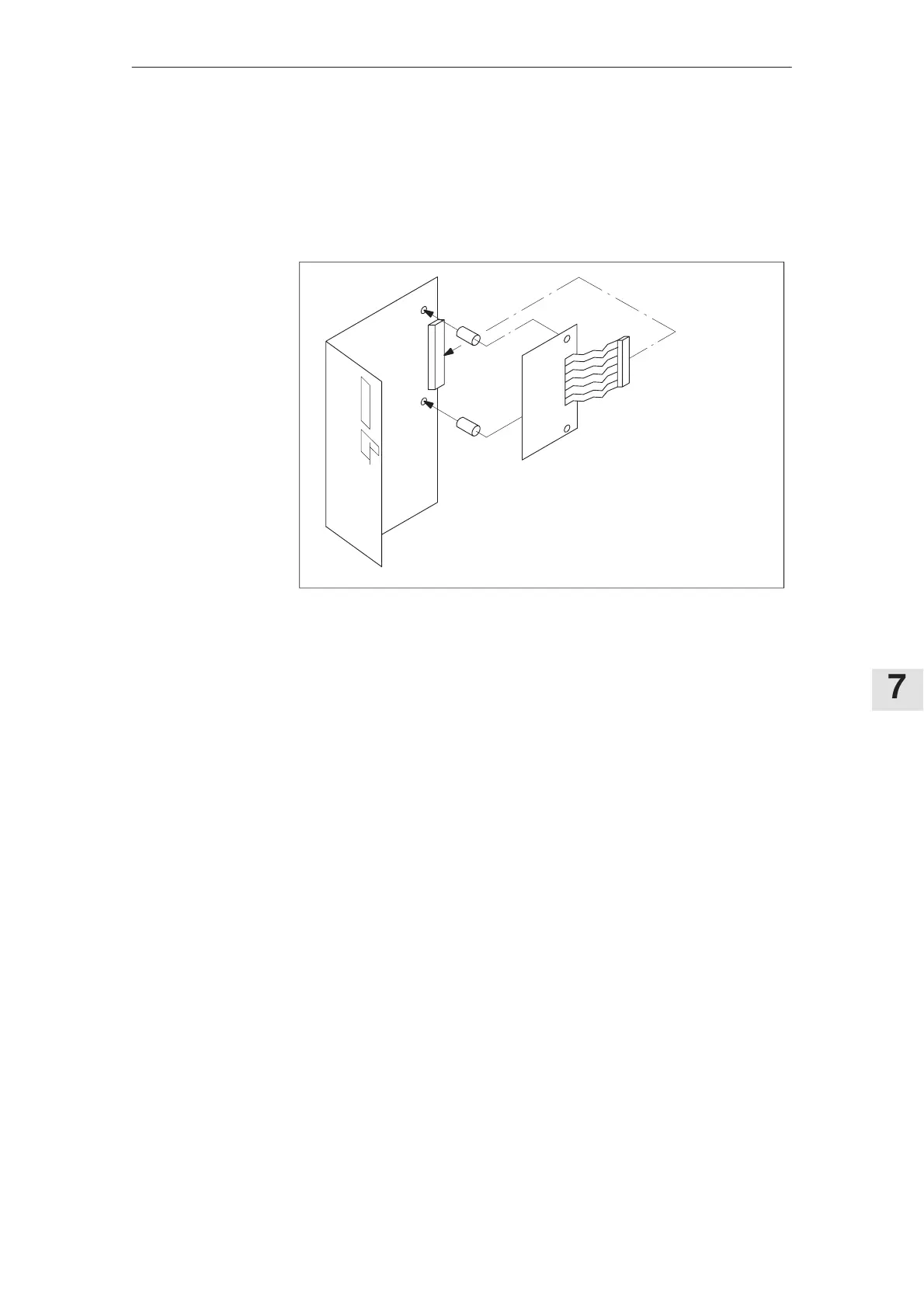

Figure 7-2
Mounting
MSD option
7.1.3 Option board, main spindle functions
