Electrical connection
8.3 System integration
1FK2 synchronous motors for SINAMICS S120
102 Configuration Manual, 06/2019, A5E46927724B AB
Rotating the connector on the motor
You can rotate power connectors and signal connectors within a limited range of angles.
Use a suitable socket connector to rotate the angle plug.
Unscrew and open the socket connector completely to avoid damaging the pin contacts.
Note
Rotating the connectors
•
Do not exceed the permissible range of rotation.
To ensure the degree of protection, do not rotate more than 10 times.
Rotatability of the power connector and signal connector

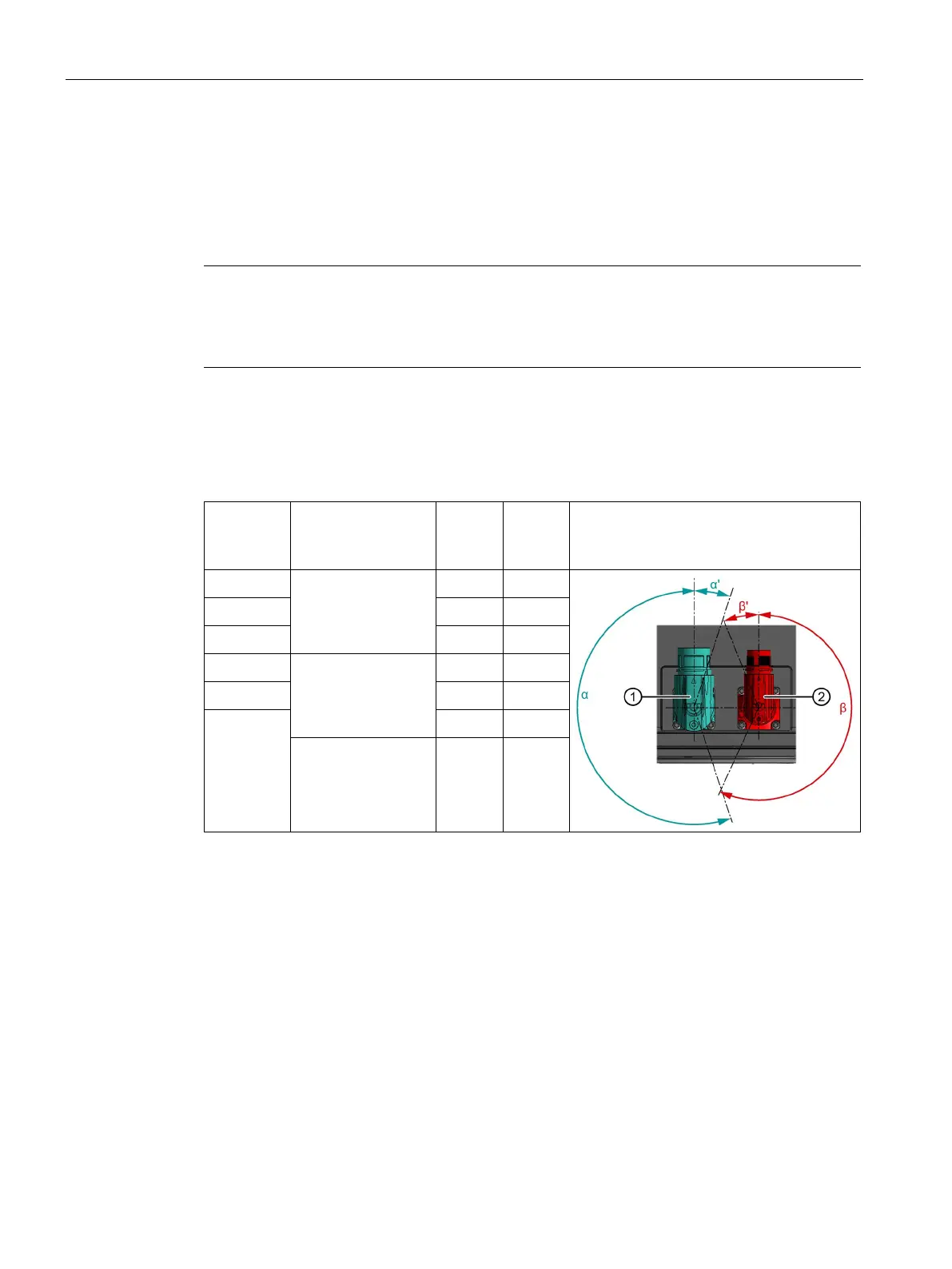

Table 8- 3 Rotation range of the power connector ①
Connector size of
the power connector
①
1FK2❑03
M17
205 29
1FK2❑04 205 25
1FK2❑05 228 35
1FK2❑06
M23
222 40
1FK2❑08 222 46
1FK2❑10
222 55
M40 228 48
