Siemens SIMOTICS S-1FK2 Series User Manual

Assembly drawings/dimension sheets

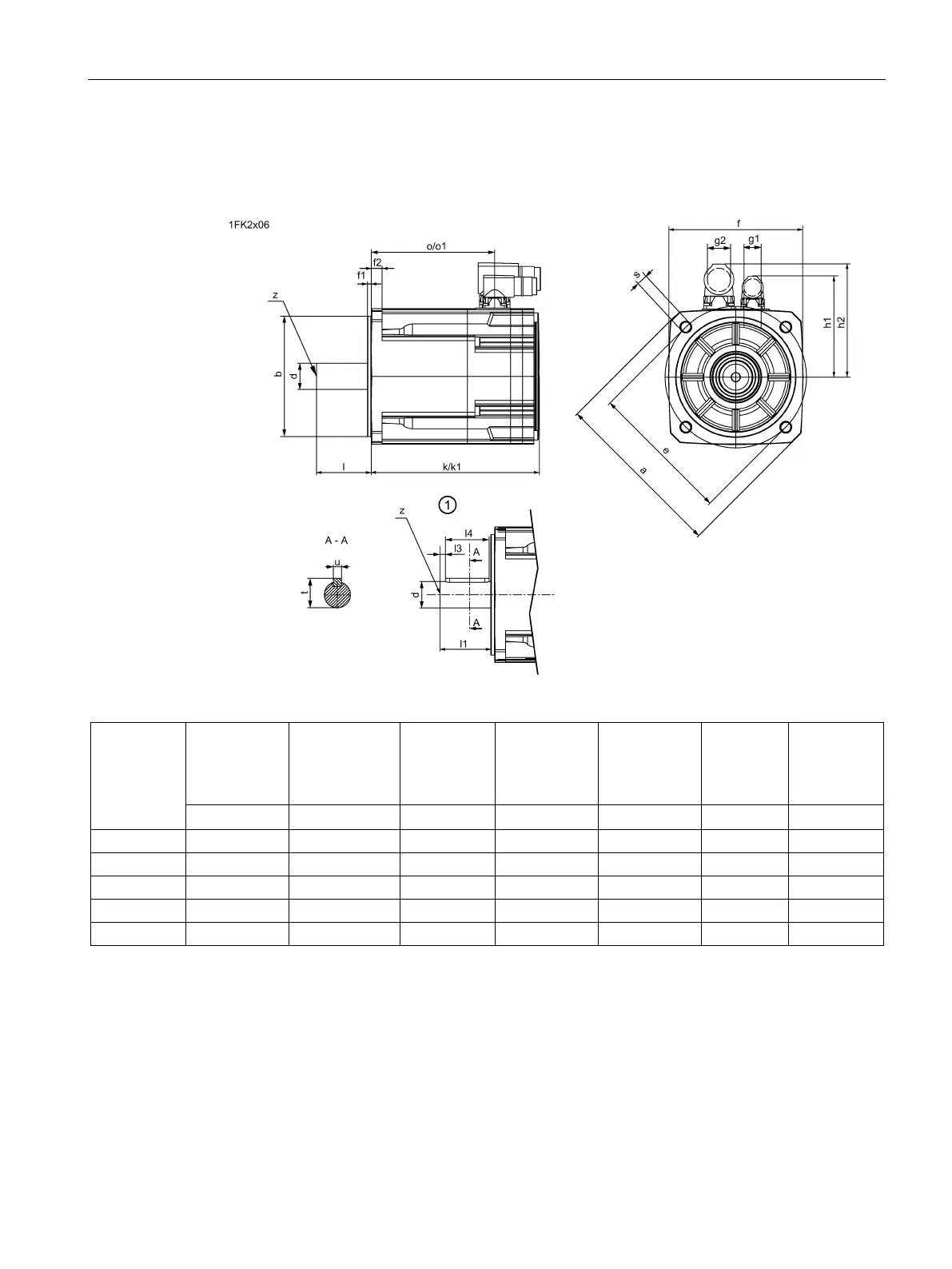

9.2 Dimension drawing 1FK2x05 ... 1FK2x10
1FK2 synchronous motors for SINAMICS S120
Configuration Manual, 06/2019, A5E46927724B AB
113
9.2
Dimension drawing 1FK2x05 ... 1FK2x10
The motor has the following dimensions in the following shaft heights:
①
Example for shaft extension with feather key, available for degrees of protection IP64 and IP65
Motor
Flange width
Diameter of the
circle of holes
Centering
diameter
Centering
edge width
Corner
men-
sion/flange
diagonal
Flange
thickness
Flange bore
f / mm
e / mm
b / mm
f1 / mm
a / mm
f2 / mm
s / mm
1FK2105
105
115
95(j6)
3
135
10.5
9
1FK2205 95 100 80(j6) 3 120 9 6.5
1FK2❑06
125
130
110(j6)
3.5
158
10
9
1FK2❑08
155
165
130(j6)
3.5
200
11.5
11
1FK2❑10
192
215
180(j6)
4
244
13
14

Siemens SIMOTICS S-1FK2 Series Specifications

General

Category	Servo Drives
Manufacturer	Siemens
Rated Power	0.05 to 7.1 kW
Rated Torque	0.16 to 34 Nm
Max Speed	6000 rpm to 9000 rpm
Rated Speed	3000 rpm to 6000 rpm
Feedback System	Incremental encoder, Absolute encoder
Protection Class	IP64, IP65
Cooling Type	Natural convection, Forced ventilation
Voltage	200 V
Shaft height	40 mm to 180 mm
Typical applications	Machine tools, Packaging machines, Robotics, Handling systems
