Mechanical properties
3.6 Radial and axial forces
1FK2 synchronous motors for SINAMICS S120
34 Configuration Manual, 06/2019, A5E46927724B AB

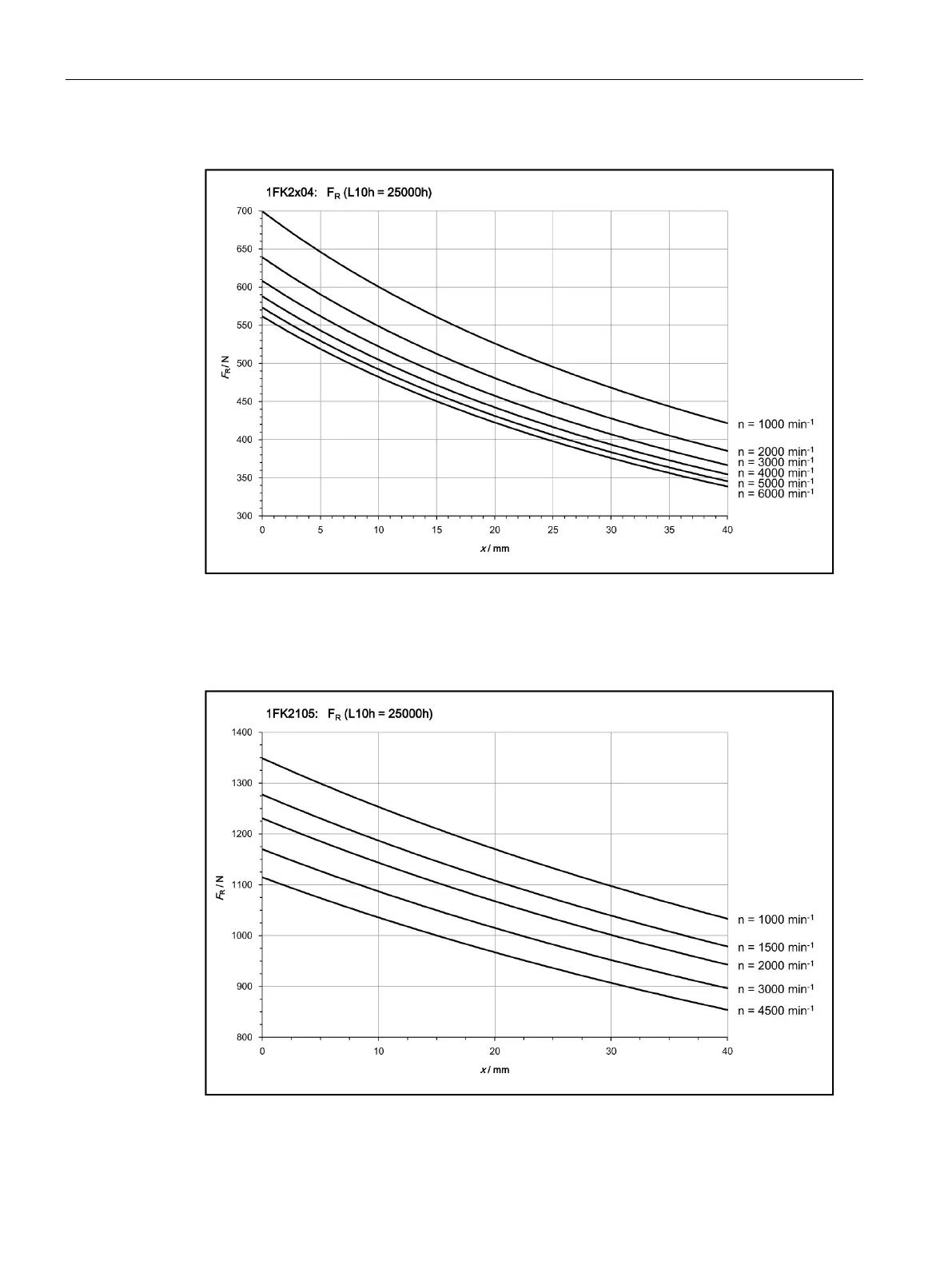

Radial force diagram 1FK2x04
Figure 3-3 Maximum permissible radial force
F
R
at a distance x from the flange for a nominal
bearing lifetime of 25000 h
Radial force diagram 1FK2105
Figure 3-4 Maximum permissible radial force
F
R
at a distance x from the flange for a nominal
bearing lifetime of 25000 h
