Connecting
5.4 System integration
1FK7 G2 synchronous motors
78 Operating Instructions, 05/2021, A5E50907562B AA

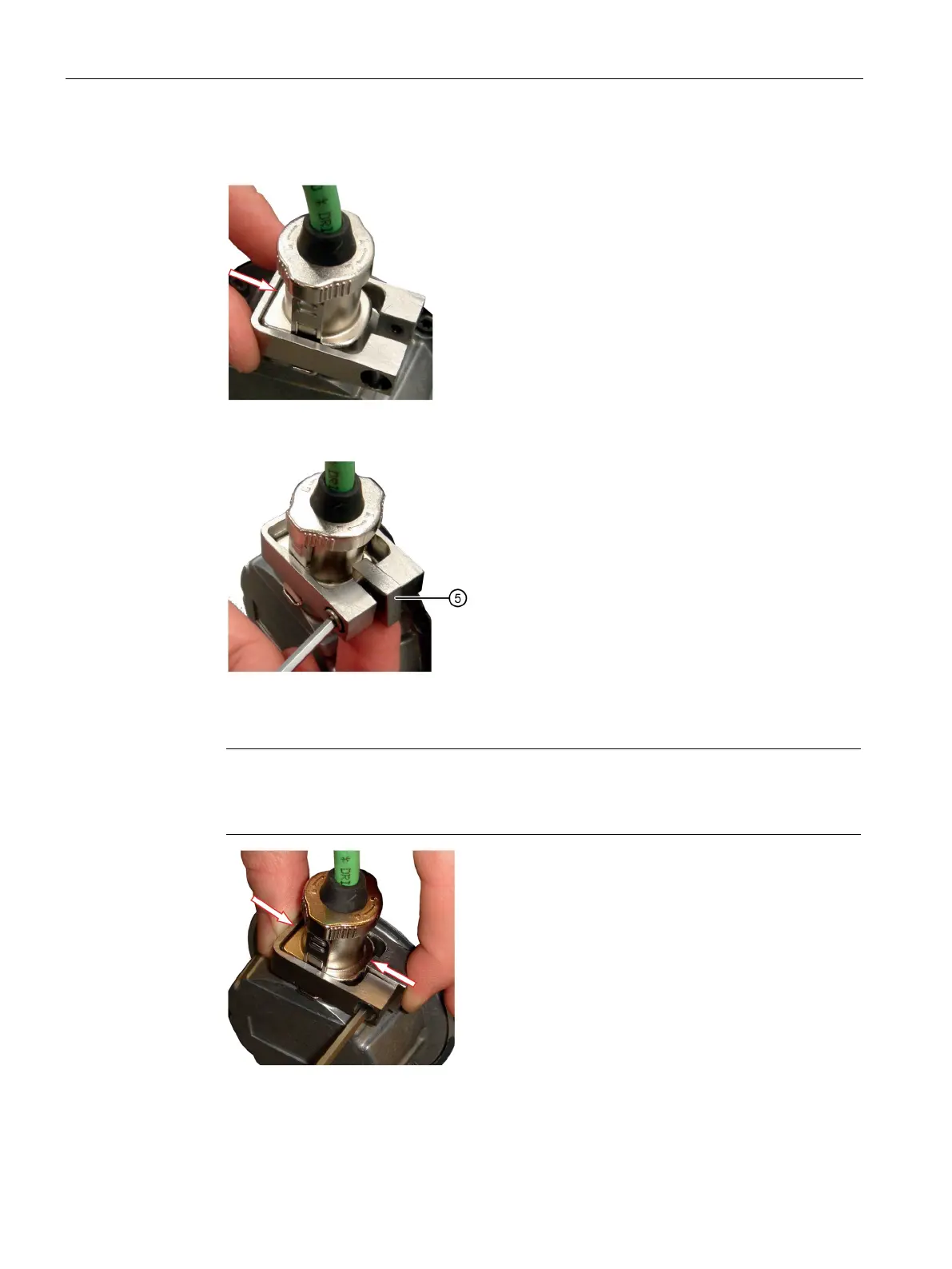

Position the connector as shown in the following figure.
5. Insert the supplied screw through the loosening protection and the supplied spacer.
Tighten the screw slightly.
6. Position the spacer and the loosening protection correctly, and tighten the screw.
The loosening protection and the spacer must be placed tightly on the connector.
The spacer must be securely clamped.
You have secured the RJ45 connector against being loosened unintentionally.
❒
