Connecting
5.4 System integration
1FK7 G2 synchronous motors
82 Operating Instructions, 05/2021, A5E50907562B AA
1
M23 connection plug (with full thread)
2
SPEED CONNECT M23 connection plug
3
Terminal for the cable shield
4
Pin assignment
5
Circuit diagram
6
Cable shield
7 Conductor designation:
L1, N = power cable, 1.5 mm
2
PE = protective conductor

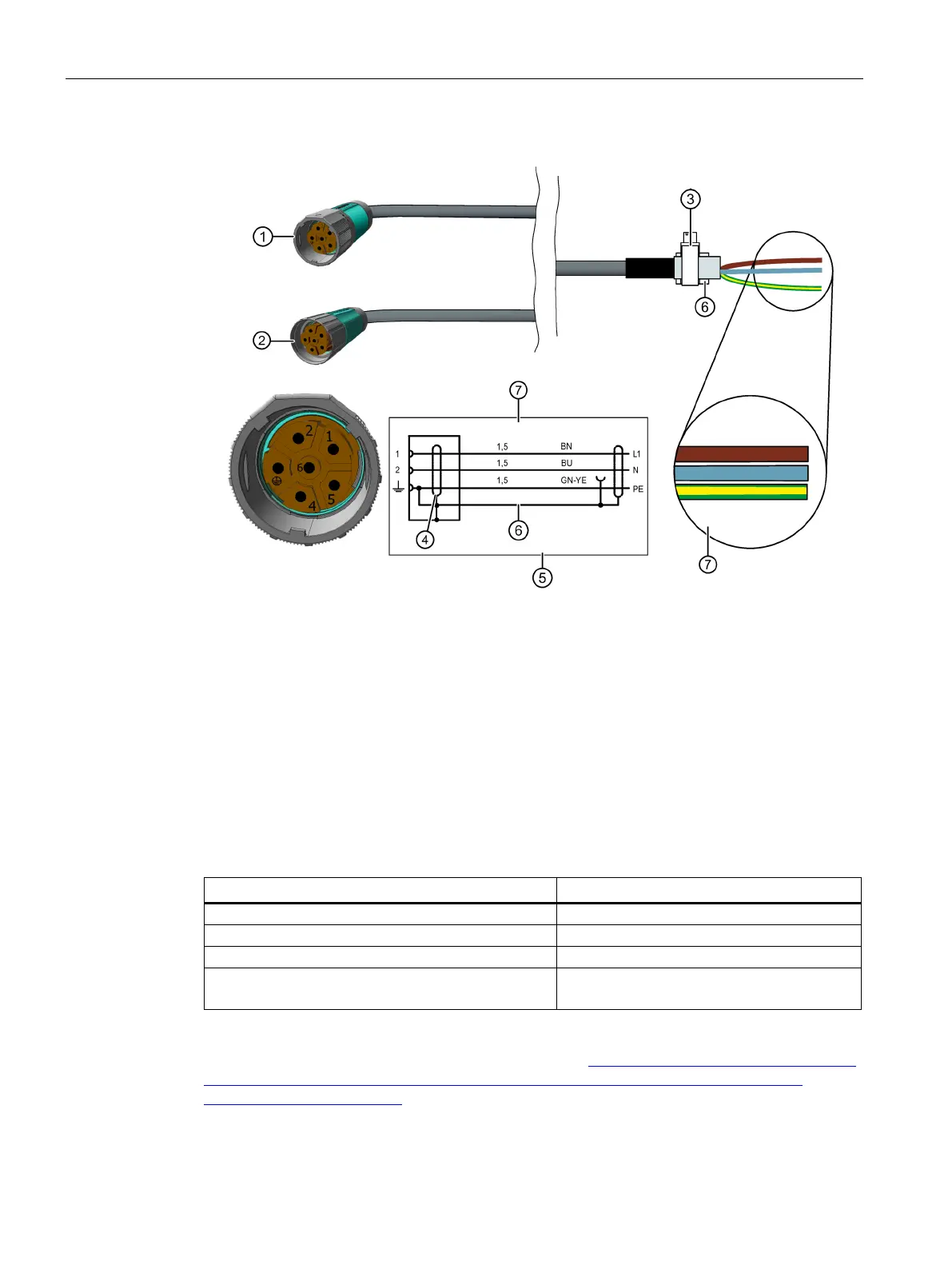

Figure 5-4 1-phase connection of external fan
Table 5- 2 Order numbers
Order number (article number)
M23 connector with full thread
6FX2003-0LU00
M23 connector with SPEED-CONNECT
6FX2003-0LU30
Prefabricated cable with full thread
6FX5001-5CG10-☐☐☐☐
1)
Prefabricated cable with SPEED-CONNECT
6FX5002-5CG10-☐☐☐☐
1)
6FX8002-5CG10-☐☐☐☐
1)
1)
The last 4 positions are the length code.
You can find additional information in Catalog D 21.4 (https://intranet.for.siemens.com/org/i-
dt-mc/en/motion-control/support/marketing-materials/catalogs/d-21-4-sinamics-s120-
simotics/Pages/d-21-4.aspx#), Chapter "MOTION-CONNECT connection system" in the print
version or online.
