Connecting
5.4 System integration
1FK7 G2 synchronous motors
92 Operating Instructions, 05/2021, A5E50907562B AA
Removal
Procedure

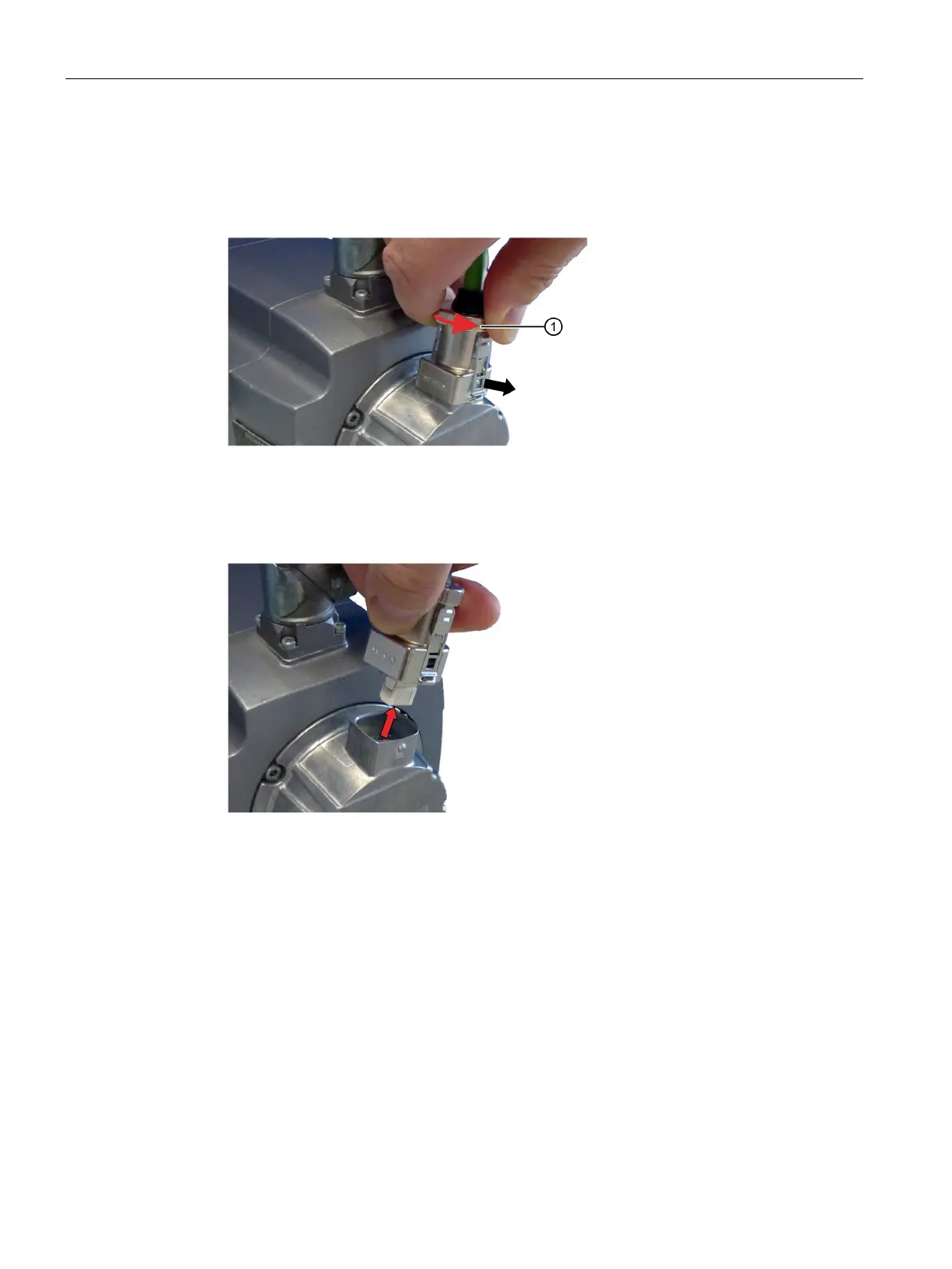

1. Turn the locking ring of the connector counterclockwise into the "unlocked" position.
1 Turn the locking ring counterclockwise.
→ Both tabs are pressed away by the latches.
2. Check that the two tabs are disengaged from the latches.
3. Pull the connector out of the RJ45 socket of the Sensor Module.
You have released the DRIVE-CLiQ connection.
❒
