Connecting
5.4 System integration
1FK7 G2 synchronous motors
Operating Instructions, 05/2021, A5E50907562B AA
91

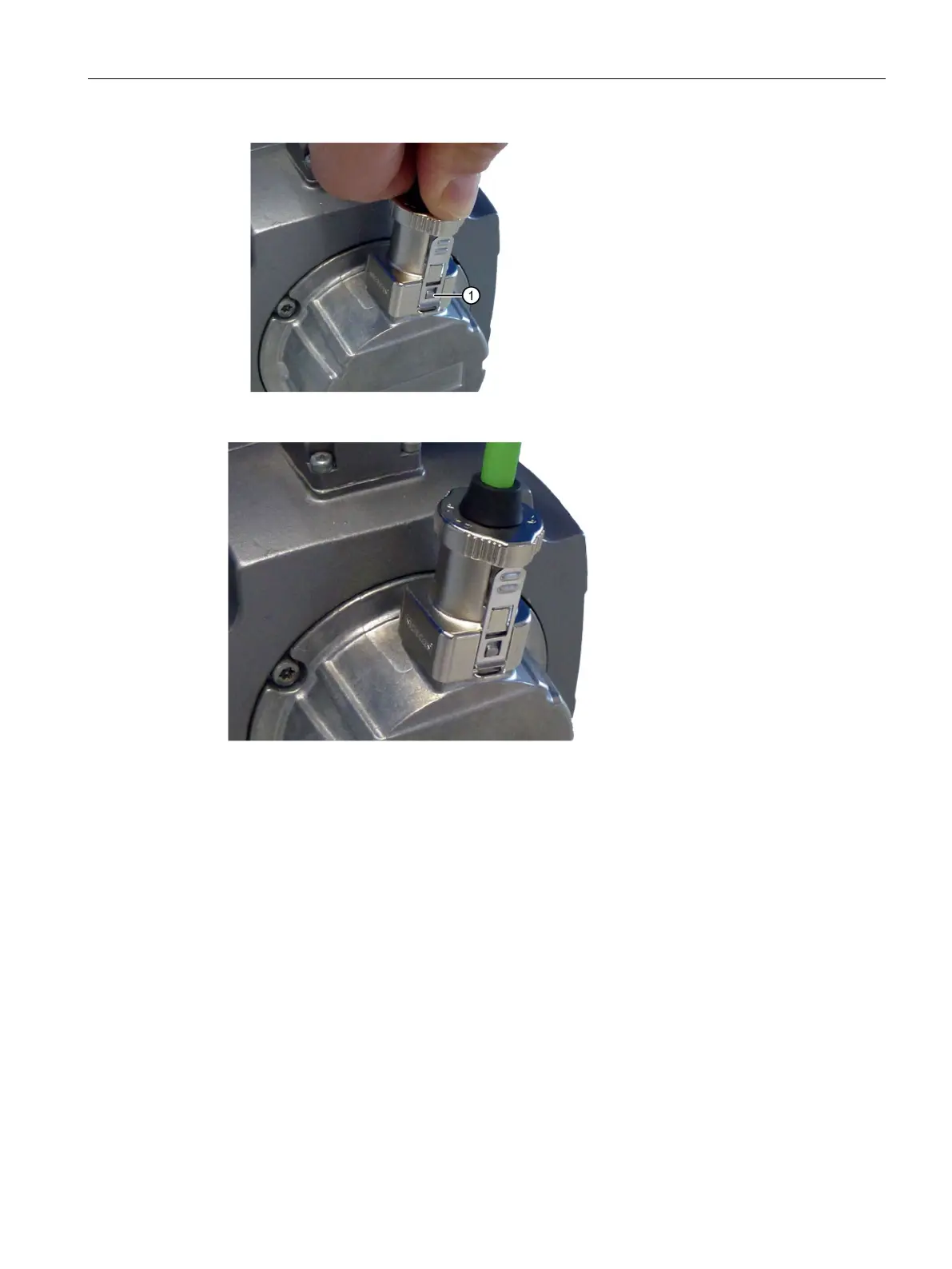

Both tabs must engage in both latches.
The correct DRIVE-CLiQ connection is made when
• the locking ring is in the "locked" position,
• both tabs are engaged in both latches.
You have established a DRIVE-CLiQ connection.
❒
