The vibration values must not exceed the speci󹪝ed limits at any measuring location.







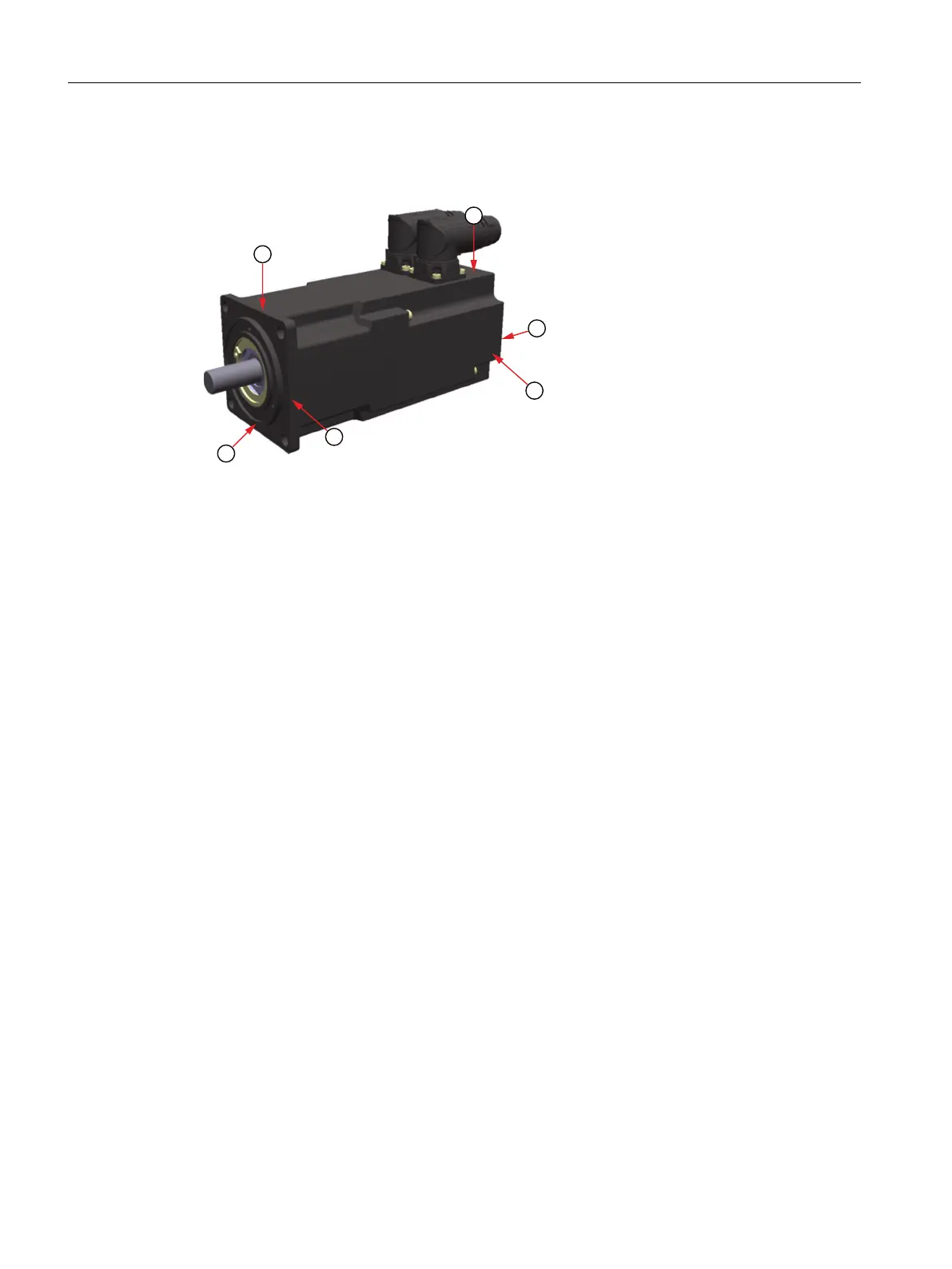

1 End shield DE radial 4 End shield NDE radial
2 End shield DE radial 5 End shield NDE axial
3 End shield DE axial 6 End shield NDE radial
Figure6-4 Measuring points for vibration values
Mounting
6.6Vibration response
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
76 Operating Instructions, 12/2023, A5E50610821B AF
