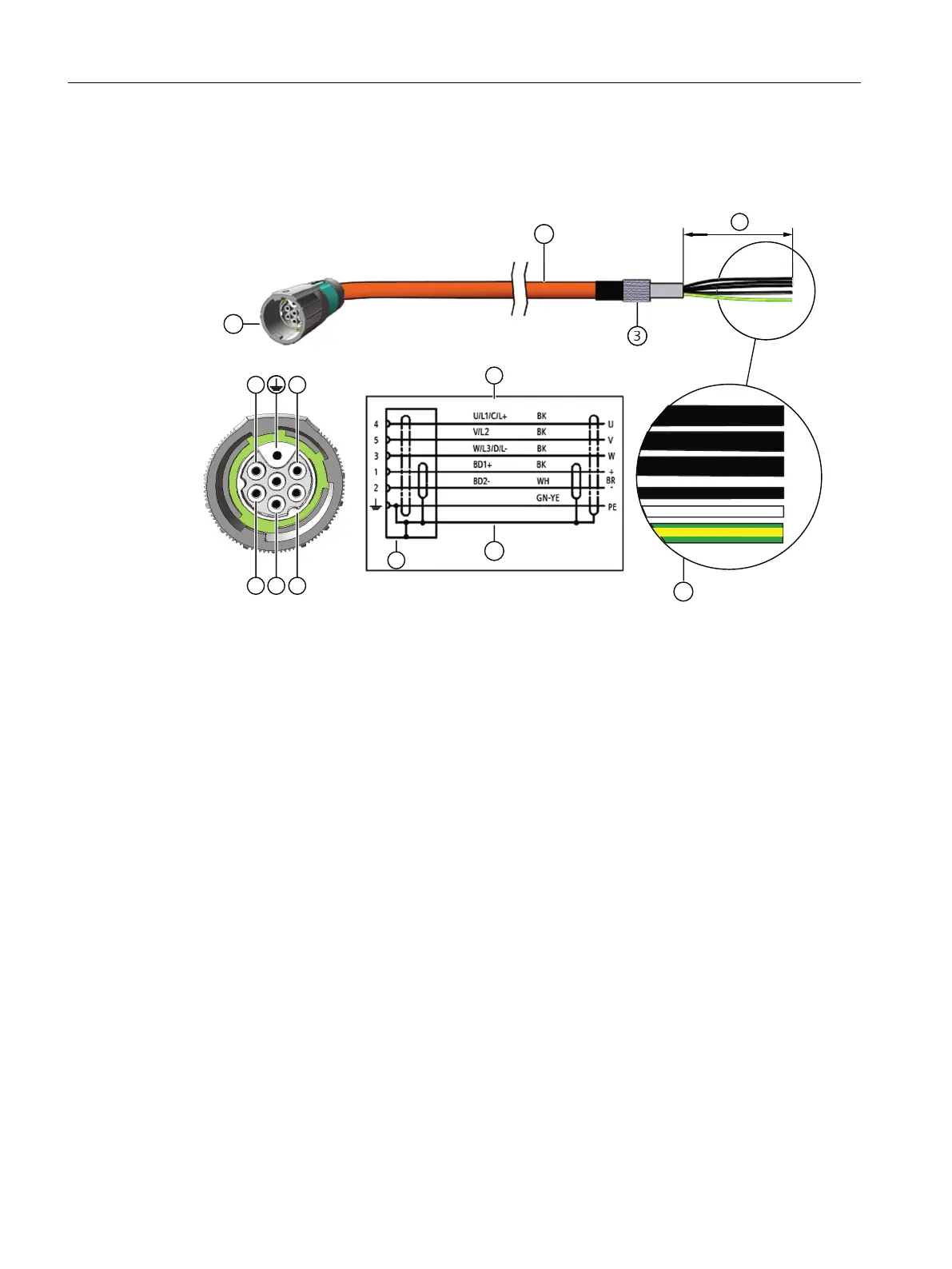

Connection diagram for the 1F☐2 motor to S120 with a MOTION-CONNECT line
For connector size M17

7

68









8-%-
7-
6-$-
1 SPEED CONNECT connector, size M17
2 MOTION CONNECT cable
3 Cable shield
4 Connection diagram
U; V; W = power cables, 1.5mm
2
, each cable with separate shielding
BD1+ and BD2- = brake cable without lettering, 1.5mm
2
, shielded together
PE = protective conductor
5 Cable shield
6 Conductor designations
7 The length of the cable ends depends on the converter selected.
Connecting
7.3System integration
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
