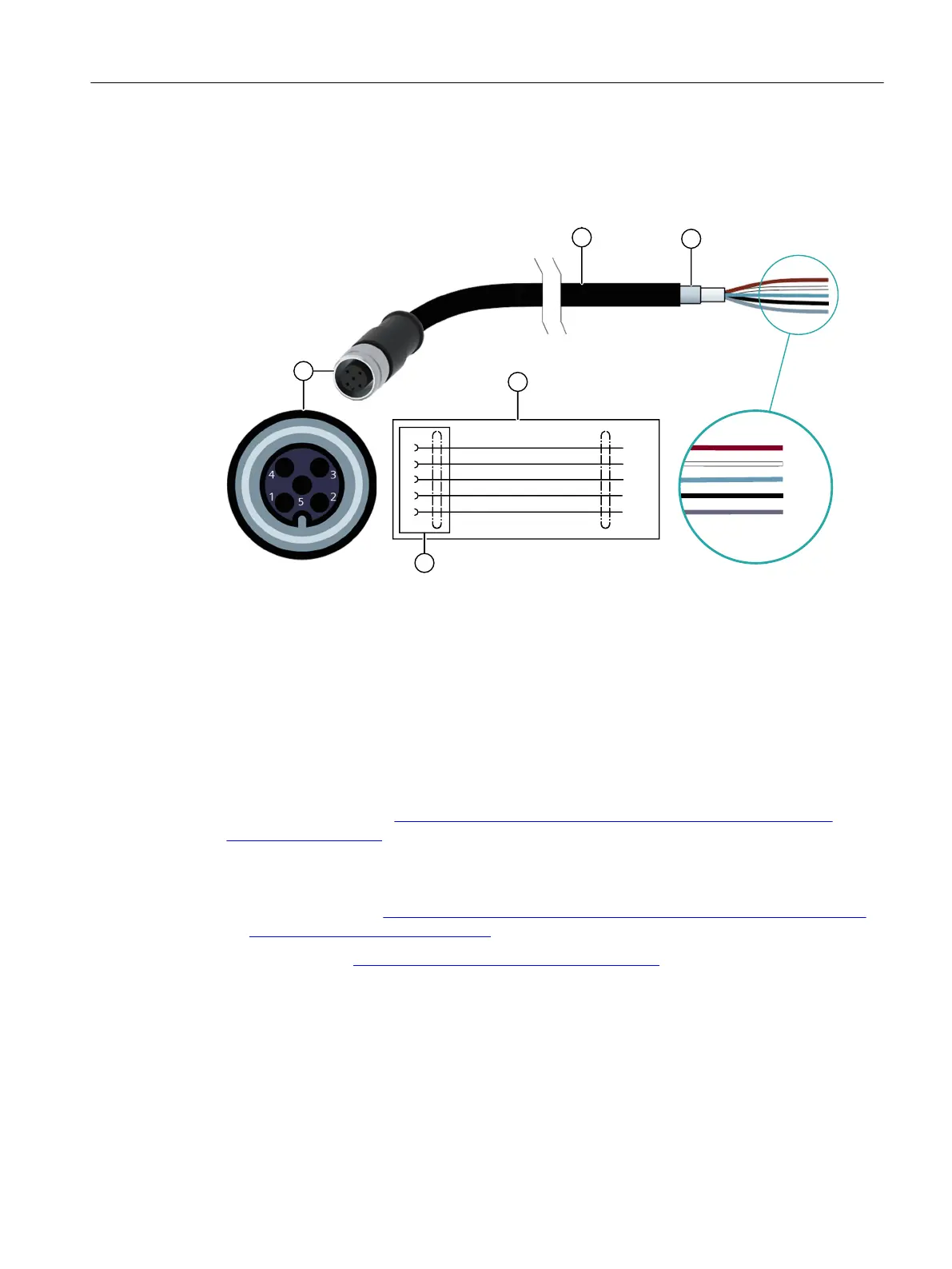

Connection diagram of the fan cable for a force-ventilated 1FT2 motor at the S120
The connection is established using a fan cable with M12 connector, 5-pole, A-coded according
to IEC61076-2-101.





"DPEJFSU
(:
#,
#6
#/
8)










(/%
7

① Round connector with socket, M12, 5-pole, A-coded according to IEC61076-2-101
② Fan cable
③ Protective braided shield
④ Connection diagram
⑤ Connector pin assignment
The cores at pins 2, 4 and 5 are not used.
Sources where the fan cable can be purchased
SIEMENS Industry Mall (https://mall.industry.siemens.com/mall/de/de/Catalog/product?
mlfb=3SX5601-3SB55)
Third-party connecting cables for the fan are available, for example, from the following
suppliers.
• Phoenix company (https://www.phoenixcontact.com/de-de/produkte/sensor-aktor-kabel-
sac-5p-100-purm12fs-sh-1500758)
• IMF company (https://www.ifm.com/at/de/product/EVC708)
Connecting
7.3System integration
