– Or by automatically identifying the motor (motor with DRIVE-CLiQ interface)

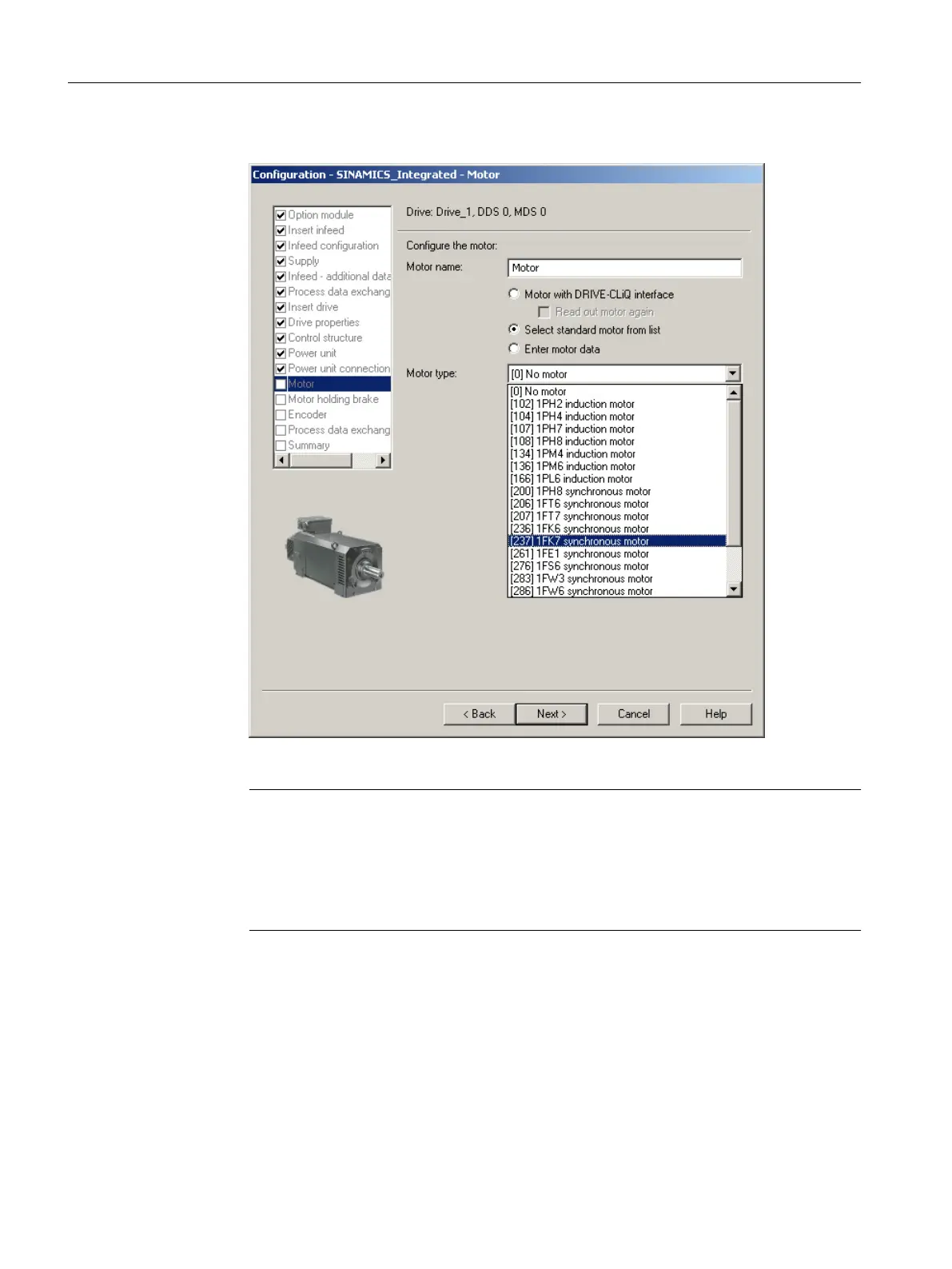

Figure 7-12 Selecting a motor (1)
Note
Motors with DRIVE-CLiQ interface have an integrated encoder evaluation that is
connected
to the Motor Module via a fully digital communication interface (DRIVE-CLiQ).
In this way, motor encoder and temperature signals as well as electronic rating plate
data, such as unique article numbers, rated data (voltage, current, torque) can be
transferred directly to the Control Unit.
Commissioning (software)
7.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
190 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
