CX32-2 topology
The
CX32-2 topology displays the DRIVE-CLiQ port required for connection to the SINAMICS
Integrated. The drive objects connected to the CX32‑2 are also displayed.

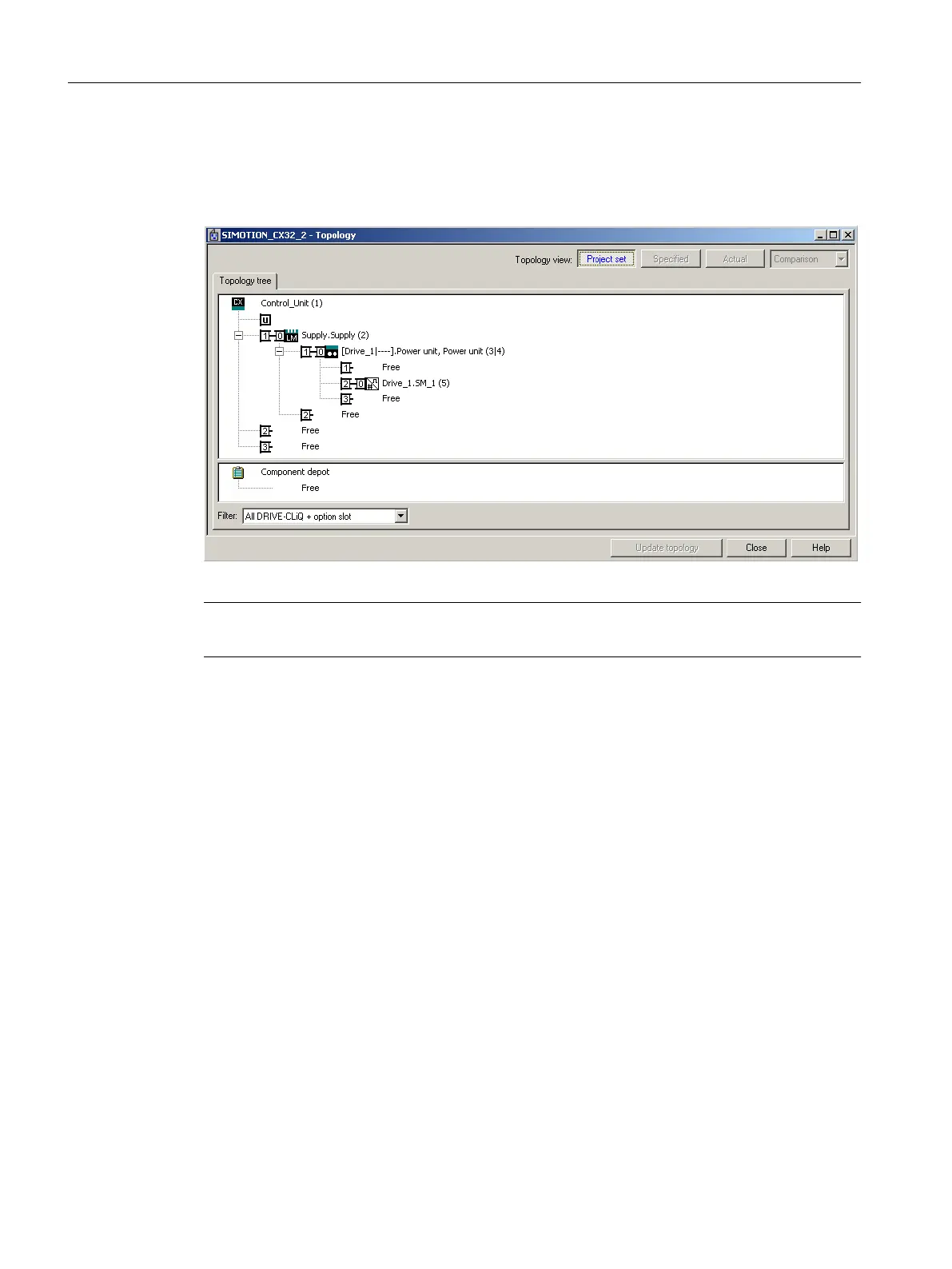

Figure 7-30 CX32-2 topology
Note
Topology errors can result in a download or system power-up not being possible.
7.4.5 CX32-2 offline configuration
Options
The following options are available for commissioning a project created offline:
● Loading a project created offline to the target system
● Loading a project created offline to the CompactFlash Card
Commissioning (software)
7.4 Configuring a CX32-2
SIMOTION D4x5-2
216 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
