7.6 Testing a drive with the drive control panel
Introduction
You can test a configured drive with the drive control panel, where you can specify a speed
and adjust it with a scaling factor. The drive control panel should only be used for
commissioning.
Requirements
●
The project has been downloaded to the target system.
● SIMOTION SCOUT is in online mode.
● The drive is not being used by a current project in RUN mode.
WARNING
Danger to life from unexpected movement of driven machine parts
Make sure this presents no hazard to personnel or property.
Testing a drive with the drive control panel
1.
Change to the configured drive in the Project Navigator and open the drive control panel
by selecting "Commissioning" > "Control panel". The drive control panel opens in the detail
view.

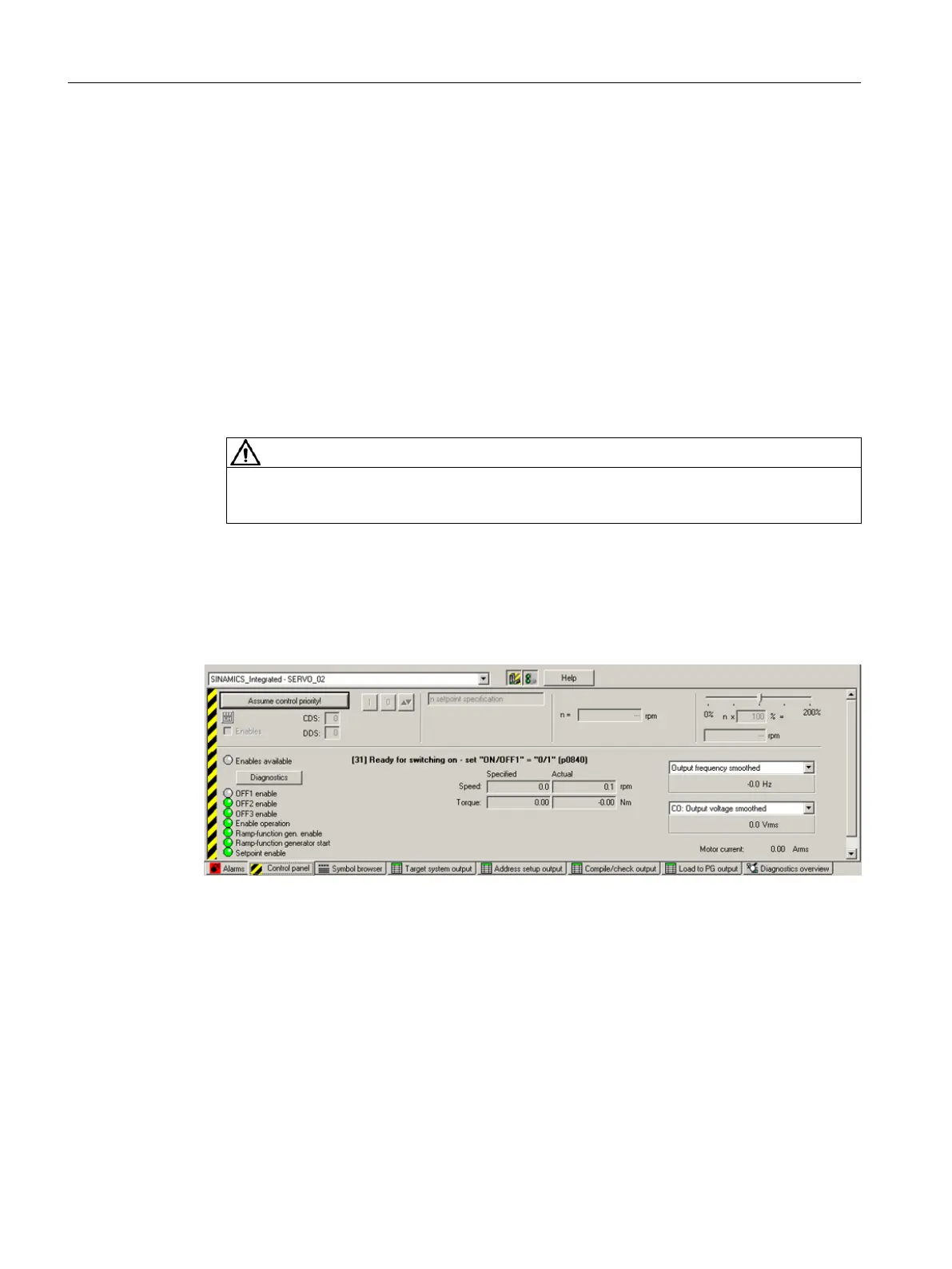

Figure 7-43 Drive control panel
2. To display the control area and axis diagnostics, click the "Show/hide control area" and
"Show/hide diagnostics area" buttons.
Commissioning (software)
7.6 Testing a drive with the drive control panel
SIMOTION D4x5-2
254 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
