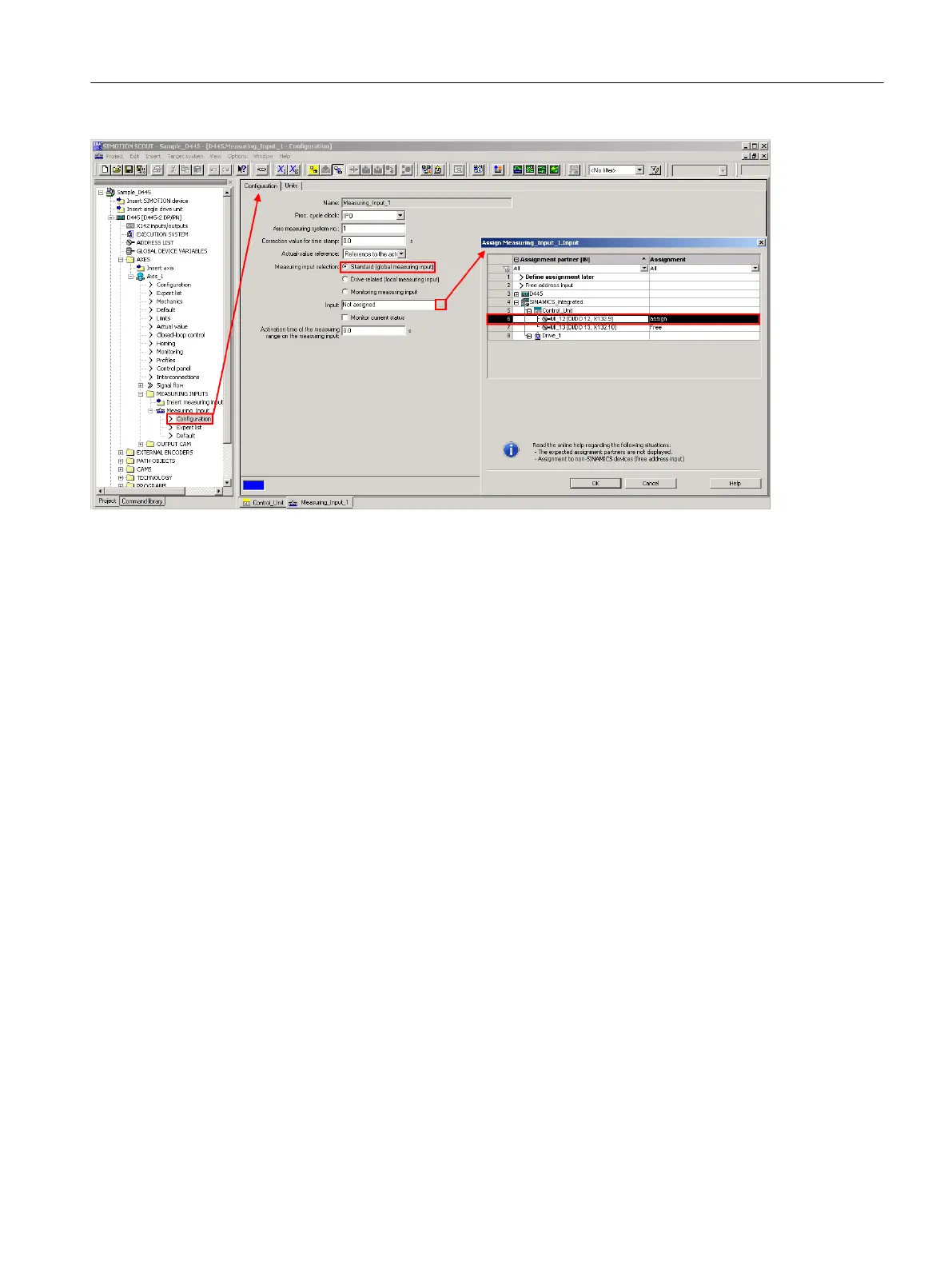

Figure 7-61 Configuration of a global measuring input for the D4x5-2
Detailed information on the configuration of the TO measuringInput can be found in the
SIMOTION Output Cams and Measuring Inputs Function Manual.
7.13.2 Configuration of local measuring inputs
Local measuring inputs are drive-related measuring inputs. The configuration is performed via
drive parameters.
For further details, see:
● Section Configuration of drive-related I/Os (without symbolic assignment) (Page 413) in
the appendix
● SIMOTION Output Cams and Measuring Inputs Function Manual
7.13.3 Configuration of output cams / cam tracks
Overview
The type of cam output must be selected during the configuration of the TO outputCam and
TO camTrack.
Commissioning (software)
7.13 Configuration of the technology objects and I/O variables
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 289
