● If you have created subfolders (e.g. "myfolder" in the FILES directory), these must also
appear in the path.
●
Only one file name may be used per line.
● Empty lines are not permitted (an empty line will be interpreted as the end of the list).
● No distinction is made between upper-case and lower-case letters.
● It does not matter whether you use "\" or "/" in the path name.
6,027,21,7VWDQGDUGZHEVLWHV
6
,027,21,7XVHUGHILQHGZHEVLWHV

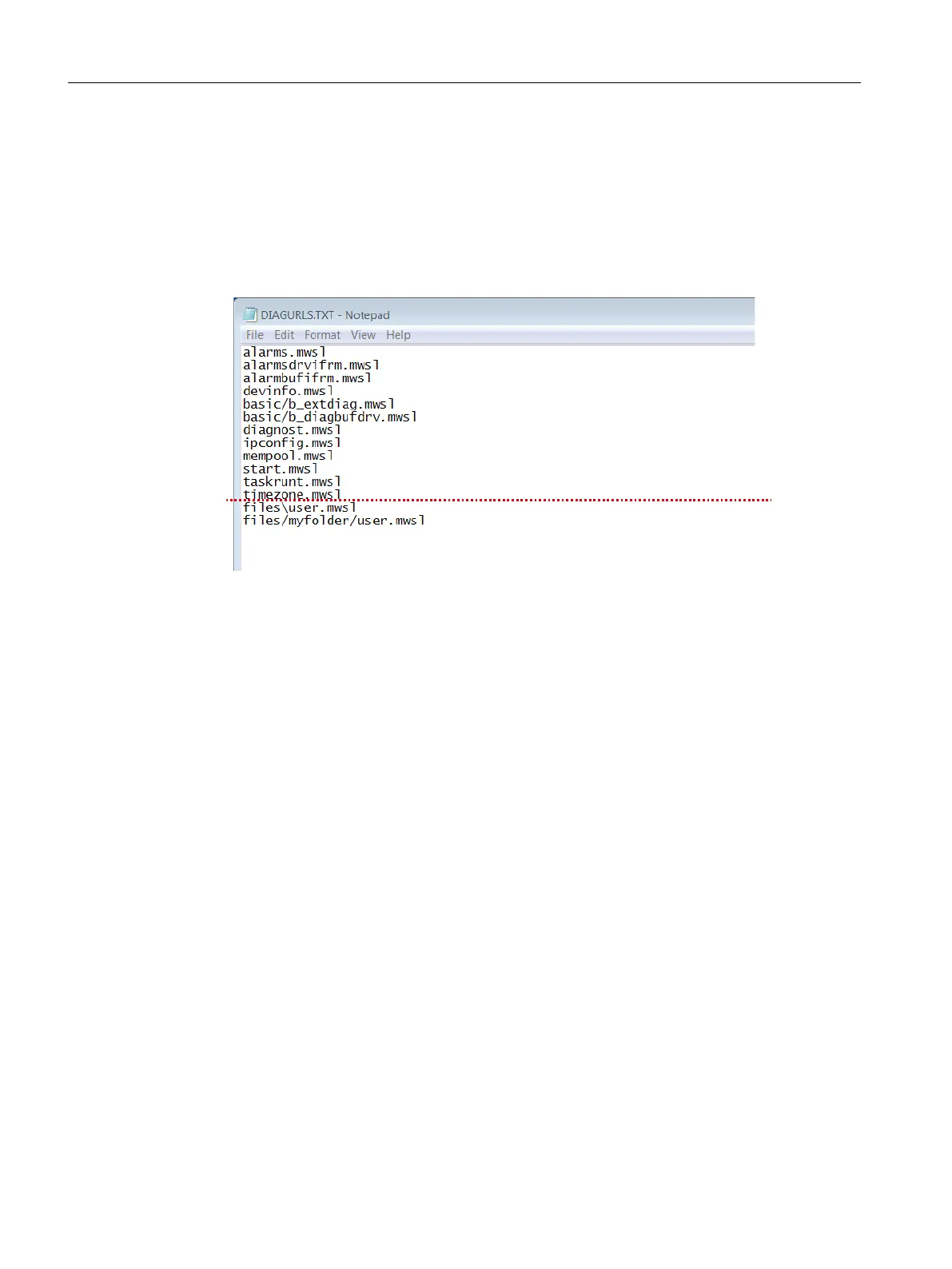

Figure 9-7 Depiction of DIAGURLS.TXT editor
Additional references
You will find detailed information on device and diagnostic information of the SIMOTION IT
web server in the SIMOTION IT Diagnostics and Configuration Diagnostics Manual.
9.2.4 Delete/restore non-volatile SIMOTION data
9.2.4.1 Overview
Requirement
The non-volatile SIMOTION data have been backed up on the CF card by one of the following
methods:
● by system function (_savePersistentMemoryData), see also Section Operations and their
effect on the user memory (Page 106).
● manually by service selector switch / web server / DIAG button, see Section Backup of
diagnostic data and non-volatile SIMOTION data (Page 396).
Diagnostics
9.2 Diagnostic data and non-volatile SIMOTION data
SIMOTION D4x5-2
404 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
