Requirements
●
The bushing for the cooling fins (external heat sink) has been fitted in the rear wall of the
control cabinet.
● Please ensure the area around the seal is both smooth and clean (② please see figure
titled "Panel cutout").
● Seal available (for the article number, see the SIMOTION D4x5-2 Manual, Section Spare
parts and accessories )



,QVWDOODWLRQFXWRXW
IRUKHDWVLQN
PD[5








&DELQ
HWUHDUSDQHO

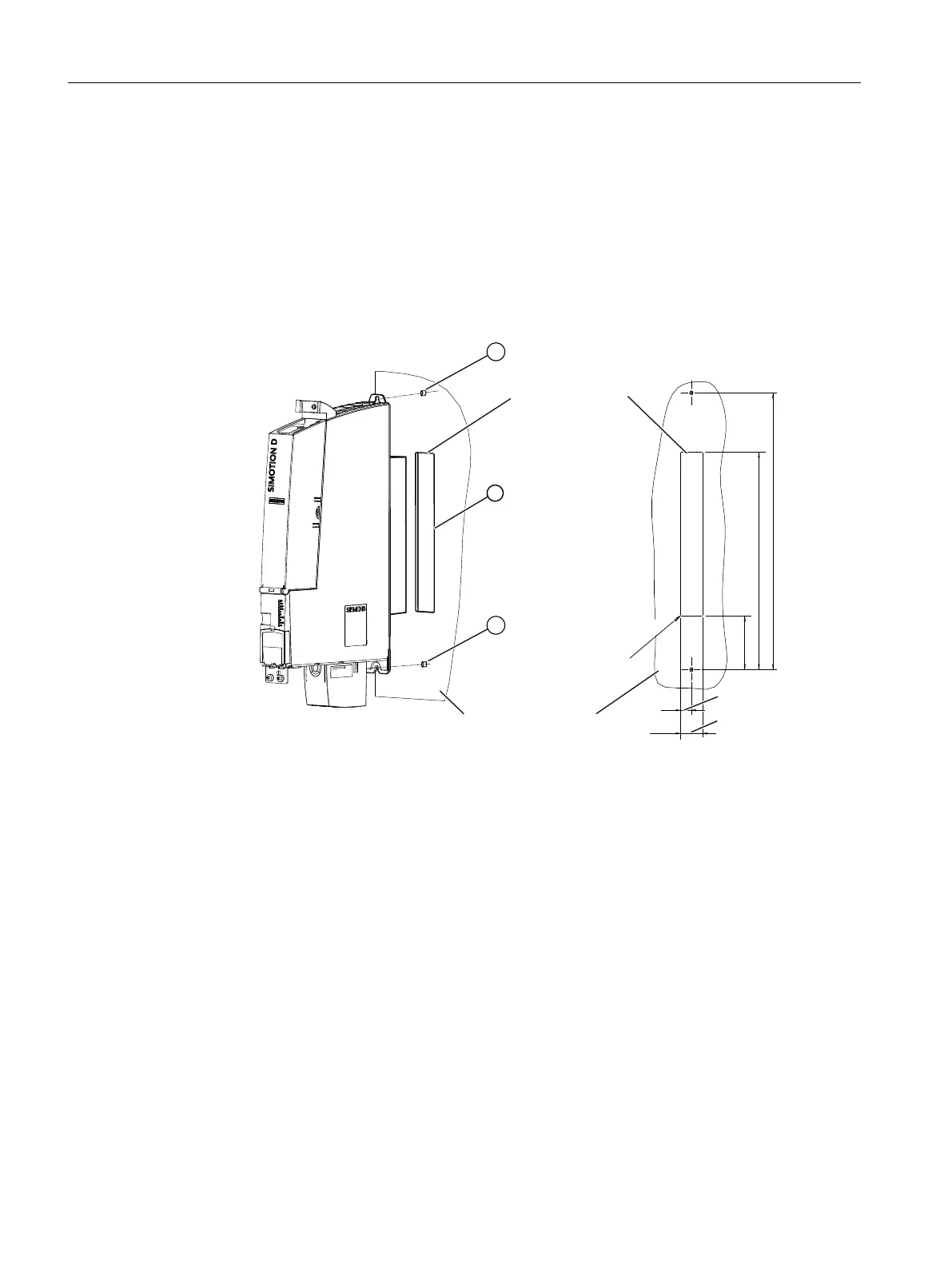

Figure 3-4 Panel cutout
