Procedure
To insert the CF card, perform the following steps:
1.
The direction of insertion of the CF card is indicated by an arrow located on both the plug-
in slot and the CF card. Align the CF card with the arrows.
2. Gently insert the CF card into the empty plug-in slot of the SIMOTION D4x5‑2 until it clicks
into place.
If correctly inserted, the CF card is flush with the housing.
7ZRDUURZVPXVWEHYLVLEOHZKHQ
LQVHUWLQJWKH&)FDUG

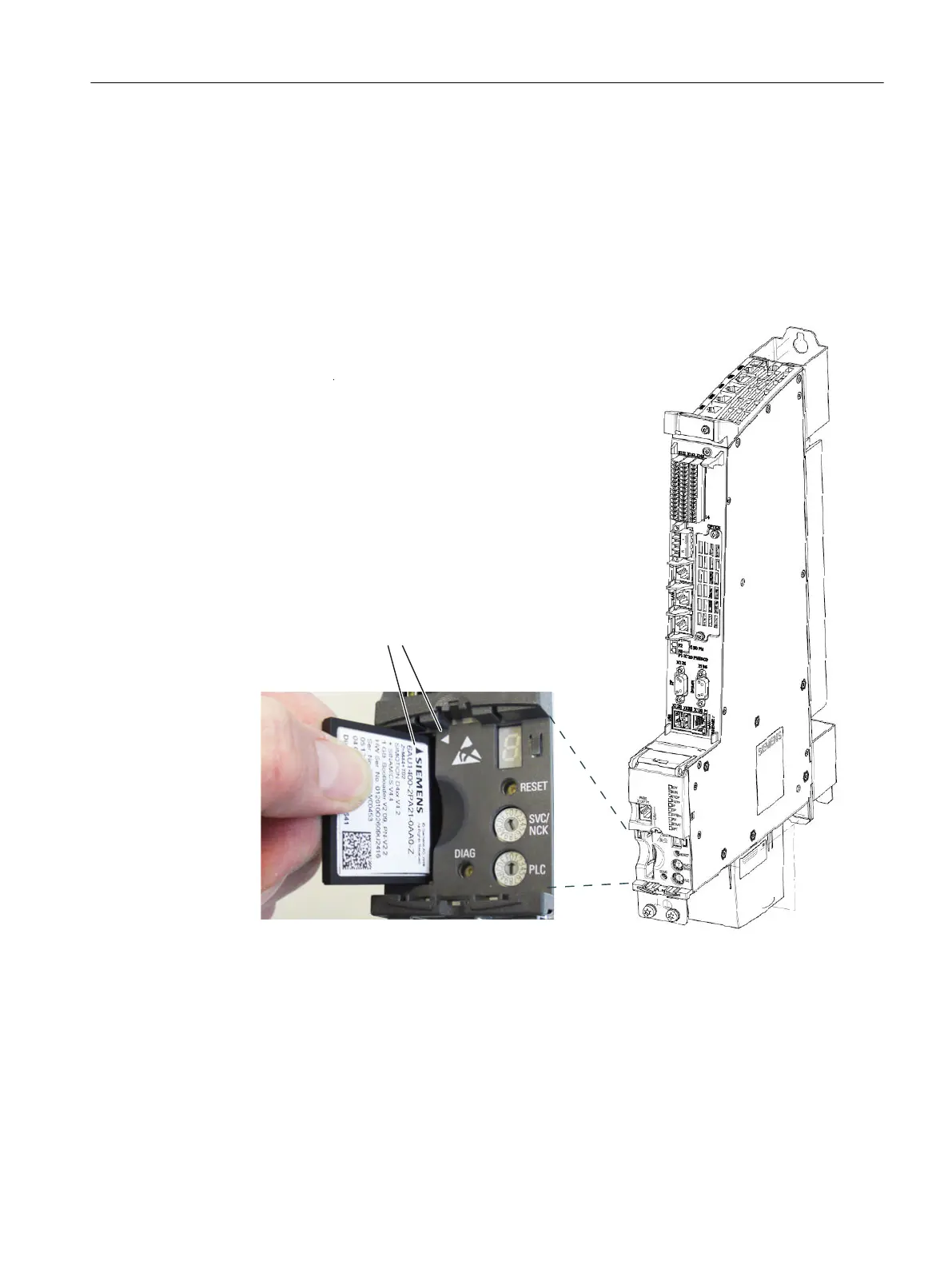

Figure 5-1 Inserting the CF card
Commissioning (hardware)
5.1 Requirements for commissioning
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 97
