Siemens SINAMICS G120C DP

3 Setting up and commissioning the application
3.5 Loading the software
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
16
Copyright  Siemens AG 2018 All rights reserved
No.
Action
Remarks

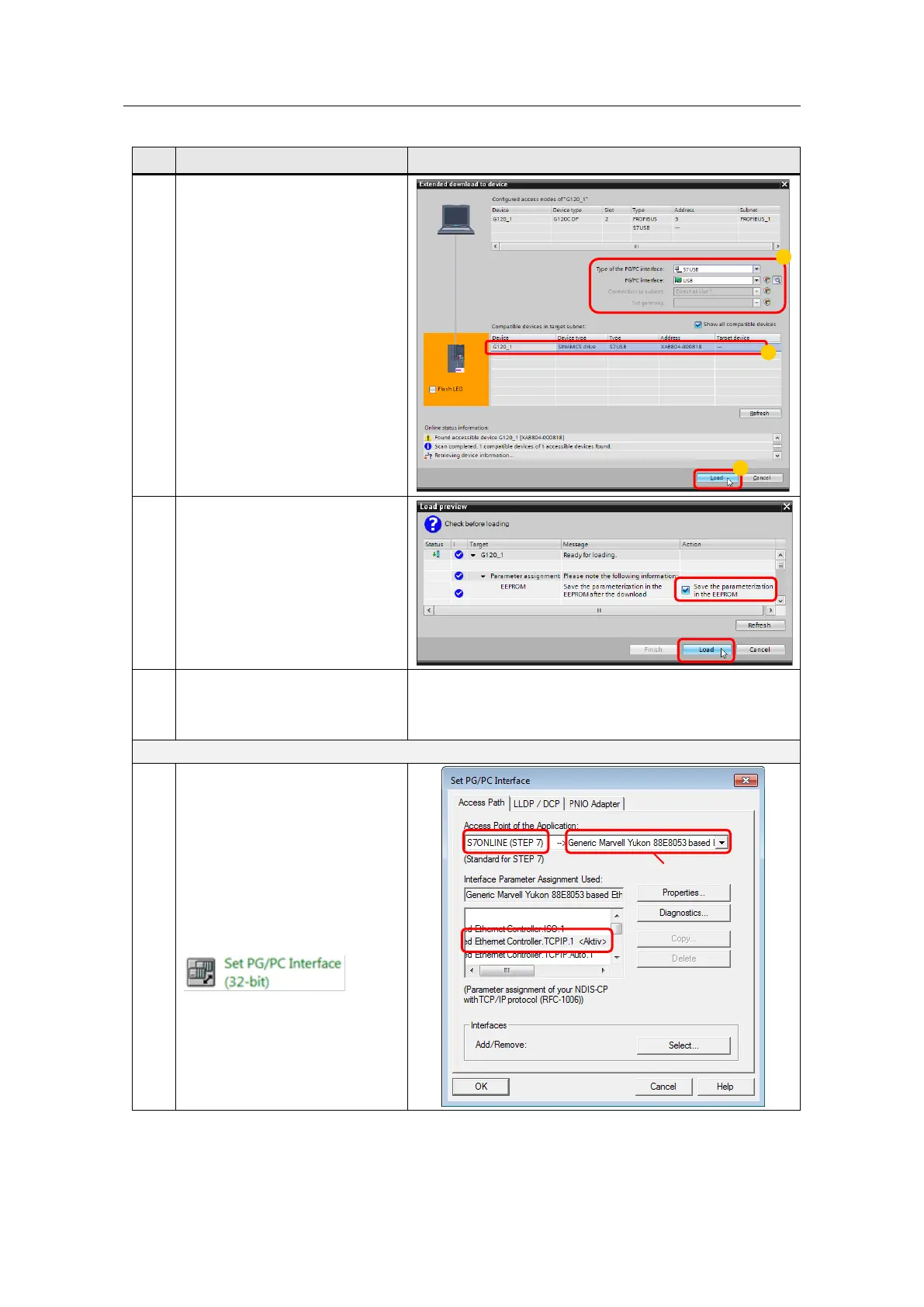

16.
If the “Extended download”
window appears, proceed as
follows:
1. Select “S7USB” as the type of
the PG/PC interface and
“USB” as the PG/PC interface
to connect the SINAMICS
drive to the PG/PC via USB
cable.
2. Your SINAMICS drive is
displayed in “Compatible
devices in target subnet”.
3. Acknowledge with the “Load”
button.
17.
Set the checkmark at “Save the
parameterization in the EEPROM”
and start the download.
18.
For the SINAMICS G120 you
perform a “POWER ON” (switch
off the voltage until all LEDs are
dark).
-
Simulation of the HMI KTP600 at the PG/PC (not applicable when device exists)
19.
Set the PG/PC interface on
Windows level.
Select “S7ONLINE (STEP 7)” as
access point of the application
and our used network card
configured for TCP/IP as Interface
Parameter Assignment Used.
Navigate in Windows as follows:
>Start
> Control Panel
>Set PG/PC Interface
1
3
2
network card used
