Siemens SINAMICS G120C DP Manual

4 Operating the Application
4.3 Monitoring and parameter access via operator panel
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
24
Copyright  Siemens AG 2018 All rights reserved

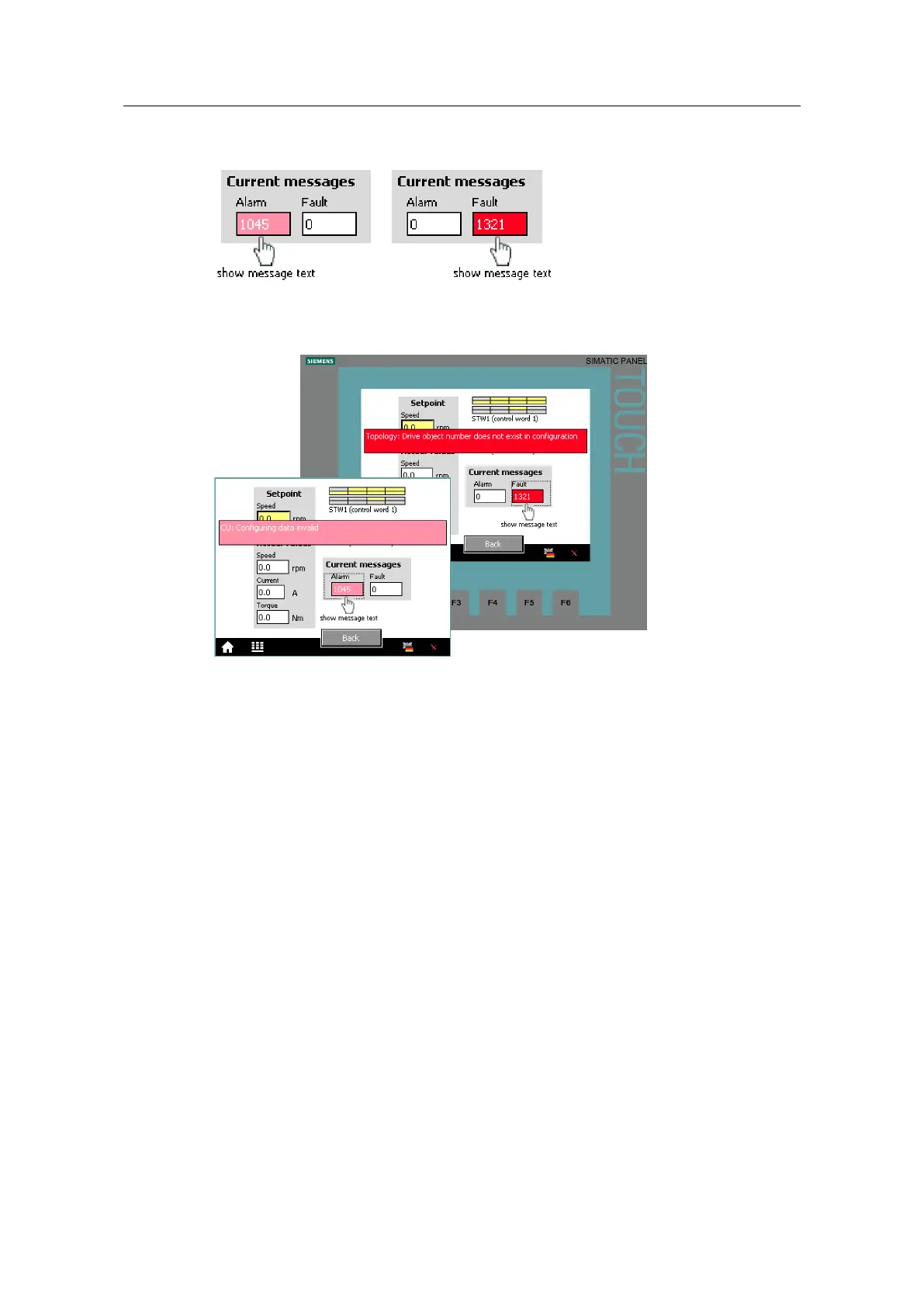

Figure 4-4: Current messages as message numbers
Tap or click on the message number to display the respective message text.
Figure 4-5: Current messages in plain text
The message text is displayed for as long as the message number is pressed.

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
