6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
52
 Siemens AG 2018 All rights reserved
No.
Action
Remarks

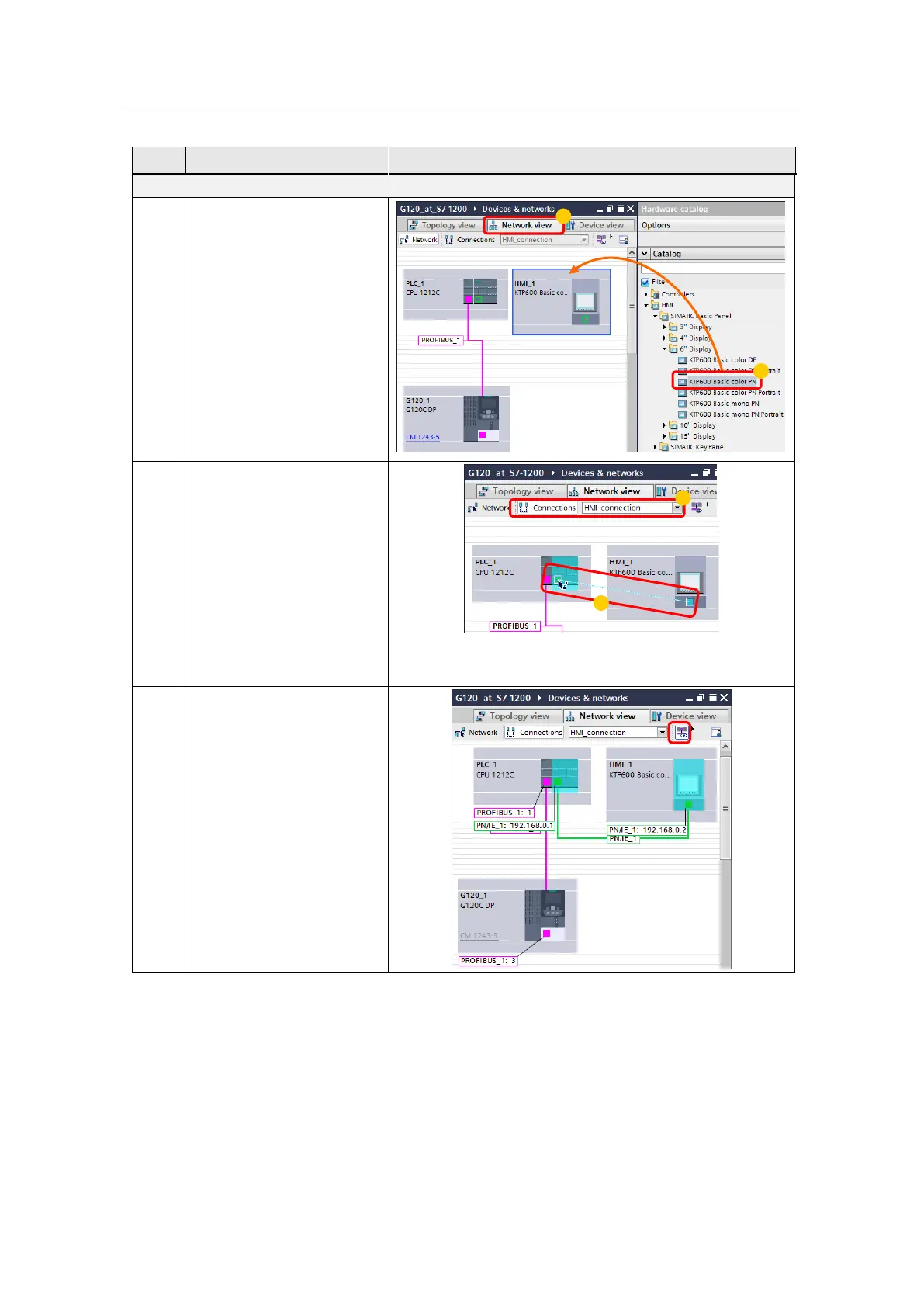

Add and network the HMI KTP600
21.
Select the desired HMI
operator panel:
1. In the “Devices &
networks” editor, go to
the “Network view”.
2. Then drag the required
HMI KTP600 from the
catalog into the graphic
area.
The HMI KTP600 is available
in the catalog at…
>HMI
>SIMATIC Basic Panels
>6‘‘ Display
22.
Connect the HMI operator
panel to the SIMATIC
controller:
1. Activate connection
mode and from the drop-
down list, select “HMI
connection”.
2. Create a connection
graphically between the
Ethernet connections of
the HMI KTP600 and the
PLC by dragging the
mouse.
23.
Show the addresses.
The drive automatically
contains the next free IP
address.
1
2
1
2
