6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
51
 Siemens AG 2018 All rights reserved
No.
Action
Remarks
20.

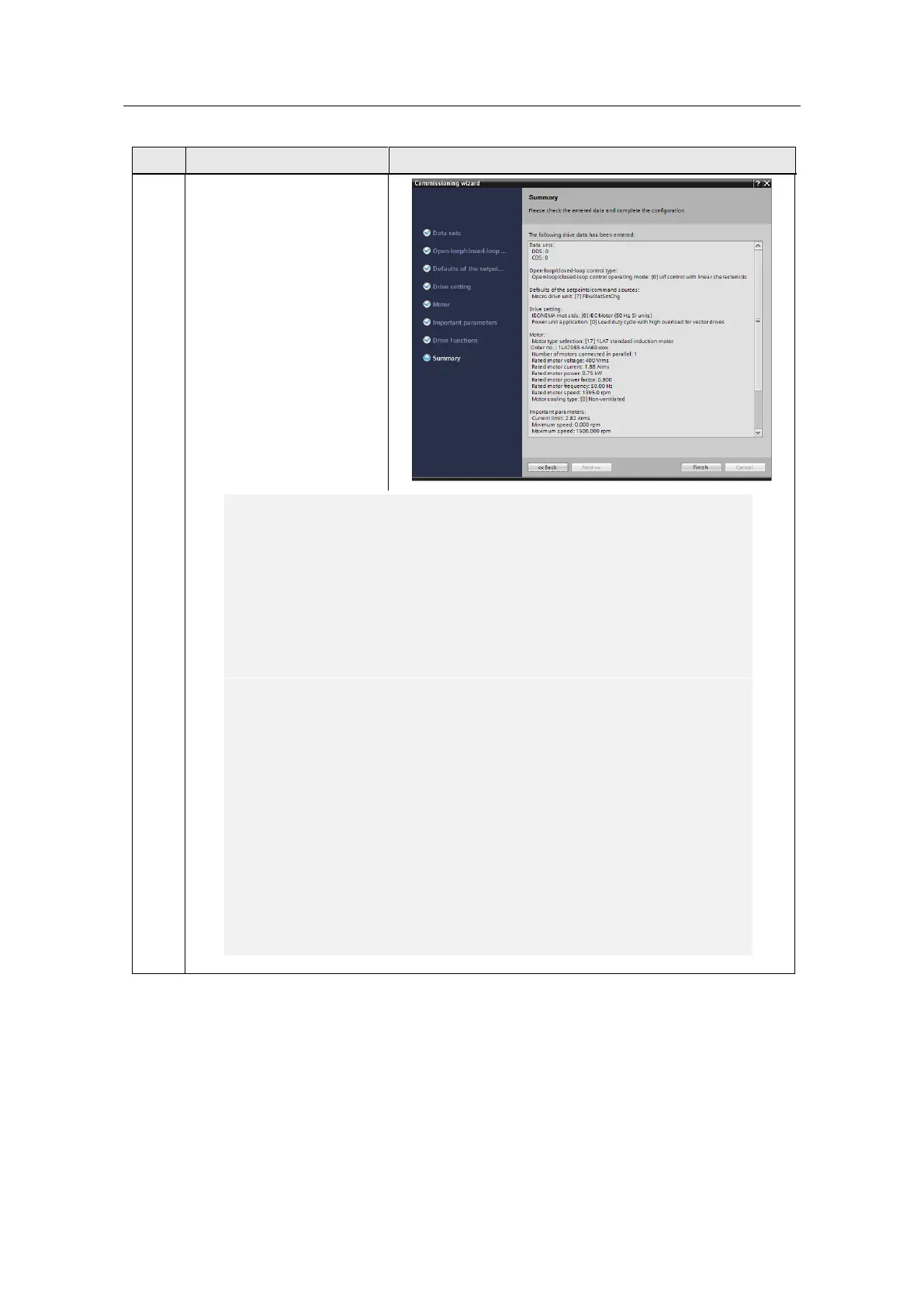

The wizard is self-
explanatory. A summary is
displayed before you
complete the
parameterization with
“Finish”. This summary can
be backed up using copy and
paste.
The parameterization in the
application example is shown
below:
Data sets:
DDS: 0
CDS: 0
Open-loop/closed-loop control type:
Open-loop/closed-loop control operating mode: [0] U/f control with linear characteristic
Defaults of the setpoints/command sources:
Macro drive unit: [7] FBw/datSetChg
Drive setting:
IEC/NEMA mot stds: [0] IEC-Motor (50 Hz, SI units)
Power unit application: [0] Load duty cycle with high overload for vector drives
Motor:
Motor type selection: [17] 1LA7 standard induction motor
Article No.: 1LA7083-4AA60-xxxx
Number of motors connected in parallel: 1
Rated motor voltage: 400 Vrms
Rated motor current: 1.88 Arms
Rated motor power factor: 0.75 kW
Rated motor power factor: 0.800 s
Rated motor power: 50.00 Hz
Rated motor speed: 1395.0 rpm
Motor cooling type: [0] Non-ventilated
Important parameters:
Current limit: 2.82 Arms
Maximum speed: 0.000 rpm
Maximum speed: 1500.000 rpm
Ramp-function generator ramp-up time: 10.000 s
Ramp-function generator ramp-down time: 10.000 s
OFF3 ramp-down time: 0.000 s
Drive functions:
Motor data identification and rotating measurement: [0] Inhibited
Automatic calculation, motor/control parameters: [1] Complete calculation
