3.2 Basic parameter configuration regarding SINAMICS V90 PN
Speed control with SINAMICS V90 and S7-300 via Profinet
Entry-ID: 109743898, V1.0, 07/2016
Siemens AG 2016 All rights reserved
3.2.3.3 Connect SINAMICS V90 PN with S7-300 CPU
After the configurations of both SINAMICS V90 PN and S7-300 CPU, you need to connect
SINAMICS V90 PN to S7-300 CPU in the network view.

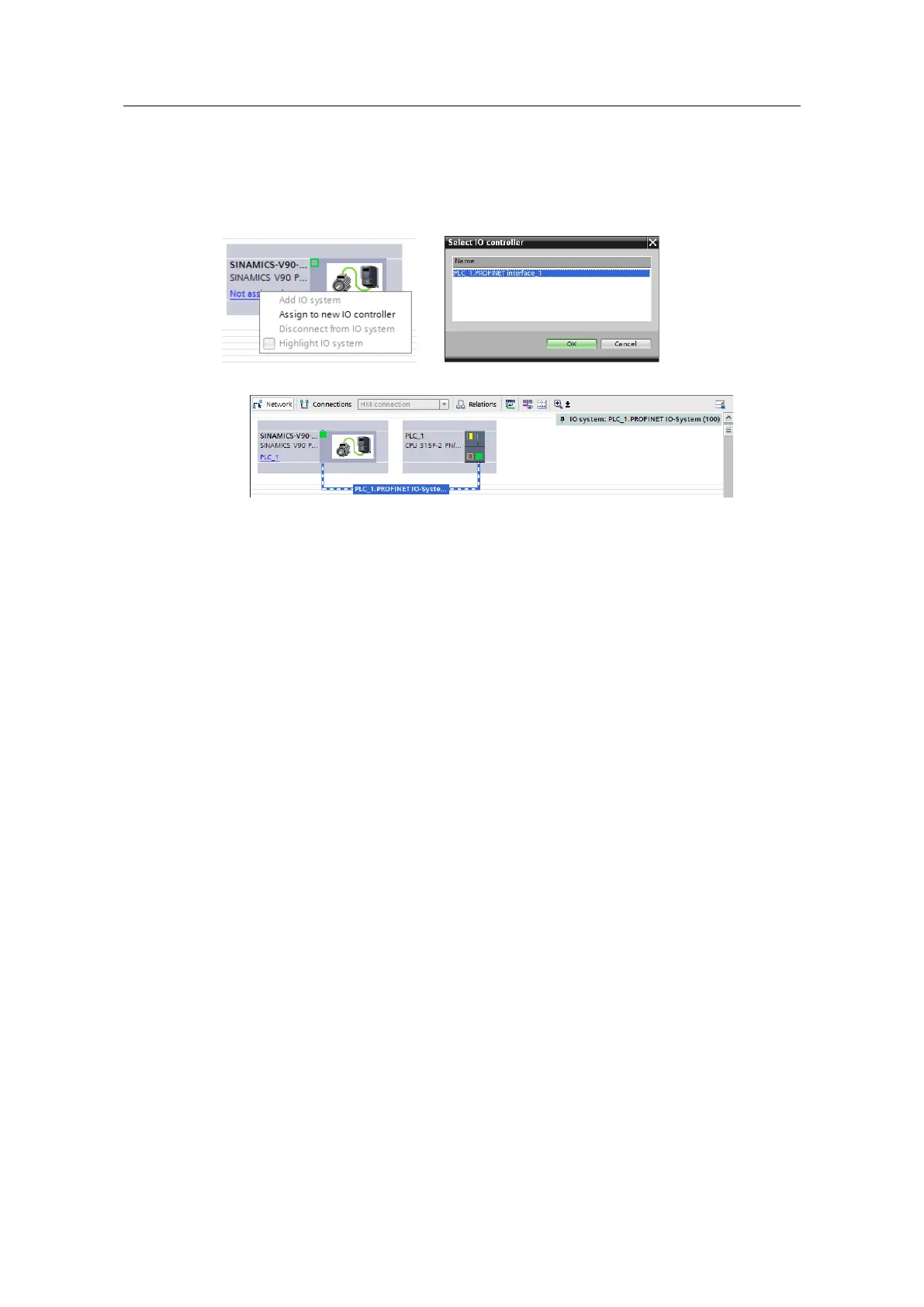

1. Right-click the “Not assign”:
2. And the connected network view is shown as follows:
