Installing the Control System
SINUMERIK 802S base line
2-3
Start-Up
1) Thread plugging M4 or ø5 hole (8x)

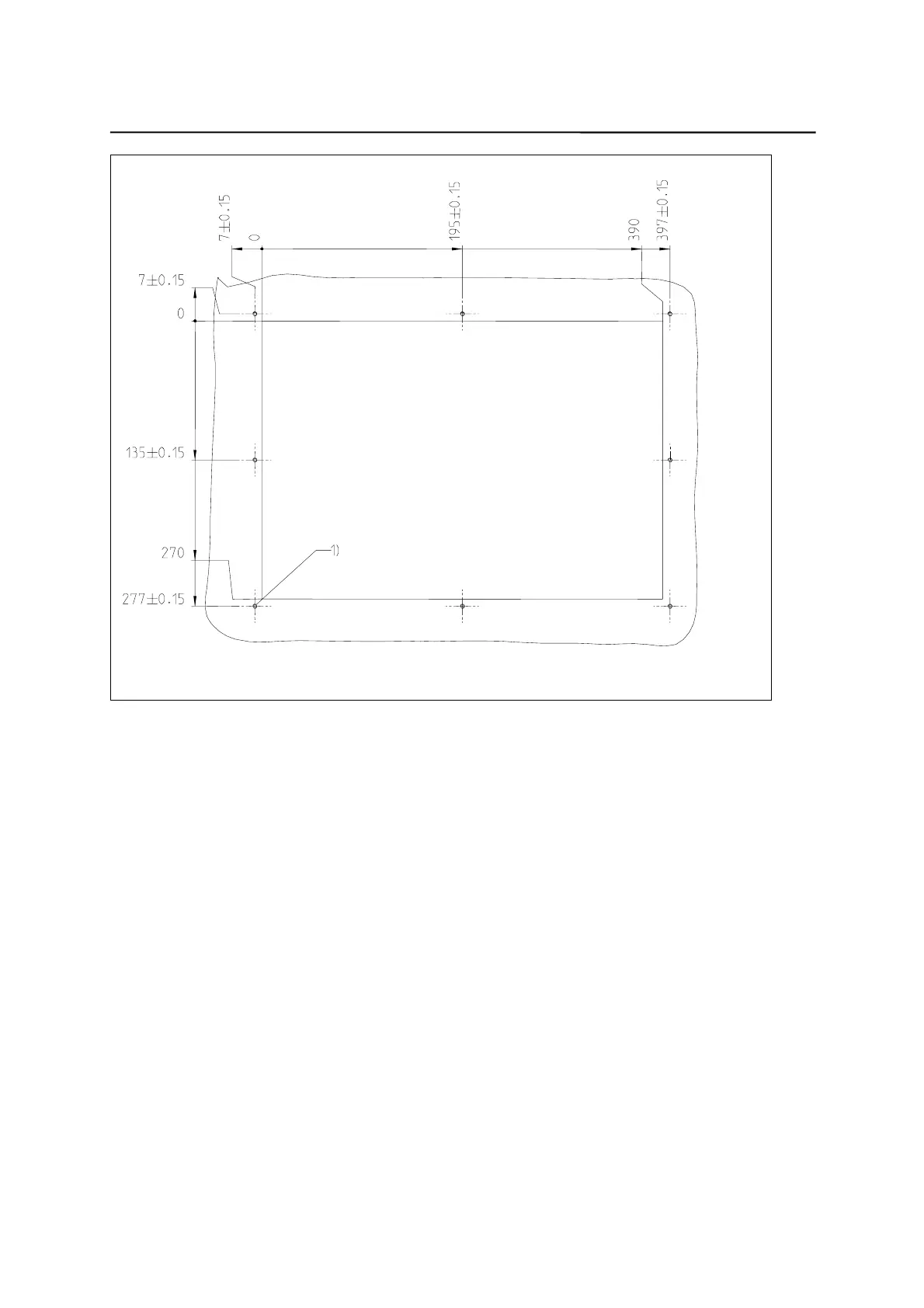

Fig. 2-2 Mounting dimensions for 802S base line
