Start-Up
4-26
SINUMERIK 802S base line
Start-Up

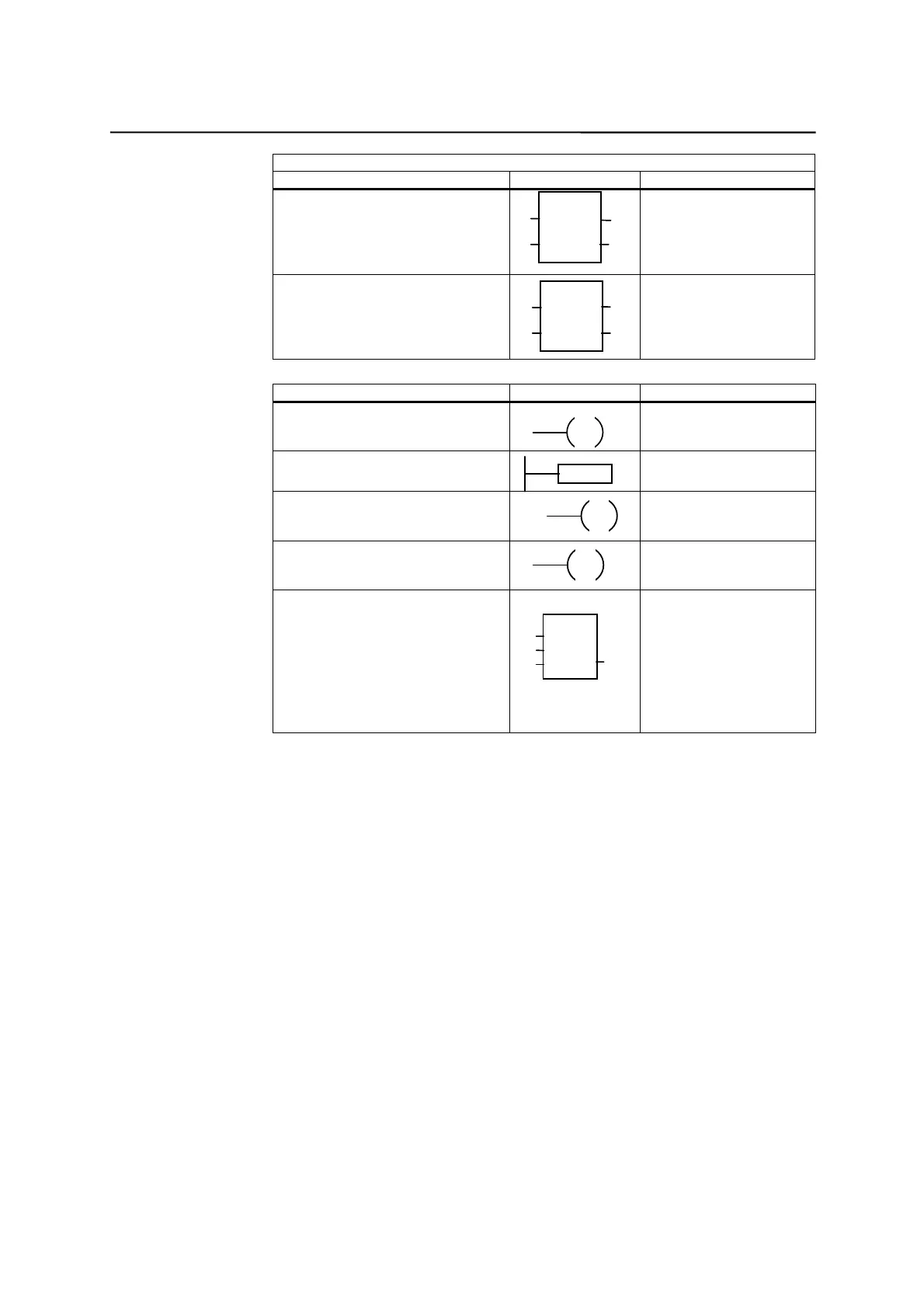

CONVERSION OPERATIONS
Instruction Ladder Symbol Valid Operands
Convert Double
Word Integer to
a Real
If EN = 1, convert
the double word
integer i to a real
number o.
DI_REAL
IN
OUT
EN
ENO
Enable: EN
In: VD, ID, QD, MD, AC,
Constant, LD
Out: VD, ID, QD, MD, AC,
LD
Convert a Real
to a Double
Word Integer
If EN = 1, convert
the real number i
to a double word
integer o.
TRUNC
IN
OUT
EN
ENO
Enable: EN
In: VD, ID, QD, MD, AC,
Constant, LD
Out: VD, ID, QD, MD, AC,
LD
Instruction Ladder Symbol Valid Operands
Jump to Label If EN = 1, go to
label n.
n
JMP
Enable: EN Label:
WORD: 0-127
Label Label marker for
the jump.
LBL
n
Label: WORD: 0-127
Conditional
Return from
Subroutine
If EN = 1, exit the
subroutine.
RET
Enable: EN
Conditional End If EN = 1, END
terminates the
main scan.
END
Enable: EN
Subroutine
If EN
, go to
subroutine n.
SBR
x1
x2
x3
EN
n
(x... optional parameters)
Label: Constant : 0-63
