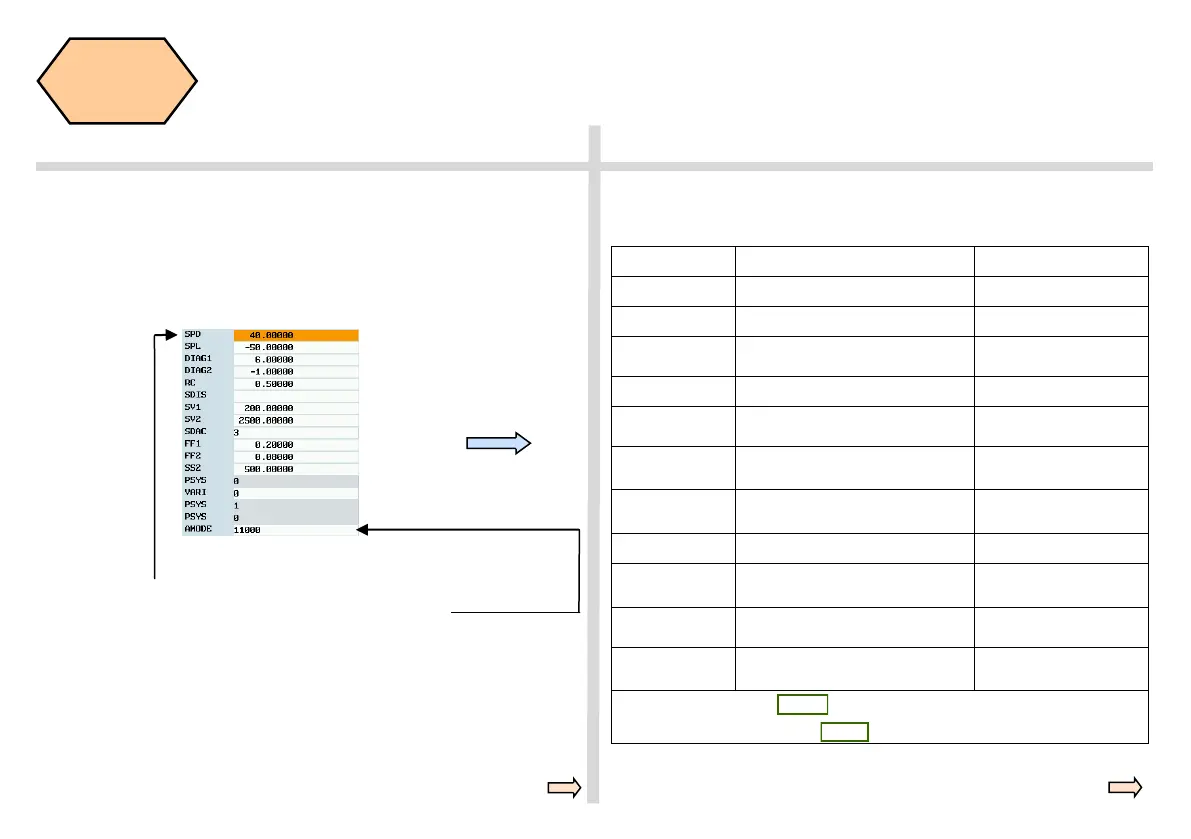

Programming and Operating Turning Page 48 808D ADVANCED
Create Part
Program
Part 2
s
Parameters Meanings Remarks
DING1 The speed is reduced at depth of 6 mm
DING2
When cutting off the final depth is 1 mm
RC Width of reverse angle is 0.5 mm Or can be set as the radii of
reverse circle
SV1 Fixed cutting speed is 200 mm/min
SV2 Maximal spindle speed during fixed cutting
is 2500 r/min
SDAC=3 Spindle rotation direction is M3 SDAC=4→spindle rotation
direction M4
FF1=0.2 Depth feedrate when reaching the reduced
speed (DING1)
FF2=0.08 DING2 feedrate is 0.08 mm/min
SS2=500
Reduced spindle speed (until final depth)
is 500 r/min
VARI=0 Retract to the position defined by
SPD+SDIS
VARI=1no retraction
AMODE=11000 Machining shape is reverse angle AMODE=10000 → reverse
circle
For descriptions of SDIS, see page 50
For descriptions of SPD and SPL, see page 47
N350 CYCLE92( 40.00000, -50.00000, 6.00000, -1.00000, 0.50000, ,200.00000,
2500.00000, 3, 0.20000, 0.08000, 500.00000, 0, 0, 1, 0, 11000)
