Main circuit interface (motor side)
Type
Illustration
Signal
Description
Power connector 1FL6 motor:
1PH1 motor:
1: U
Phase U
2: V
Phase V
3: W
Phase W
4: PE Protective earth

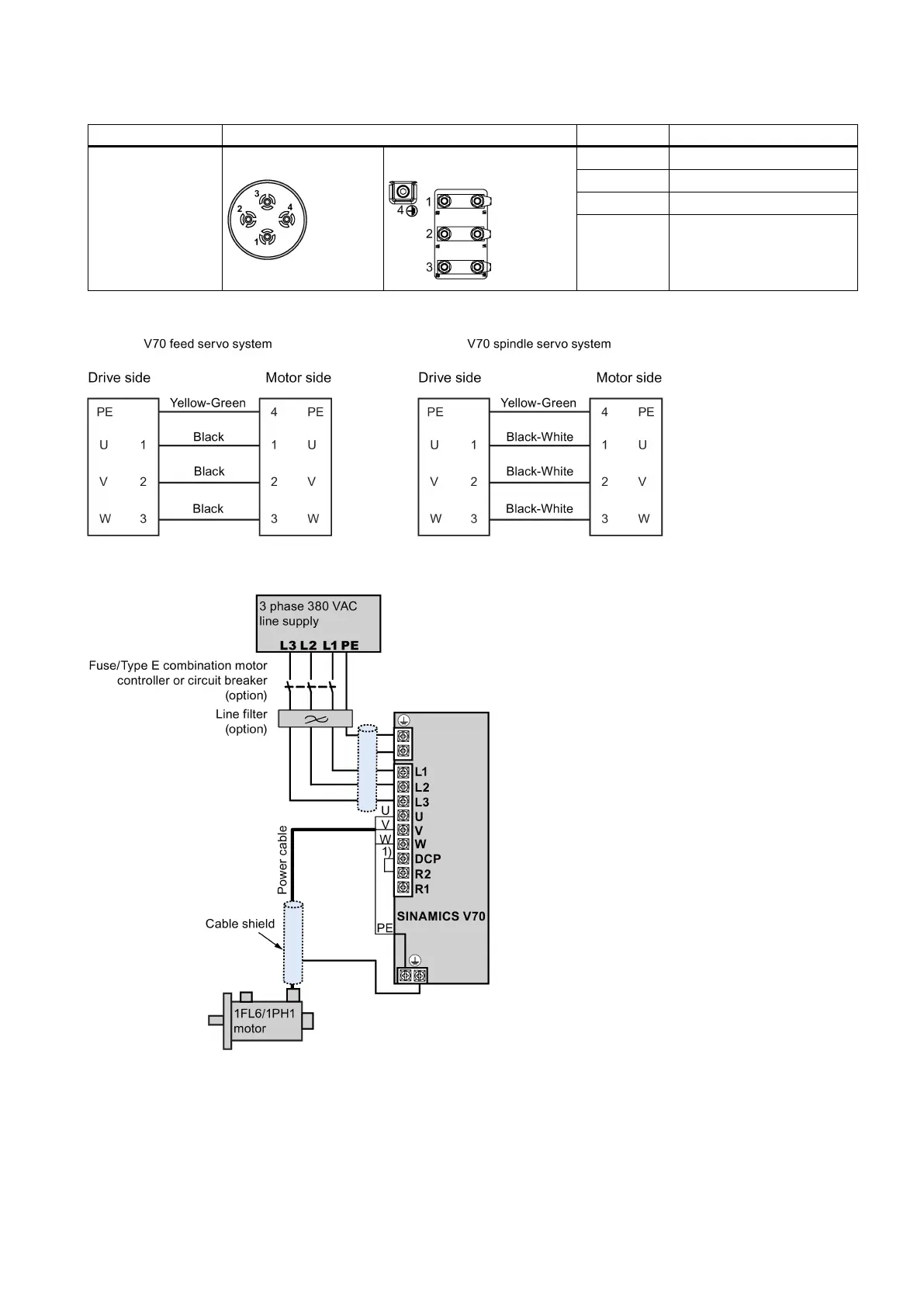

Wiring
Main circuit wiring for SINAMICS V70 FSA/FSB/FSC
1)
A short-circuit stick is available only for the SINAMICS V70 feed drive.
