Commissioning Manual

01/2017

65

3.2.2

Mounting the SINAMICS V60 drive

3.2.2.1

Mounting orientation and clearance

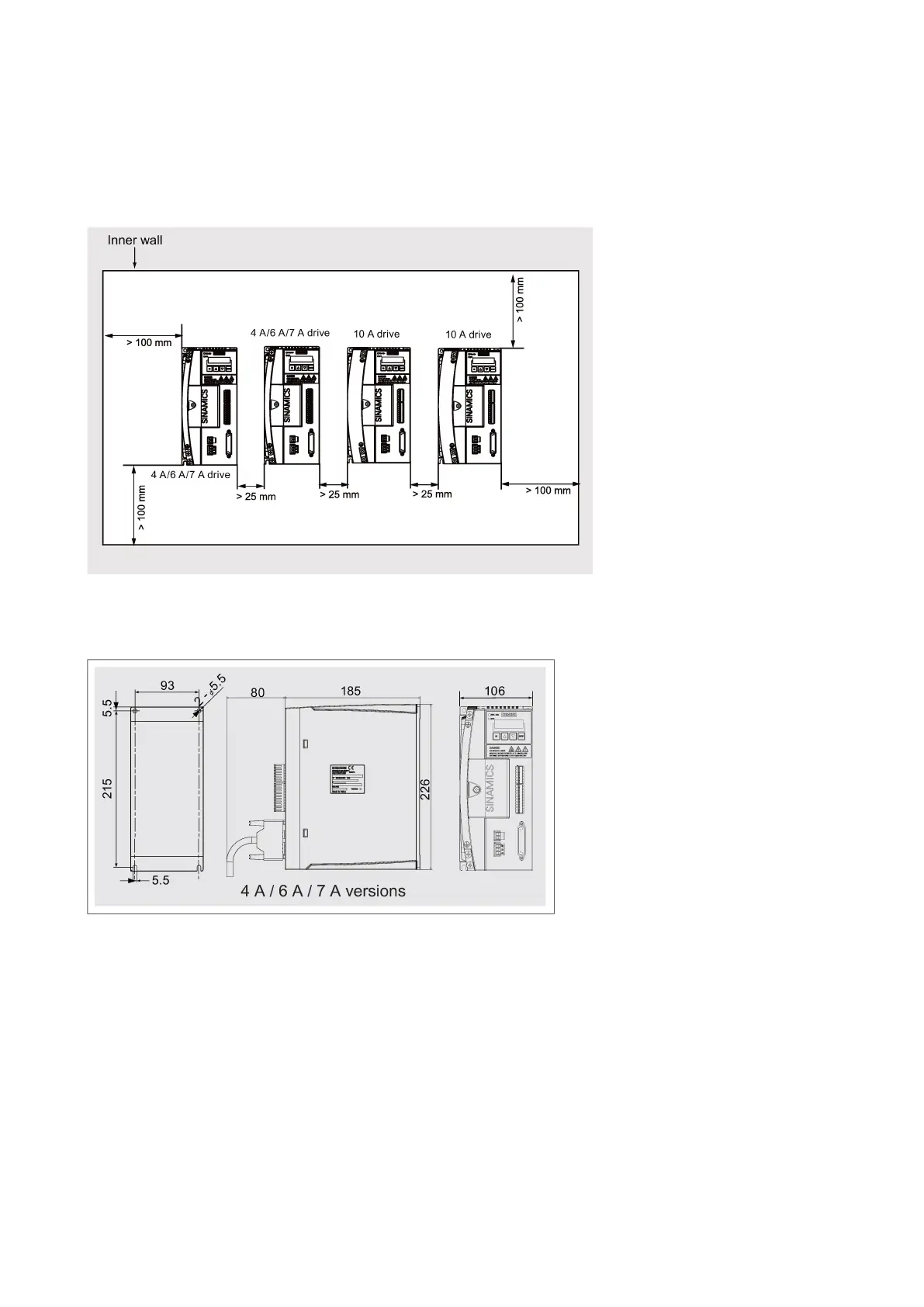

Mount the drive vertically to the back plate of a shielded cabinet (non-painted) and observe the mounting clearances

specified in the illustration below:

3.2.2.2

Drill patterns and outline dimensions

4 A/6 A/7 A versions
