Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
66 01/2017
10 A version
3.2.2.3

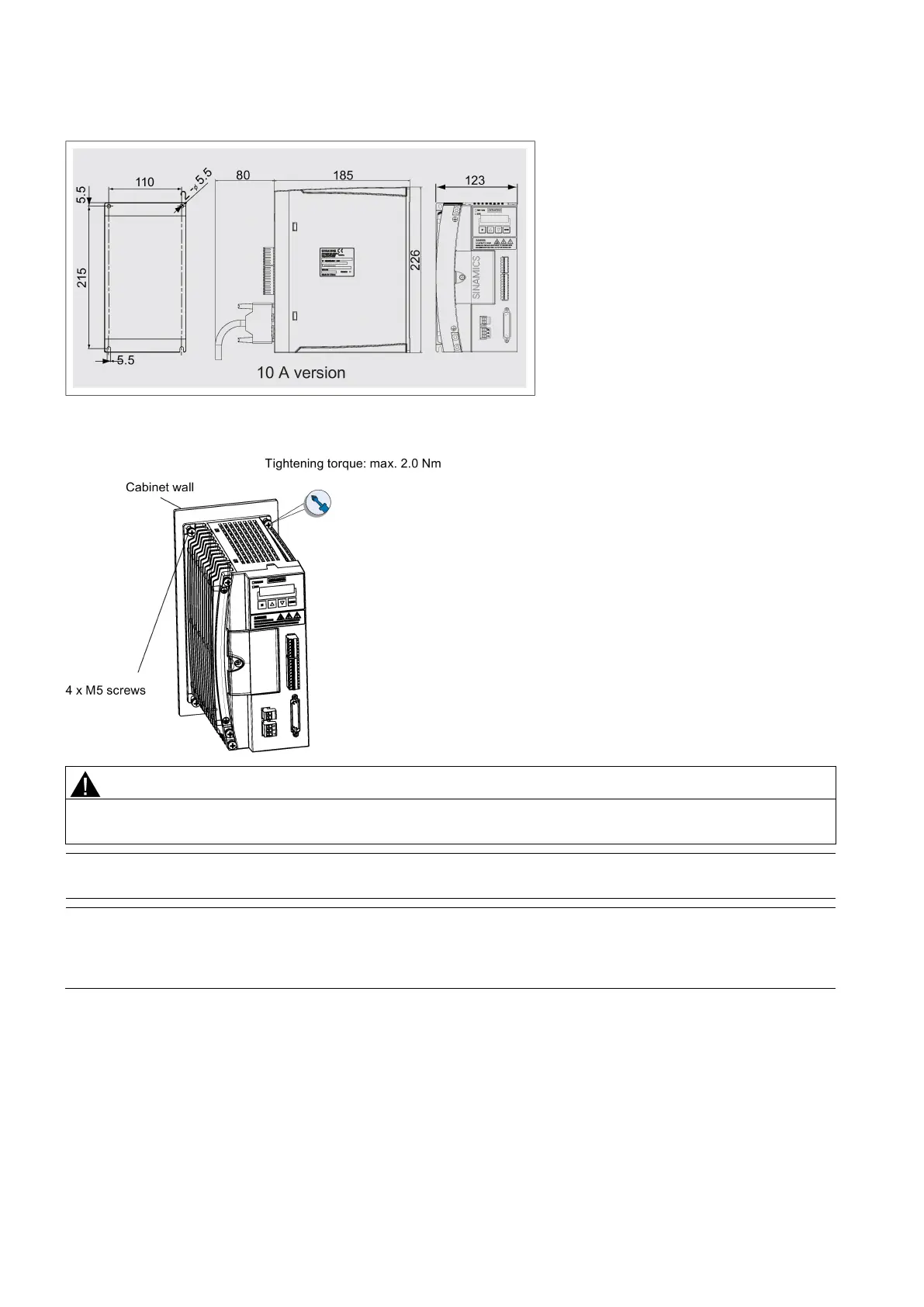

Mounting the drive
CAUTION
Shielding layer
Make sure that the clamp for fixing the shielded power cable is in close contact with the shielding layer of the cable.
Note
The drive must be mounted vertically to the cabinet wall, with the ventilation openings of the drive pointing upwards.
Note
A
fter the drive installation is complete, make sure that you tighten the screw on the terminal door of the drive.
Siemens does not provide the shielded power cable. Please prepare the shielded power cable by yourselves for CE
certification.
