Commissioning Manual
01/2017
115
For more information about the 24 VDC power supply, see Section "External 24 VDC power supply (Page 29)".
Material damages and personal injuries by the drop of a hanging axis
When the servo system is used as a hanging axis, the axis will drop if the positive and negative poles of the 24 V power
supply are connected inversely. Unexpected drop of the hanging axis may cause material damages and personal injuries.
Make sure that the 24 V power supply is correctly connected.
Material damages and personal injuries by the drop of a hanging axis
It is not allowed to use the STO with a hanging axis because the axis may drop. Unexpected drop of the hanging axis may
cause material damages and personal injuries.
Note
Using the STO function
The STO1, STO+ and STO2 are short
-circuited at the factory.
When the STO function is to be used, you must remove th
e short-circuit stick before connecting the STO interfaces. The
safety function of the servo drive is SIL 2 (EN61800
-5-2). If you do not need to use it any more, you must reinsert the short-
circuit stick. Otherwise, the motor will not run.

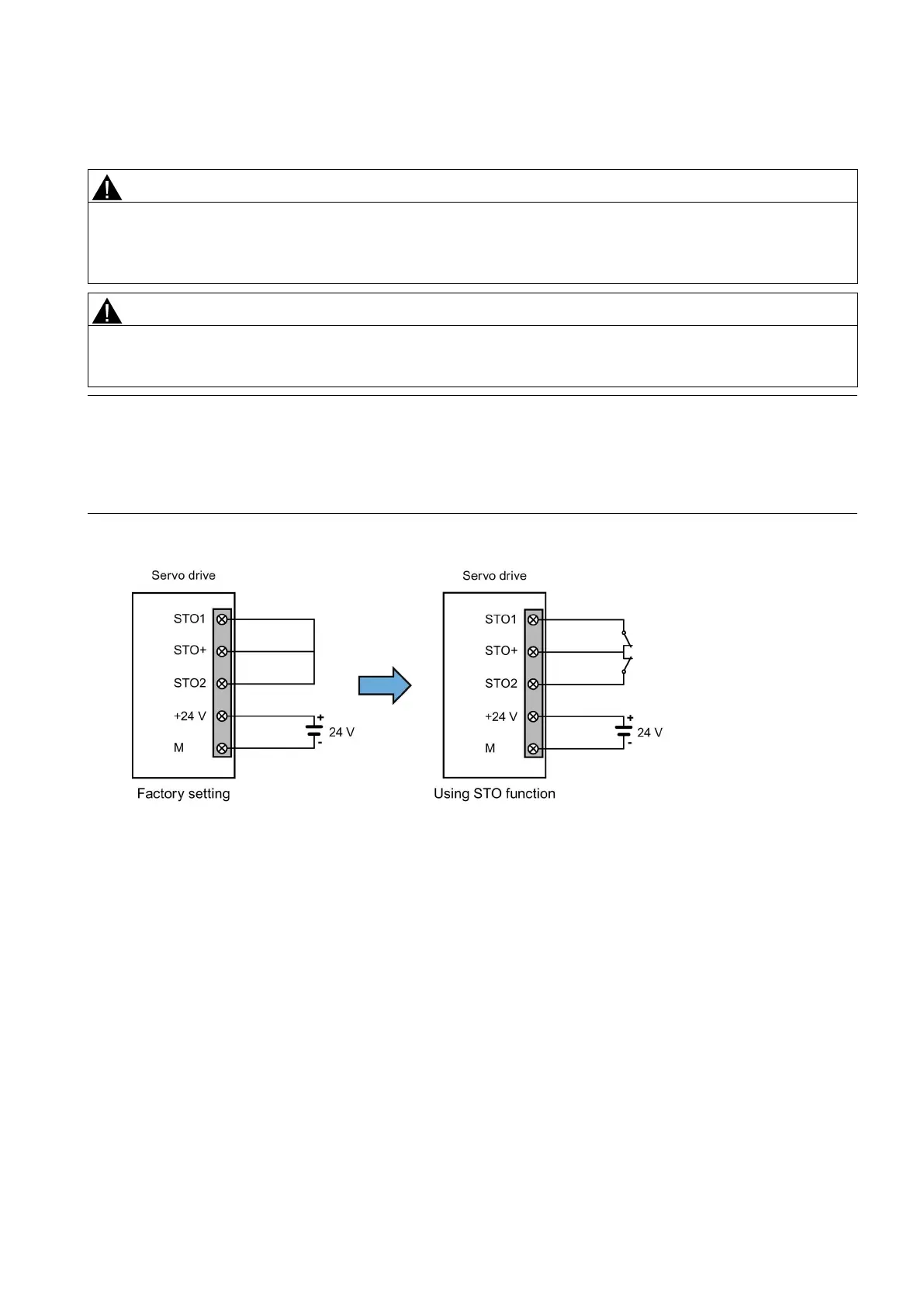

The wiring for factory setting and using the STO function is shown as follows:
